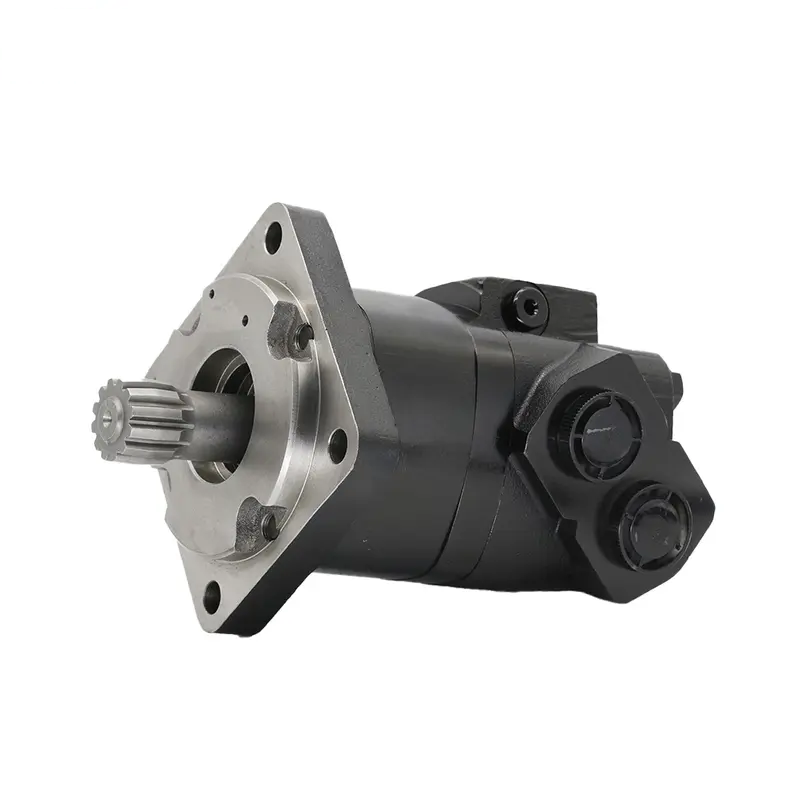

BM6S Cycloidal Motor

2 month ago

9 0 

4 year

Product details

BM6S Cycloidal Motor Product Analysis

The BM6S is a cycloidal hydraulic motor employing advanced shaft-distribution technology, representing a typical Hydraulic orbit motor. Compared to the basic models in the same series, it features a reinforced design in terms of displacement steps and pressure carrying capacity, enabling it to deliver continuous, stable, high torque at low speeds to a hydraulic system across a wider range of operating conditions, meeting the dual demands for power and smoothness in medium-to-heavy-duty drive tasks.

Operating Principle

This Hydraulic orbit motor operates through an internal meshing pair between the stator and the cycloidal rotor. High-pressure oil from the hydraulic system is precisely distributed to the rotor chambers by the shaft-distribution valve, causing the rotor to roll planetarily around the stator. The resulting orbital motion is then converted by a drive link into low-speed rotation of the output shaft. Because the oil chamber volumes change continuously and the superimposed loads are uniform, the motor maintains minimal pulsation even at extremely low speeds, ensuring highly controllable actuator movements in the hydraulic system.

Main Performance Parameters

· Displacement Range: Typically covers various specifications from 80 to 500 mL/rev, facilitating flexible matching according to the flow and torque requirements of the hydraulic system.

· Rated Pressure: Continuous operating pressure is approximately 14–20 MPa, with higher peak pressure capability, adapting to the demanding requirements of medium and high-pressure hydraulic systems.

· Speed Range: Rated speed is generally 10–180 rpm; some applications allow stable operation as low as 5 rpm, fully leveraging the ultra-low-speed smoothness advantage of the Hydraulic orbit motor.

· Output Torque: Calculated based on displacement and pressure differential, output torque can reach several hundred to over a thousand N·m, competently handling heavy-load starting and continuous driving.

Structural Features and Benefits

· Enhanced Power Density: Compared to other motors of similar dimensions, this Hydraulic orbit motor achieves higher displacement and torque capacity within a compact housing, making it easy to directly drive wheels, winches, or auger mechanisms in space-constrained hydraulic systems.

· High Reliability: Both the stator and rotor undergo special hardening and precision grinding, and the shaft-distribution surfaces feature automatic gap compensation. This resists a certain degree of particulate contamination in the hydraulic system while maintaining stable volumetric efficiency.

· Flexible Installation: The standard flange and shaft extension design allow this Hydraulic orbit motor to be rapidly integrated into series or parallel hydraulic systems without the need for complex drive chains.

Typical Application Scenarios

Leveraging its low-speed, high-torque, and high-pressure-resistance characteristics, the BM6S Hydraulic orbit motor is widely adapted to various mobile and stationary hydraulic systems, such as:

· Construction machinery: vibratory drum drive for small rollers, rotation of auger drills

· Agricultural equipment: reel drive on combine harvesters, fertilizer augers

· Special vehicles: auxiliary travel drive for skid-steer loaders, mining rock drilling equipment

· Fishery and forestry machinery: net haulers, wood debarking drums, etc.

Selection and Considerations for Application in a hydraulic system

When designing a hydraulic system, the displacement specification of the BM6S should be selected based on the actual load torque and expected speed, and the return line should be properly routed to limit back pressure, avoiding any adverse effects on the sealing and efficiency of this Hydraulic orbit motor. When used for inertial loads or gravity-lowering conditions, it is recommended to install a counterbalance valve or a dual crossover relief valve in the circuit to adequately protect the hydraulic system and the motor itself from shock damage.

BM6S Cycloidal Motor: Technical Analysis and Applications in Hydraulic Orbit Motors and Hydraulic Systems

The BM6S cycloidal motor is a low-speed, high-torque hydraulic motor based on the principle of internal meshing cycloidal gearing, falling under the category ofHydraulic Orbit Motors. Its core design utilizes an eccentric interaction between the stator and rotor to form independent sealed chambers, with a distribution shaft facilitating hydraulic fluid inlet and outlet switching to efficiently convert hydraulic energy into mechanical energy. This motor excels inhydraulic systems (hydraulic system), particularly in high back-pressure, heavy-load applications requiring stable low-speed operation.

------

Technical Features

1. High Back-Pressure and Pressure Resistance

• The BM6S motor employs atooth-embedded stator-rotor designandspecialized rotary seals, enabling it to withstand system pressures up to 16–25 MPa (with some models reaching 30 MPa), suitable for long-term operation in high-pressure hydraulic systems.

• For example, in mining machinery for crusher drives, the BM6S operates at 20 MPa continuously, with its sealing design effectively preventing fluid leakage and extending service life.

2. Low-Speed Stability and High Torque Output

• The output shaft completes 72 chamber changes per revolution, achieving smooth rotation at low speeds (5–800 RPM), with a minimum stable speed of 5 RPM.

• Torque ranges from 89–2,650 N·m, meeting the starting and load demands of heavy-duty equipment. For instance, in injection molding machines for mold opening/closing mechanisms, the BM6S provides high torque to ensure precise mold positioning with an error margin of ±0.05 mm.

3. Compact Structure and Lightweight Design

• Compared to gear motors of the same displacement, the BM6S reduces volume by 40% and weight by 30%, facilitating integration into space-constrained hydraulic systems.

• For example, in agricultural machinery for harvester drives, its compact design allows direct installation at the end of robotic arms, minimizing transmission links and improving system efficiency.

4. High Efficiency and Long Service Life

• Mechanical efficiency exceeds 85%, with volumetric efficiency reaching 92%, minimizing energy loss.

• Thedouble-tapered roller bearingdesign enhances lateral load capacity by 50%, making it suitable for frequent bidirectional operation and shock-load conditions. For instance, in crane slewing mechanisms, the BM6S withstands lateral forces up to 10 kN, with a lifespan exceeding 10,000 hours.

------

Applications in Hydraulic Systems

1. Construction Machinery

• Excavator Slewing Mechanisms: The BM6S provides low-speed, high-torque output for smooth slewing platform startup and precise positioning, reducing energy consumption by 15%.

• Drilling Rig Drives: In geological exploration, the BM6S operates at 25 MPa to drive drill bits, with its pressure-resistant design ensuring system reliability and reducing failure rates by 40%.

2. Industrial Automation

• Robot Joints: The BM6S’s lightweight design (9.8–14 kg) makes it ideal for six-axis robot joints, enabling high-precision motion control with a repeatability accuracy of ±0.02 mm.

• CNC Machine Tool Feeds: In CNC milling machines, the BM6S drives worktable feeds via hydraulic systems, offering a speed range of 5–200 RPM to meet roughing and finishing requirements.

3. Renewable Energy

• Wind Turbine Pitch Systems: The BM6S operates across a wide temperature range (-20°C to 80°C), adjusting blade angles to improve power generation efficiency by 3%.

• Solar Tracker Mounts: Driven by hydraulic systems, the BM6S ensures photovoltaic panels remain aligned with the sun, increasing daily energy output by 10%.

------

Synergistic Advantages with Hydraulic Orbit Motors

As a type of Hydraulic Orbit Motor, the BM6S can collaborate with other orbit motors (e.g., BMP series) in complex hydraulic systems:

• Complementary Applications: In excavator hydraulic systems, the BM6S powers slewing mechanisms (low-speed, high-torque), while BMP series motors drive travel mechanisms (high-speed, light-load), enhancing overall efficiency.

• System Optimization: By paralleling or serializing BM6S motors, hydraulic systems can flexibly allocate flow to meet synchronous or sequential operation demands of multiple actuators.
