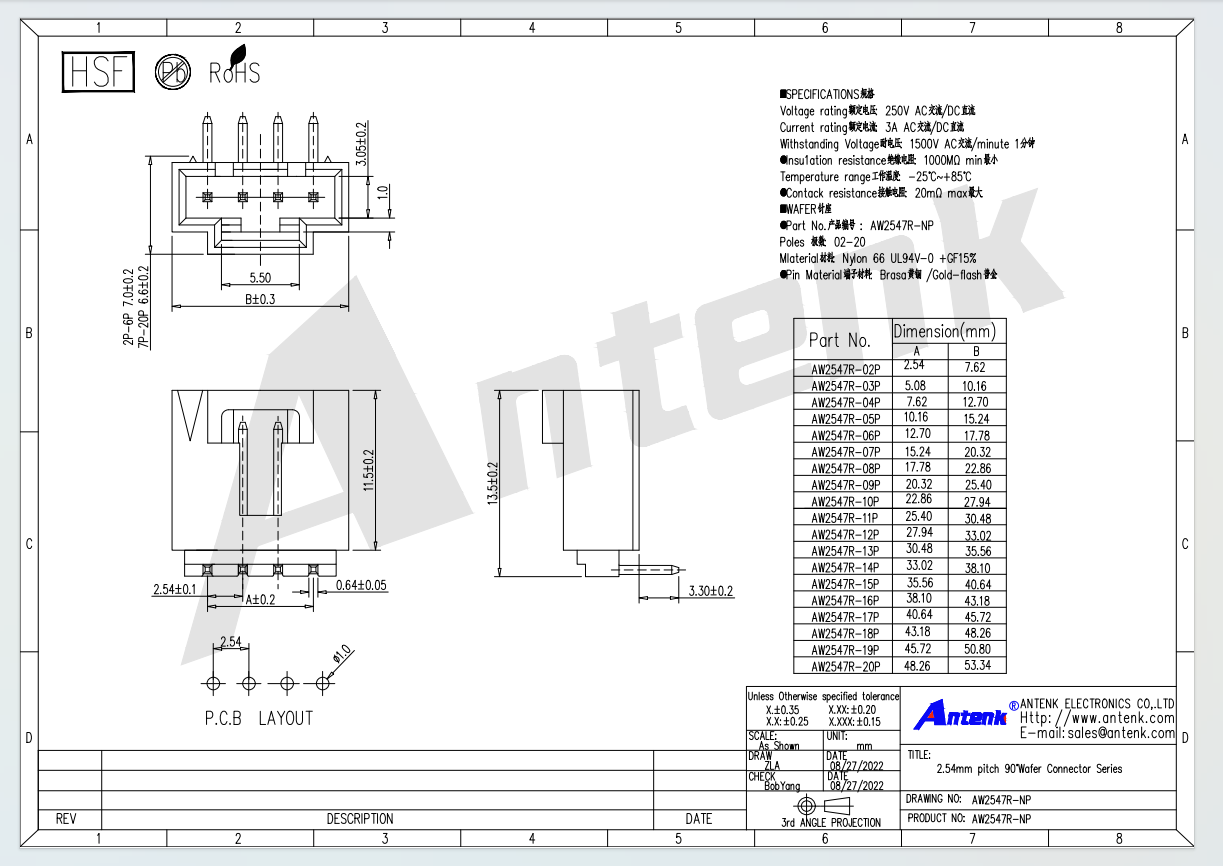

The 2.54mm pitch 90-degree Wafer Connector Series launched by Antenk supports flexible pole options ranging from 2 poles to 20 poles to meet diverse circuit connection demands. This connector is rated at 250V AC DC rated voltage and 3A rated current, with a 1500V AC DC one minute withstand voltage, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, ensuring stable signal and power transmission within the operating temperature range from minus 25 degrees Celsius to plus 85 degrees Celsius. The insulating housing adopts Nylon 66 material with UL94V 0 flame retardant grade and 15 percent glass fiber filling, while brass terminals with gold flash plating effectively resist oxidation and guarantee long term stable electrical conduction. Users only need to solder the straight pins to the corresponding PCB pads following the standard PCB layout specification, then insert the matching wire harness connector to complete circuit connection. Users must strictly follow the rated electrical parameters during application, avoid overload voltage and current, and prevent long term use beyond the designated temperature range to avoid insulation aging and terminal corrosion.
Compared with other connector manufacturers, Antenk boasts prominent competitive advantages relying on complete vertical industrial chain layout and high standard quality management systems. Founded in 2007, our enterprise owns independent mold research and development workshops, terminal stamping workshops, injection molding workshops and automatic assembly production lines equipped with imported high precision production and testing equipment. We hold UL certification numbered E472792, ISO9001, ISO14001 and IATF16949 automotive grade quality system certifications, all products comply with RoHS and REACH environmental regulations. We can provide customized pole count, surface plating and packaging solutions, with more than ten thousand connector specifications available for selection. Over seventy percent of our products are exported to global markets, our brand ANTENK has been awarded Guangdong Famous Trademark, delivering stable and reliable customized service for global buyers.
This wafer connector follows standardized and rigorous production procedures. The whole process includes precision mold design and manufacturing, incoming raw material inspection, high speed stamping of brass terminals, gold flash surface plating treatment, nylon material injection molding for insulating housing, automatic terminal assembly and locking detection, electrical performance testing including insulation resistance and voltage withstand verification, high and low temperature aging reliability test, strict visual inspection and standardized packaging. Widely applied in liquid crystal display devices, digital cameras, industrial control equipment, digital home appliances, computer peripheral products, automotive electronics, precision instruments and communication equipment, this 90-degree wafer connector achieves stable line to board electrical connection, serving as a reliable connecting component for various electronic equipment.
