Dual Row 2.54mm Female Header Angle Type H:8.5

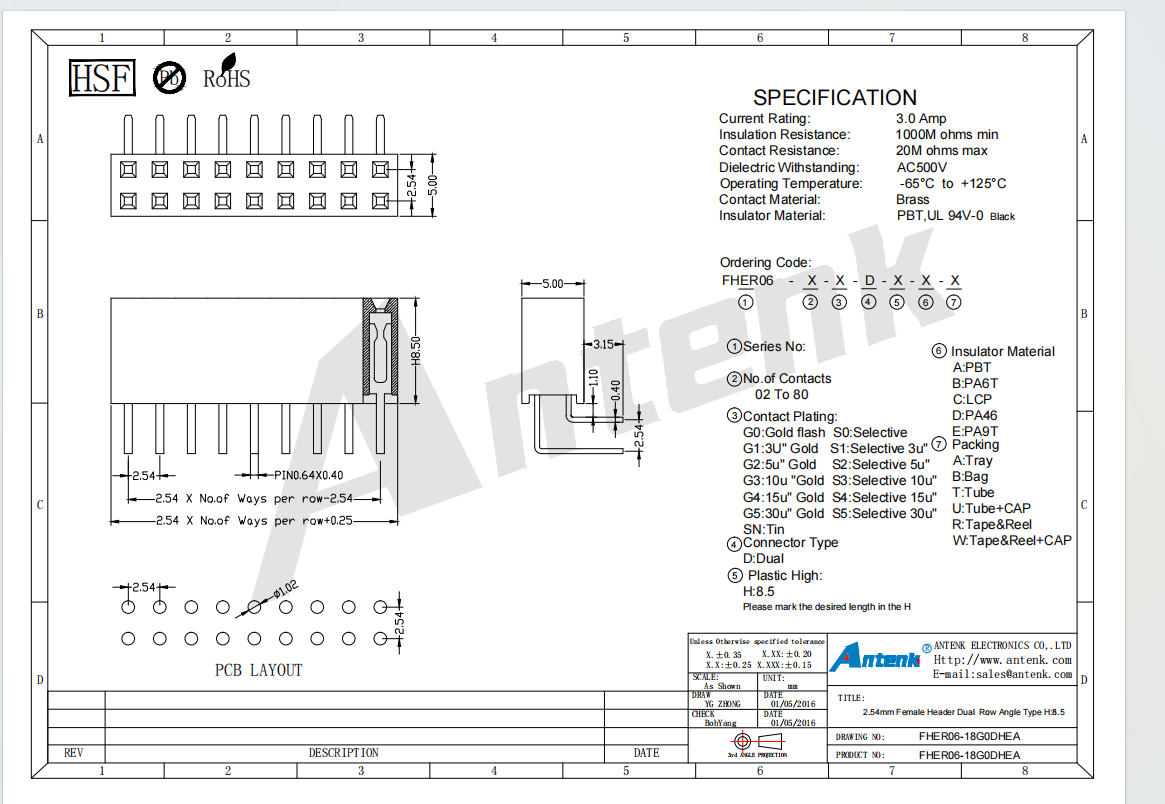

Antenk launches the 2.54mm Dual Row Right Angle Female Header with 8.5mm plastic height, a professional wire-to-board connector engineered to achieve stable power supply and signal transmission between printed circuit boards and wiring assemblies. In terms of core product features, this connector carries a 3.0 Amp rated current, supports AC500V dielectric voltage withstand, owns a minimum insulation resistance of 1000M ohms and a maximum contact resistance of 20M ohms, and works steadily under a wide temperature range of -65℃ to +125℃. Its conductive terminals are made of high-performance brass, while the insulating part adopts black PBT material certified by UL94V-0 flame retardant standard. The product supports customizable pin counts ranging from 2 to 80 pins with multiple selective gold plating specifications to resist terminal oxidation. For standard usage, operators fix this female header onto PCB through through-hole soldering in accordance with our official PCB layout drawing to realize electrical docking with matching male headers. As key usage precautions, users must never apply current and voltage exceeding the rated parameters, store components in dry ventilated warehouses to avoid terminal rust, and install the product within the certified operating temperature range to extend service lifespan.
