Flame Retardant MX 4.20mm 90° Wafer Connector Solution

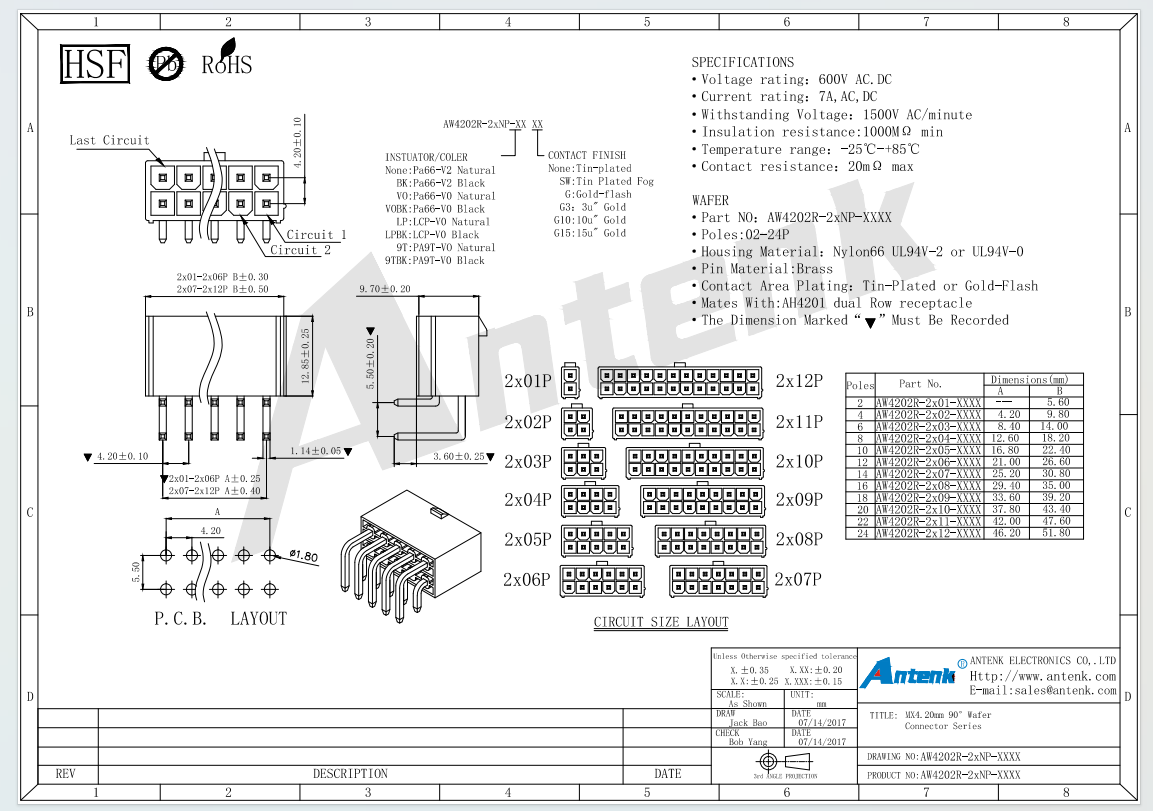

Launched by Antenk, the MX 4.20mm 90-degree Wafer Connector is a professional wire-to-board interconnect component designed to deliver stable power transmission and reliable signal connection between wiring harnesses and printed circuit boards. This product boasts outstanding electrical and environmental performance with a rated voltage of 600V alternating current and direct current as well as a rated current of 7A. It can withstand 1500V high voltage within one minute, features a minimum insulation resistance of 1000 megaohms and a maximum contact resistance of 20 milliohms, and works reliably in the temperature range from minus 25 degrees Celsius to 85 degrees Celsius. Conductive pins are made of high-purity brass, while the insulator adopts nylon 66 material that meets UL94V-0 flame retardant standard, with optional housing colors and pin counts ranging from 2 pins to 24 pins. Multiple surface plating options including tin plating, gold flash and different thickness gold plating are available to resist corrosion and extend service life. For standard operation, users shall solder the connector onto PCB strictly following our official PCB layout drawing and match it with the corresponding dual row receptacle to complete electrical connection. As critical usage notes, users are forbidden to apply voltage and current exceeding rated parameters, store finished connectors in dry and ventilated surroundings to avoid terminal oxidation, and install the product only within the certified operating temperature range.



This 90-degree wafer connector is widely adopted in liquid crystal display devices, industrial control equipment, automotive electronic systems, digital household appliances, communication facilities, precision measuring instruments and consumer electronic toys. The complete production process at Antenk covers independent precision mold design and development, high-speed brass terminal stamping, flame retardant plastic injection molding, automatic connector assembly and comprehensive laboratory reliability testing. Compared with ordinary peer manufacturers, Antenk holds remarkable competitive strengths. Founded in 2007, we run a standardized production base in Dongguan with a total factory area of over 10,000 square meters and more than 250 professional staff members. We are equipped with imported precision punching machines, plastic injection molding equipment and professional testing devices, owning over 430 sets of self-developed precision molds to support more than 10,000 connector specifications for customized demands. Our enterprise qualifies for issuing 13 percent value added tax invoices and holds self-operated import and export rights, with over 70 percent of products exported globally. All our connectors comply with EU RoHS and REACH environmental standards, most items pass UL safety certification, and the factory has obtained ISO9001, ISO14001 and IATF16949 system certifications. Our self-owned brand ANTENK has been awarded Guangdong Famous Trademark for independent technological innovation.



Antenk has built a mature global sales network covering major electronic cities in China and dozens of countries across North America, Europe, Southeast Asia and South America. Every batch of 4.20mm right angle wafer connectors will go through strict insulation, voltage resistance and temperature cycling inspections before delivery to guarantee stable and consistent quality. Supported by 180 sets of automatic assembly machines and professional engineering as well as quality assurance teams, we can flexibly customize pin positions, housing colors and surface plating solutions to meet diversified client requirements. With years of experience in connector and wiring harness manufacturing, Antenk keeps supplying high-quality, environmentally compliant and cost-effective interconnect solutions for global electronic manufacturers, winning long-term recognition and trust from worldwide business partners through strict quality control and reliable after-sales service.
