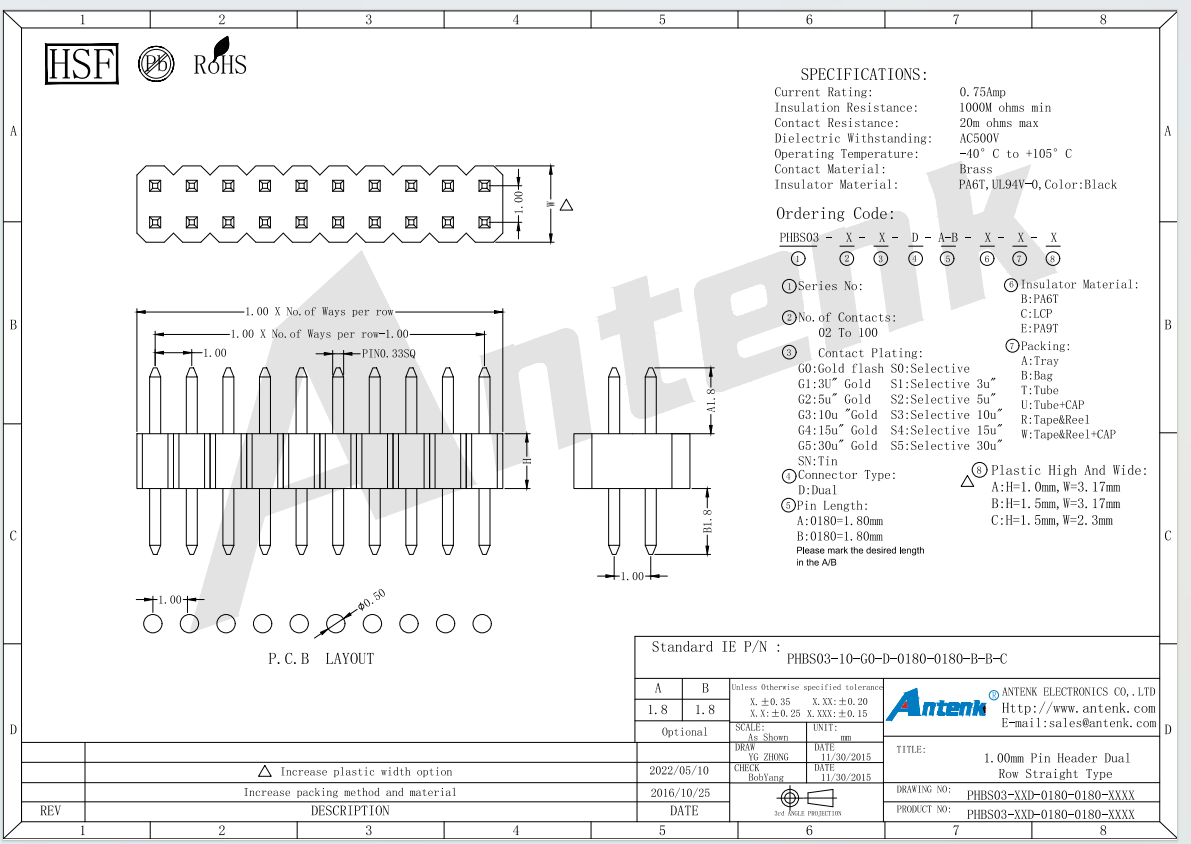

1.00mm Pin Header Dual Row Straight Type

Antenk’s 1.00mm Dual Row Straight Pin Header serves as a compact wire-to-board and board-to-board connecting component that achieves stable low-current power supply and high-precision signal transmission on miniature electronic circuit boards. This connector features reliable electrical performance with a rated current of 0.75 Amp, minimum insulation resistance of 1000 megaohms, maximum contact resistance of 20 milliohms and AC 500V dielectric withstand capability. It can operate stably within a wide temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Conductive pins are manufactured from high-quality brass, while the insulating housing adopts black PA6T material complying with UL94V-0 flame retardant standard. The product supports customizable contact positions ranging from 2 pins to 100 pins, with multiple contact surface finishing options including tin plating, full gold plating and selective gold plating of various thicknesses. Different pin lengths, plastic housing dimensions and diverse packaging types are also available to match diverse PCB design demands. During installation, users need to solder the pins onto printed circuit boards strictly following our official recommended PCB layout to form firm electrical connection. For safe application, users should never exceed the rated electrical parameters, store components in dry and dust-free warehouses to avoid terminal oxidation, and deploy this pin header only within the certified operating temperature range to extend its service lifespan.



This miniature pitch pin header is widely used in industrial control modules, liquid crystal display equipment, digital cameras, communication devices, portable storage products, smart home appliances, electronic toys, computer peripherals and precision testing instruments. The complete production process of this product at Antenk includes independent precision mold design and development, high-speed brass terminal stamping, flame retardant plastic injection molding, automatic connector assembly and multi-dimensional reliability testing in professional laboratories. Compared with most competing manufacturers, Antenk has prominent competitive advantages. Founded in 2007, our company owns a 10000-square-meter production base in Dongguan with more than 250 experienced employees. We are equipped with imported high-precision stamping machines, plastic injection molding equipment and over 430 sets of self-developed precision molds, capable of supplying more than 10000 connector specifications for customized demands. Our enterprise is qualified to issue 13 percent VAT invoices and holds self-operated import and export rights, with over 70 percent of our products exported globally. All products comply with EU RoHS and REACH environmental standards, most products have obtained UL safety certification, and our factory has passed ISO9001, ISO14001 and IATF16949 management system certifications. Our proprietary ANTENK brand has won the honor of Guangdong Famous Trademark through continuous independent technological innovation.



Antenk has built a comprehensive global sales network covering major electronic hubs in China and dozens of regions across Europe, Southeast Asia, North America and South America. Every batch of 1.00mm dual row straight pin headers will undergo strict insulation, voltage resistance and temperature cycling tests before delivery to guarantee consistent stable quality. Supported by professional engineering and quality assurance teams as well as 180 sets of automatic assembly machines, we can flexibly customize pin count, plating type, housing size and packaging method to meet differentiated customer requirements. Relying on strict quality control systems and customer-oriented service philosophy, Antenk has earned long-term trust from worldwide electronic manufacturers, delivering cost-effective, environmentally compliant and high-precision interconnect solutions for miniature electronic equipment all over the globe.
