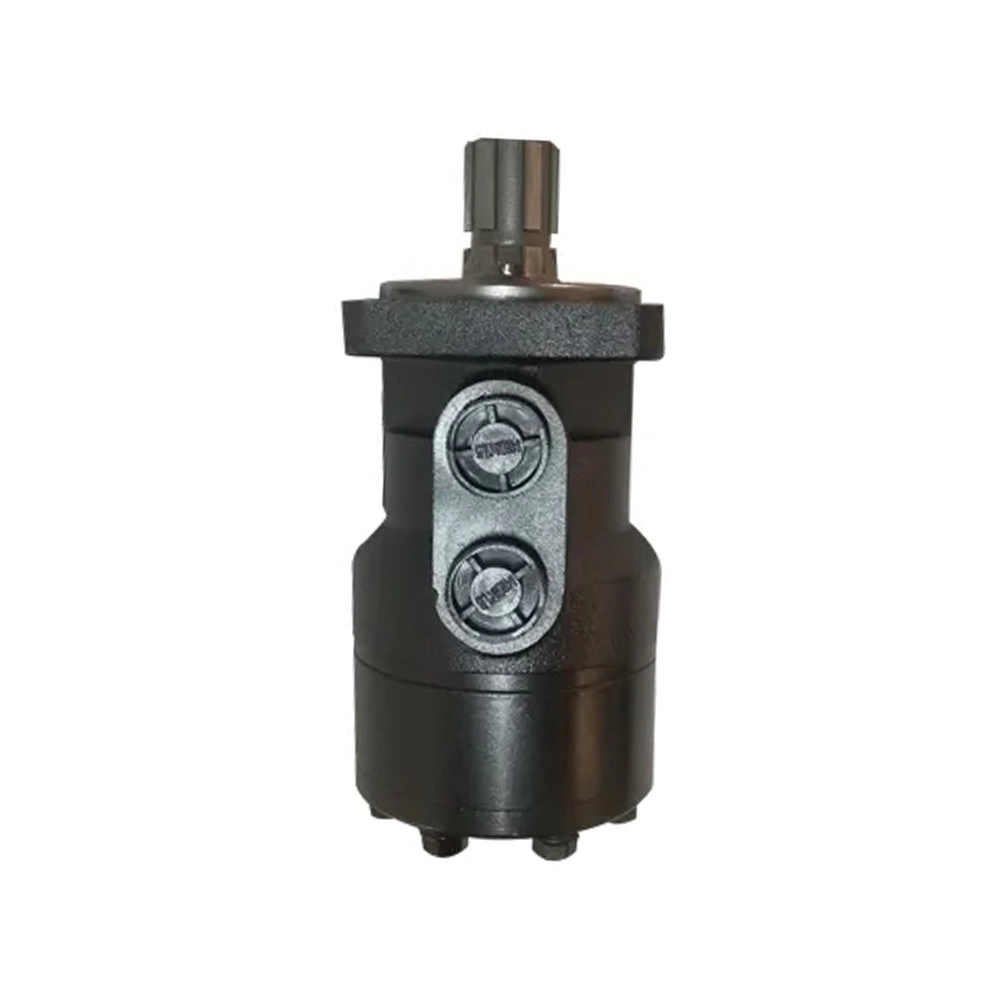

BM1 Cycloidal Motor
4 week ago
Product details
1. Basic Product Definition
The BM1 Cycloidal Motor is a classic series of cycloidal hydraulic motors, a well-established Hydraulic orbit motor. It converts hydraulic energy into mechanical energy efficiently through an internal-gerotor meshing structure, serving as a core power actuator for low-speed heavy-load scenarios in small and medium-sized hydraulic system.
2. Core Structure & Working Principle
Core Structure
It adopts a shaft-distributed flow design with an inserted-pin cycloidal rotor-stator assembly, built-in automatic wear compensation devices and bidirectional relief valves. Its output shaft is fitted with heavy-duty bearings to withstand combined axial and radial loads, with no external drain line required. The compact and lightweight body suits installation in confined equipment spaces.
Operation Mechanism
High-pressure oil delivered by the hydraulic system enters the motor's working chambers, driving the rotor to perform eccentric orbital revolution inside the stator, and the motion is converted into low-speed high-torque rotation of the output shaft via the transmission assembly. Rolling pins reduce meshing friction to improve mechanical efficiency remarkably. Forward and reverse rotation can be easily achieved by adjusting the oil flow direction of the hydraulic system.
3. Key Performance Advantages (Consistent with General Features of Hydraulic orbit motor)
- Native low-speed high-torque performance: Operating speed ranges from 10 rpm to 750 rpm, generating powerful torque without additional reducers. It features low starting pressure, smooth startup and shutdown, and strong overload resistance for continuous heavy-duty operation.
- Excellent system compatibility: It can be connected in series or parallel within a hydraulic system, matching the pressure range of conventional hydraulic pump stations. Its optimized sealing structure tolerates high backpressure for flexible pipeline arrangement.
- Durability & easy maintenance: The rotor-stator pair compensates for wear automatically to maintain stable efficiency over long service cycles. Its highly interchangeable parts help cut maintenance and replacement costs significantly.
- Flexible installation: Multiple flange, output shaft and port options enable seamless integration into hydraulic system of construction machinery, agricultural equipment, sanitation vehicles and other devices.
4. Main Technical Specifications
- Displacement range: 50~500mL/r (models from BM1-50 to BM1-500)
- Continuous working pressure: 10~17MPa, peak shock pressure up to 21MPa
- Rated flow: ≤60L/min, compatible with oil supply parameters of small and medium-sized hydraulic systems
- Transmission types: keyed splines or straight keys for winch, slewing and travel drive loads
5. Application Industries
As a standardized Hydraulic orbit motor, it is widely applied in various hydraulic system:
1. Construction machinery: Slewing drives for mini excavators, attachment drives for loaders, rotation units for aerial work platforms
2. Agricultural machinery: Conveyor drum drives for harvesters, seeder actuators, irrigation hydraulic systems
3. Special vehicles: Brush drives for road sweepers, mold rotation units for injection molding machines, small hydraulic winches, light deck machinery for port facilities
4. Industrial equipment: Material conveyors, leather processing machines, compact hydraulic drive units for mining pipe tongs
6. Cross-border Marketing Copy (Naturally Embedded Keywords)
Short Platform Title
BM1 Cycloidal Motor | High Performance Hydraulic Orbit Motor for Custom Hydraulic System Solutions
Long Product Description
Our BM1 Cycloidal Motor is a mature, cost-effective hydraulic orbit motor engineered for diverse industrial applications. Boasting a compact gerotor structure and premium low-speed high-torque performance, it integrates flawlessly into your entire hydraulic system to deliver steady power for construction, agricultural, sanitation and marine machinery.
Equipped with automatic wear compensation, reversible rotation and versatile mounting configurations, this hydraulic orbit motor simplifies your hydraulic system layout and lowers long-term maintenance expenses. Multiple displacement and shaft variants are available to match different flow and pressure parameters of your hydraulic system, ensuring extended service life even under harsh vibrating and dusty operating conditions.
Chinese Marketing Copy English Version
As a classic Hydraulic orbit motor, the BM1 Cycloidal Motor achieves deep compatibility with customized hydraulic system. Leveraging its compact gerotor structure and signature low-speed high-torque strengths, it provides reliable slewing and travel power for construction, agricultural and sanitation machinery. Built-in wear compensation allows flexible series and parallel connection in hydraulic systems. Various flange and shaft options adapt to different flow and pressure settings of hydraulic systems, reducing system modification difficulty and follow-up maintenance costs while maintaining stable performance in tough working environments.
7. Selection Guidelines
Determine the exact displacement and shaft type according to the rated pressure, supply flow, load torque and installation space of your hydraulic system. For frequent shock loads, select reinforced heavy-duty Hydraulic orbit motor versions to prolong the overall service life of the hydraulic system.
