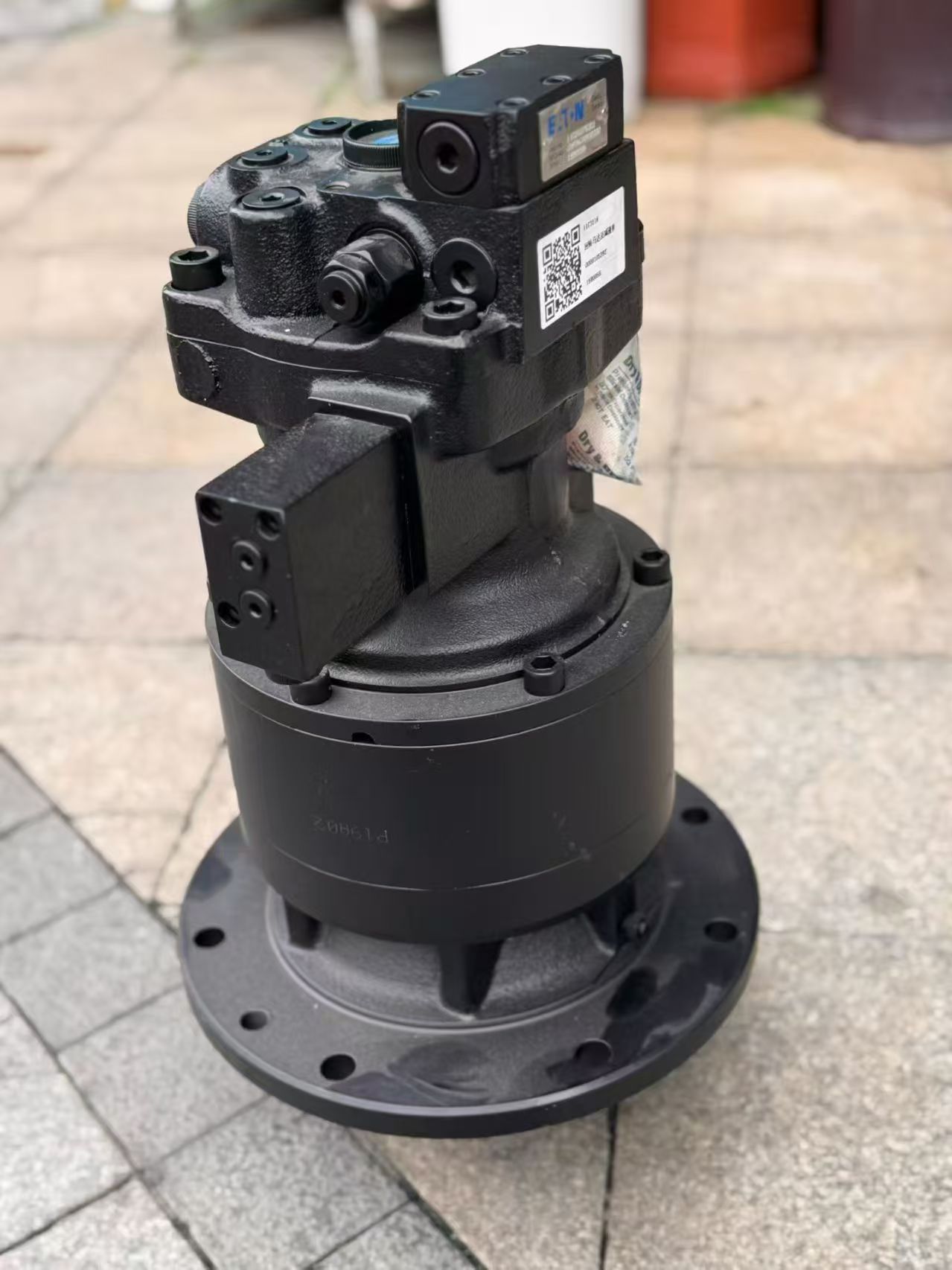

LiuGong 9075 Swing Assembly – JMF047 Description

JMF047 is the part number of the swing assembly supplied by Eaton Korea for the LiuGong 9075. This assembly is a core unit that integrates hydraulic system drive with mechanical transmission. Its internal configuration and external connections can be broken down into the following key points:

· Swing Motor and Hydraulic System

The front end of the swing assembly is a swash-plate piston motor manufactured by Eaton, which is directly connected to the machine's hydraulic system. Hydraulic oil is supplied to the motor through the main control valve, converting hydraulic energy into rotational torque to achieve smooth slewing of the upper structure.

· Gear Box

The motor output shaft is directly coupled to a multi-stage planetary reduction gear box. This gear box converts the motor's high speed and low torque into low speed and high torque, ultimately driving the machine's swing by meshing the output pinion with the internal ring gear of the slewing ring. The JMF047's gear box incorporates an integrated normally-closed parking brake to ensure safety.

· Relationship with the Hydraulic Winch

Although the swing assembly itself does not directly include a hydraulic winch, on the LiuGong 9075 (commonly used for material handling, forestry grapples, etc.), the hydraulic winch is typically powered by the same hydraulic system. While the main hydraulic circuit supplies oil to the swing assembly, it also distributes flow to the hydraulic winch through an auxiliary valve bank. The two work together to perform lifting and slewing operations without interfering with each other.

1. Overview of LiuGong 9075 Swing Assembly

The swing assembly is a pivotal component of the LiuGong 9075 crawler excavator (e.g., the 9075F model), enabling the rotational movement of the excavator’s upper structure. This directly influences operational efficiency and stability during work. Typically, the assembly comprises the following key parts:

• Swing Motor: Provides rotational force, commonly a hydraulic motor (e.g., axial piston motor).

• Swing Gearbox (Reducer): Reduces rotational speed while increasing torque to meet the demands of swing operations.

• Braking System: Ensures stability when the swing motion stops, preventing unintended drift caused by inertia.

• Hydraulic Piping: Connects the swing motor to the main hydraulic system, facilitating the transfer of pressurized hydraulic fluid.

Key Specifications (Example: 9075F Model)

• Swing Speed: 11 rpm (under rated operating conditions).

• Gradeability: 35°, indicating its capability to operate effectively on inclined surfaces.

• Ground Pressure: 33.15 kPa, reflecting the pressure distribution exerted on the ground.

2. Role of JMF047 (Eaton Korea Hydraulic Pump)

The JMF047 is a hydraulic pump manufactured by Eaton Korea, which likely serves as a critical component within the hydraulic system of LiuGong 9075 excavators, providing power to the swing assembly. Its key features include:

• Type: Axial piston pump (commonly used in high-pressure, high-flow applications).

• Pressure Range: Based on Eaton’s similar product lines (e.g., the A4V series), it offers a rated pressure of up to 210 bar, meeting the requirements of excavator swing operations.

• Flow Control: Likely supports variable displacement, enabling automatic adjustment of flow based on load conditions to enhance energy efficiency.

• Reliability: Eaton products are known for their durability and resistance to contamination, making them suitable for harsh working environments.

Connection to the Swing Assembly

• The JMF047 hydraulic pump supplies pressurized hydraulic fluid to the swing motor through hydraulic piping, driving its rotational motion.

• The pump’s flow rate and pressure directly affect the swing speed and torque, necessitating proper matching with the motor’s specifications to ensure optimal performance.

3. Technical Compatibility Analysis

• Pressure Matching: The operating pressure of the LiuGong 9075’s hydraulic system must be compatible with the rated pressure of the JMF047 pump (e.g., ≤210 bar).

• Flow Requirements: The flow demand of the swing motor can be calculated using the formula:

Q=V×n60×ηvQ = \frac{V \times n}{60 \times \eta_v}Q=60×ηvV×nWhereQ Q Qrepresents the flow rate (in liters per minute),V V Vis the motor displacement (in milliliters per revolution),n n nis the rotational speed (in revolutions per minute), andηv \eta_v ηvis the volumetric efficiency. The flow range of the JMF047 pump must be sufficient to meet the motor’s maximum demand.

• Efficiency Coordination: The combined efficiency of the pump and motor (typically ranging from 85% to 90%) should be well-matched to minimize energy losses.

4. Application Scenarios and Advantages

• Typical Operating Conditions

• Rapid swing positioning during earthmoving and excavation tasks.

• Stable swing control when working on slopes.

• High-torque output for heavy-duty digging operations.

• Advantages

• High Efficiency: The variable displacement feature of the JMF047 pump optimizes energy consumption, reducing operational costs.

• Durability: Its contamination-resistant design extends the lifespan of the hydraulic system, decreasing the frequency of maintenance.

• Compatibility: It exhibits high integration with the hydraulic system of the LiuGong 9075, simplifying installation and commissioning processes.

5. Maintenance and Troubleshooting

• Routine Inspections

• Check the cleanliness of the hydraulic oil (recommended NAS 6 grade or higher).

• Monitor the pump body temperature (normal operating range: 40°C to 80°C).

• Listen for abnormal noises or feel for excessive vibrations, which may indicate wear on bearings or seals.

• Common Faults and Solutions

• Insufficient Pressure: Inspect the pump’s displacement adjustment mechanism or the settings of the relief valve.

• Flow Fluctuations: Investigate potential hydraulic oil contamination or internal leakage within the pump.

• Overheating: Verify the efficiency of the cooling system or check if the pump is under excessive load.
