KYB Swing Motor MSG-44VP

4 week ago

9 0 

4 year

Product details

1. Product Overview

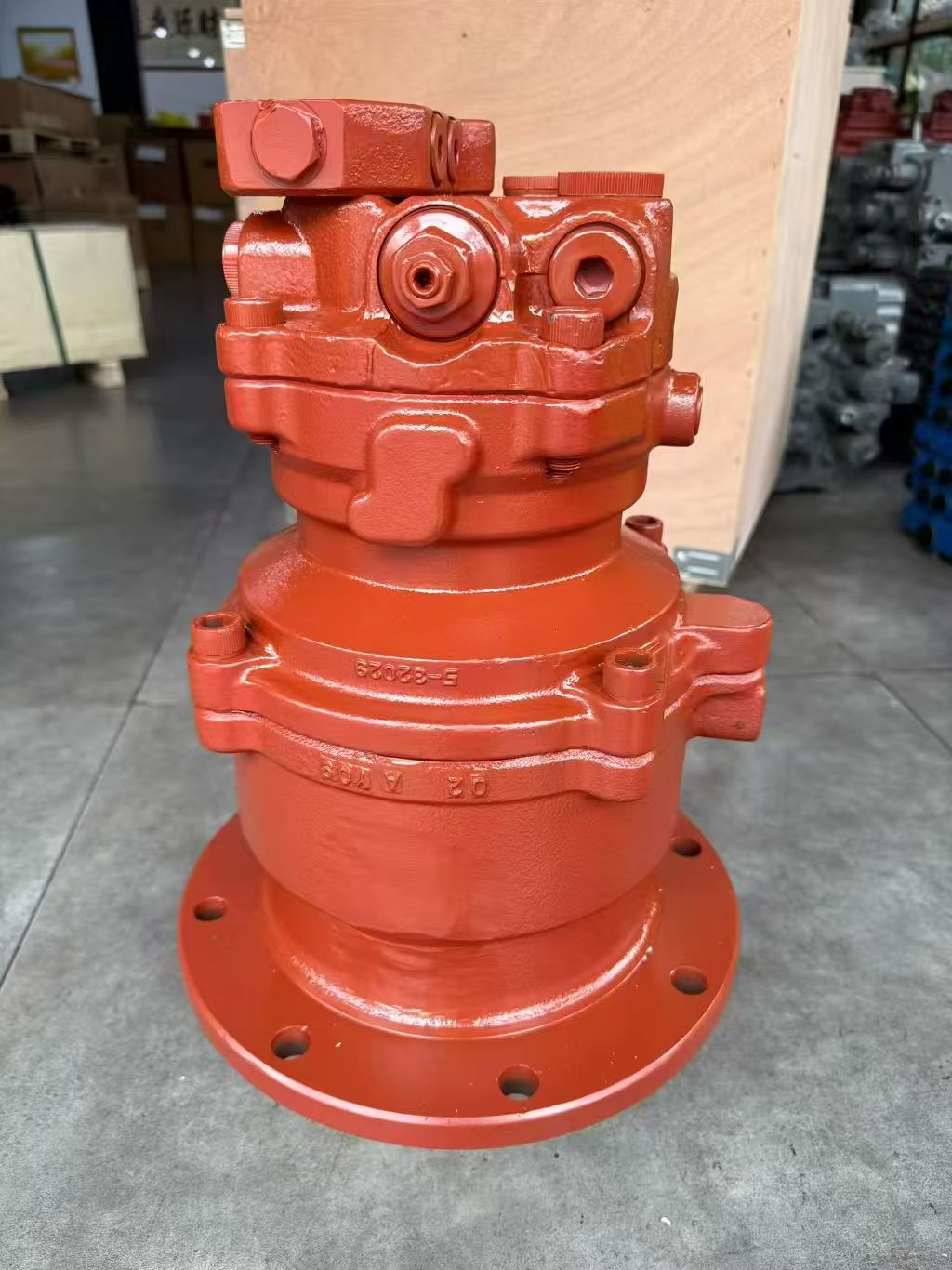

The KYB MSG-44VP is an axial piston swing motor developed by Kayaba for mini & midi excavators. It features compact packaging, high breakout torque and stable swing braking, with two configurable variants: one integrated with valve assemblies, and the other valve-free.

2. Valve-equipped Version for Listed Models

Applicable machines: Yanmar 100, Kubota 183/KX080, Case 75, Takeuchi TB175, LiuGong 908

- Integrated components: signal delay valve (snail valve) + balance valve block

- Functional benefits:

1. The snail-style signal delay valve cushions hydraulic shock during swing start/stop, eliminating jitter and abrupt slewing for precise manipulation.

2. The balance valve block prevents runaway slewing under slope or offset loads, locks the upper structure reliably and improves operational safety on inclined ground.

- Installation: Direct bolt-on fit with original swing reducers, compatible with factory pipeline layout without frame modification.

3. Valve-free Variant Reference

Units fitted on Sany 75, Yuchai 85, SDLG 80 and Shanchong 908 omit both balance valve block and snail valve. Swing control is fully undertaken by the main control valve, delivering simpler structure and lower maintenance cost for bulk earthmoving tasks.

4. Shared Core Advantages

Optimized displacement for 8-ton class excavators, industry-standard pressure resistance, heavy-duty sealing for harsh outdoor environments, and high interchangeability of the main motor body across all model derivatives.
