M3B Series Interchangeable with Parker Denison Vane Motor

M3B Series Interchangeable with Parker Denison Vane Motor Overview

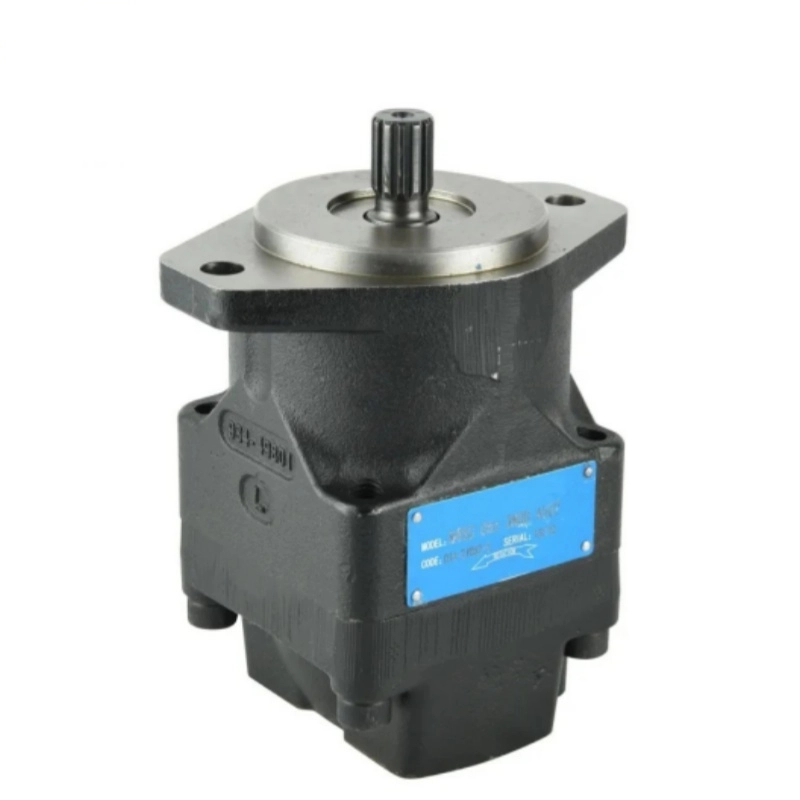

The M3B Series Hydraulic Vane Motor is a high-performance, medium-duty motor designed as a cost-effective and fully interchangeable replacement for Parker Denison vane motors. It maintains the same installation dimensions, shaft configuration, and performance characteristics, ensuring seamless integration into existing hydraulic systems without modification.

Engineered for high efficiency, smooth operation, and reliable durability, the M3B series is widely used in industrial and mobile applications requiring stable torque output and low noise performance.

Core Features & Advantages

1.Reliable performance

The M3 and M4 motors have been designed especially for severe duty applications which require long lasting medium pressure, high speed and reversing capabilities even with low fluid lubricity. Their performances remain stable over time.

2.Long lifetime

The fully pressure balanced concept increase the motor lifetime over its full speed range. Double lip vanes reduce the sensitivity to fluid pollution.

3.Low noise

The bearing capabilities are totally dedicated to the external loads on the shaft ends, whatever the operating pressures are.

Simply silent! The Denison Vane Technology allows a very low noise level, whatever the speed.

4.Low torque ripple

Thanks to their 10 vanes, advanced cam ring profile, two torque cycles per revolution and low internal dead volumes, the M3 and M4 motors exhibit a very low torque ripple, even at low speeds.

5.Versatility and compactness

With several displacements for the same installation size, the M3 and M4 motors are very powerful and compact.
