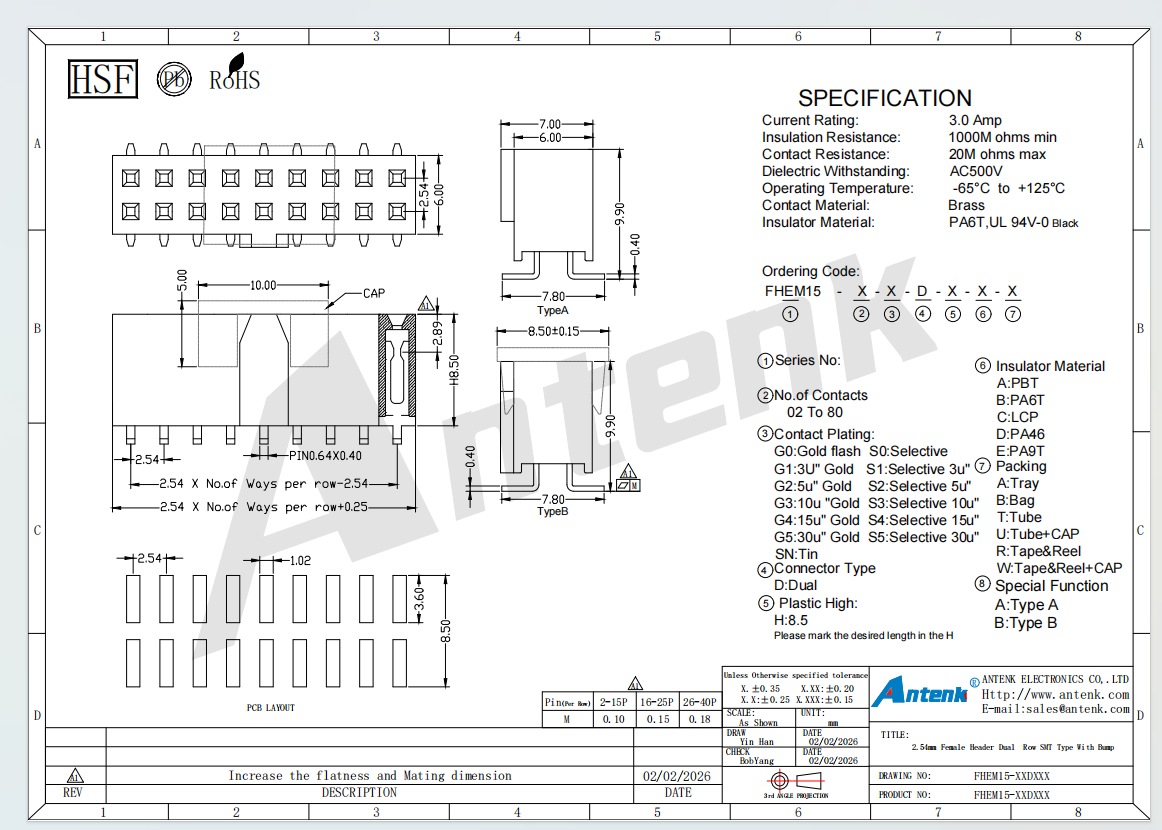

Manufactured by Huizhou Antenk Electronics Co., Ltd, this 2.54mm dual row SMT female header with bump is designed to deliver stable signal and power transmission between printed circuit boards. The product is coded FHEM15 with configurable contact pins ranging from 2 pins to 80 pins, supporting two structural types Type A and Type B and multiple insulator materials including PA6T and PBT which comply with UL94V 0 flame retardant standard. Made of brass contacts, this connector can be finished with various tin or gold plating options to meet different anti oxidation and conductive requirements. Its electrical specifications cover 3.0 Amp rated current, minimum 1000 megohm insulation resistance and AC500V dielectric withstand voltage, with wide operating temperature from minus 65 degree Celsius to 125 degree Celsius. Our complete production process includes independent mold development, precision high speed stamping, plastic injection molding, contact electroplating, automatic assembly and strict electrical performance testing. This connector features optimized flatness and precise mating dimensions to lower SMT mounting defects, and all materials fully meet RoHS and REACH environmental standards.
For proper usage, operators need to select the correct pin number and structural type before placing the header onto the designated PCB pads via SMT reflow soldering equipment, then connect with matching male headers to finish circuit conduction. It is widely applied in industrial control equipment, automotive electronics, communication devices, liquid crystal displays, digital household appliances, precision instruments and computer peripheral products. During application, users should avoid operating beyond the 3 Amp current limit, store products in dry environment to prevent plastic aging and strictly follow standard soldering temperature parameters. Compared with small scale manufacturers, Antenk owns a 10000 square meter production base in Dongguan with 250 professional staff, imported precision molding and testing equipment. We hold ISO9001 ISO14001 and IATF16949 certifications as well as UL safety certification, possess self operated import and export rights and can issue 13 percent value added tax invoices to global buyers with stable oversea delivery capacity.
As a Guangdong Famous Trademark brand established in 2007, Antenk has developed more than 10000 connector specifications and accumulated rich experience in customized electronic connection solutions. This female header supports diverse packaging methods including tray bag tape and reel to adapt to automatic mass production lines. Equipped with a professional laboratory containing over 20 sets of testing devices, we conduct full reliability tests on insulation resistance, voltage resistance and temperature tolerance before delivery to guarantee consistent product quality. Over 70 percent of our products are exported to Europe Southeast Asia North America and other global regions. Our professional engineering team can adjust insulator material contact plating and product dimensions to satisfy personalized client demands, providing reliable long term electrical connection solutions for worldwide industrial electronic manufacturers.
