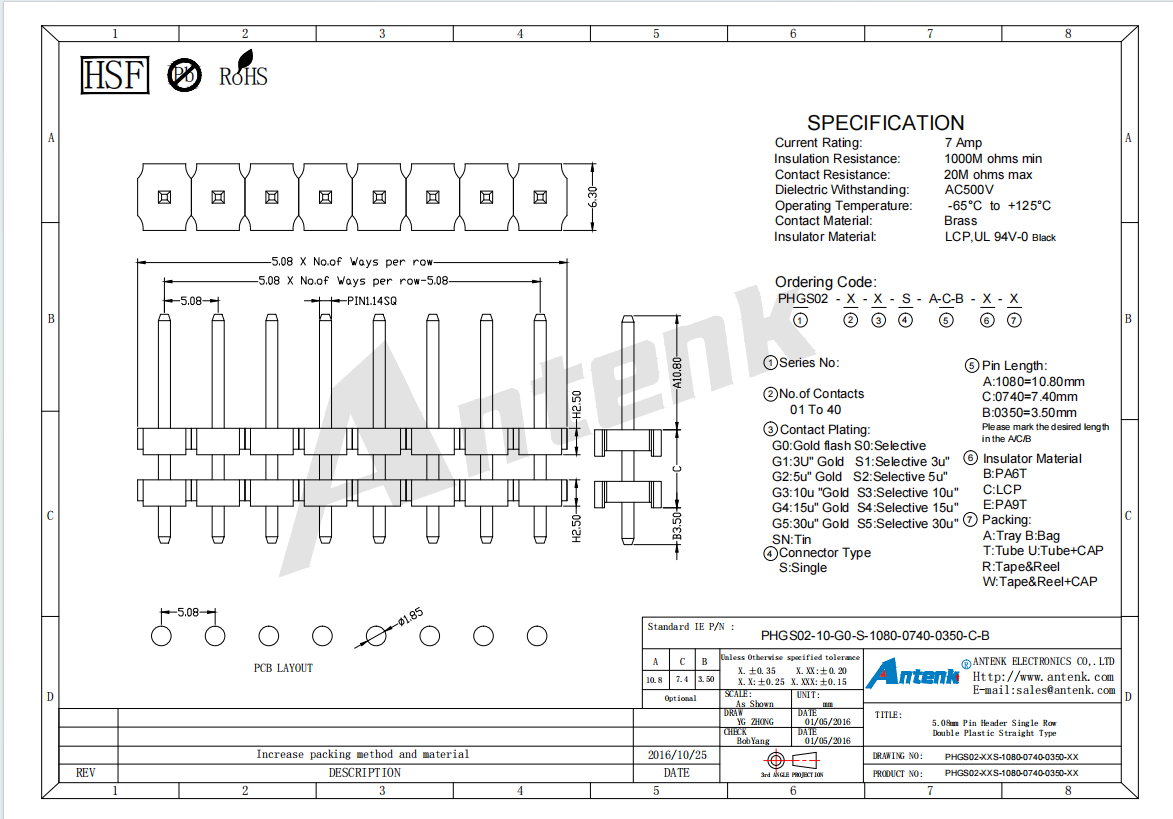

5.08mm Pin Header Single Row Double Plastic Straight Type

Developed and manufactured by Huizhou Antenk Electronics Co., Ltd, this 5.08mm single row double plastic straight pin header acts as a stable transmission component for power and signal connection between printed circuit boards and wire harness assemblies. Modeled as PHGS02 series, this connector supports customizable contact pins ranging from 1 pin to 40 pins and three optional pin lengths to meet diverse PCB assembly demands. Adopting brass as contact material and UL94V 0 rated LCP or PA6T insulating plastic, the product delivers stable electrical performance with 7 Amp rated current, minimum 1000 megohm insulation resistance and AC500V dielectric withstand voltage, operating reliably within a wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. Our standardized production process covers independent mold research and development, precision high speed stamping, injection molding, multiple surface plating treatments including selective gold flash gold plating and tin plating, automatic assembly and strict electrical reliability testing. Designed with double plastic structure, this pin header features excellent positioning stability during soldering and mating, and complies fully with EU RoHS and REACH environmental regulations.



For standard operation, users shall align the straight pins with designated PCB pads and complete through hole soldering, then match the header with corresponding female connectors to finish circuit connection. This product is widely applied in industrial control equipment automotive electronics communication devices household electrical appliances precision testing instruments and digital peripheral products. During application, operators must avoid exceeding the 7 Amp current limit, store finished connectors in dry sealed environment to prevent plastic aging and pin oxidation, and select matched pin length according to PCB thickness. Compared with small scale manufacturers, Antenk owns a 10000 square meter production base in Dongguan equipped with imported precision processing and testing equipment. Our company holds ISO9001 ISO14001 and IATF16949 management certifications as well as UL safety certification, possesses self operated import and export rights and can issue 13 percent VAT invoices to global purchasers, ensuring stable mass delivery and strict whole process quality control supported by professional engineering and quality assurance teams.



Founded in 2007 and owning the Guangdong Famous Trademark ANTENK, we have developed more than 10000 connector specifications with 250 sets of plastic molds and 180 sets of precision terminal molds. This pin header provides multiple packaging options including tray bag tape and reel to adapt to automatic production lines. Equipped with a professional laboratory with over 20 testing devices, we conduct comprehensive reliability inspections on insulation voltage resistance temperature cycling and plugging durability before shipment. Over 70 percent of our products are exported to Europe Southeast Asia North America and other global regions. Our professional technical team can customize pin quantity plating type insulating material pin length and packaging mode to satisfy personalized client requirements, delivering durable high precision PCB connection solutions for worldwide electronic manufacturing enterprises.
