Temperature transmitter with IP67 rating（SBWZR-16）
4 week ago
Product Description
The SBWZ/R Thermocouple (resistance) integrated temperature transmitter is a field mounted temperature transmitter unit in the DDZ-S series of instruments. It is composed of thermocouple, thermal resistance and temperature transmitter module, adopts two-wire system, with nonlinear correction circuit, can directly measure the temperature of liquid, gas medium and various substances in the range of -200ºC~+1600ºC in the industrial process, and convert the temperature signal into a linear 4~20mADC current output signal with the temperature signal. Send display, adjust recording instrument or computer for distributed control.
Technical Parameter
| Accuracy | ±0.2%F·S, ±0.5%F·S(including linearity,hysteresis and repeatability) |
| Output (2 wires) | 4…20mA |
| Power supply | 12…36VDC (or 24VDC) |
| Ambient temp | -25…85ºC |
| Storage temp | -45…125ºC |
| Humidity | 5…95% |
| Accuracy of the indicator: | ±2.5%(100% scale) ±1.0%(LED) ±1.0%(LCD) |
| Power consume | <0.5W (24VDC) |
| Process connection | clamp,flange,screw |
| Sensor | RTD/TC |
| RTD | Pt100, Pt1000, Pt500 |
| TC | K,E,S,J,T, etc |
| Range | optional |
| Internal cold junction for TC | Internal cold junction for TC |
| Material | 304,316 stainless steel, Corundum tube, etc |
| Diameter | Ø4,Ø6,Ø8,Ø10 |
| with explosion-proof properties | with explosion-proof properties |
| Local indicator | LCD, LED |
| Insert depth,the length and diameter size can be customized | Insert depth,the length and diameter size can be customized |
| Can be anti-corrosion features | cover sensor with PTFE |

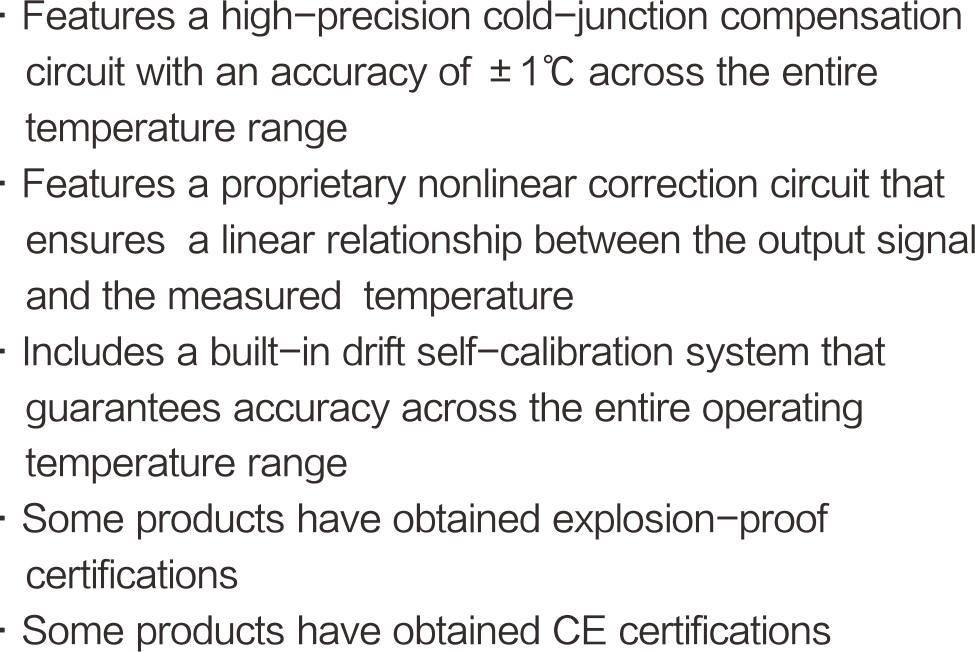

Product Features
Standard coupling head, waterproof and dustproof, analog signal 4-20MA output, remote control, reduce signal attenuation
Imported thin-film components, less thermal response time, reduce dynamic error, magnesium oxide filling probe rod, shock resistance, excellent thermal conductivity, long service life
National standard 304, 316, PTFE material, free choice, to meet the measurement of different media, fixed threads, movable ferrule, flange connection to support non-standard customized
From the theoretical data input to the actual oil temperature detection, simulating different media temperatures in the field, 48 hours of data recording, to ensure that each temperature transmitter is accurate and reliable~.
