3.96mm Pin Header Single Row Straight Type

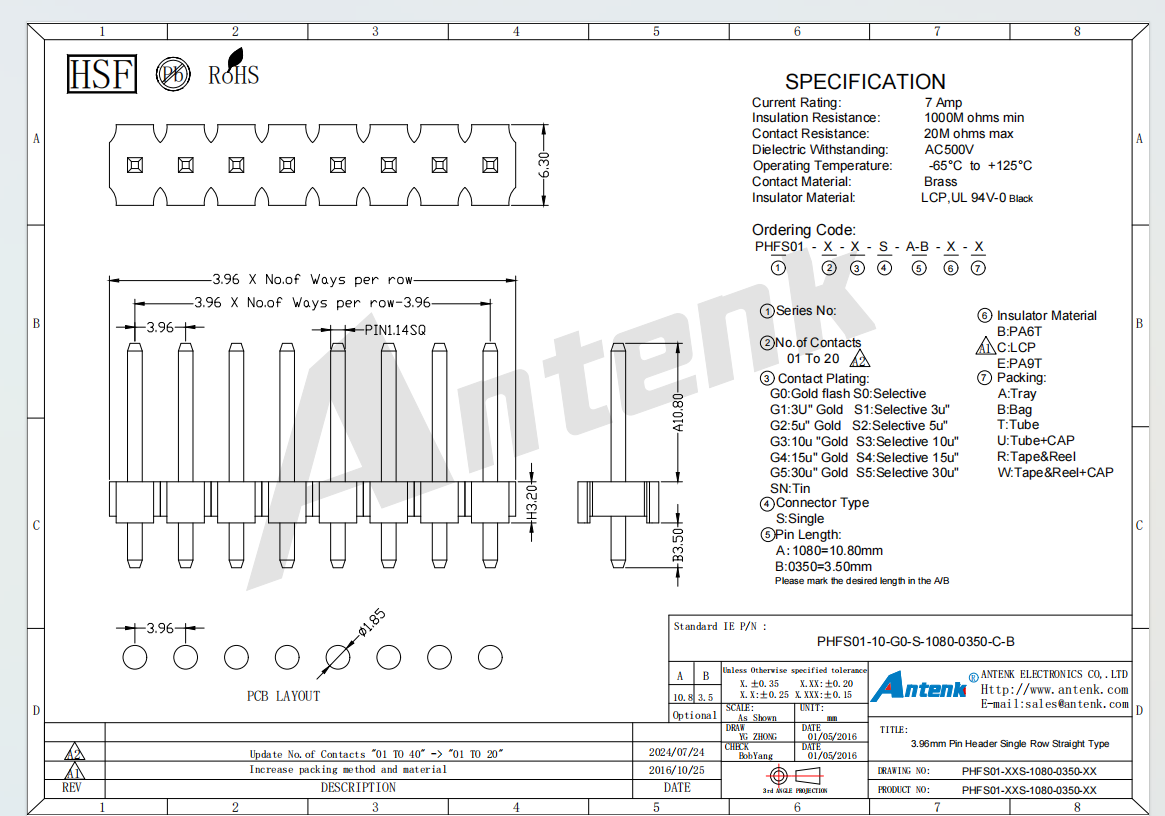

Manufactured by Huizhou Antenk Electronics Co., Ltd, the 3.96mm single row straight pin header is a robust wire to board and board to board connector designed for stable power and signal transmission in various electronic devices. This product features a rated current of 7 Amp, minimum insulation resistance of 1000 megohms and maximum contact resistance of 20 milliohms, which can withstand 500 volts alternating current and operate reliably in the wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. The conductive pins are made of brass for excellent electrical conductivity, while the insulating housing adopts flame retardant LCP or PA6T material compliant with UL94V 0 standard. Customers can select pin counts ranging from 1 to 20, two standard pin lengths of 10.80mm and 3.50mm, together with multiple surface plating options including selective gold plating, full gold plating and pure tin plating. To install this component, users only need to insert the straight pins into reserved through holes on printed circuit boards and complete soldering fixation, then mate it with the corresponding female connector to achieve secure electrical connection. Precise dimensional tolerance ensures accurate positioning and stable mating performance in long term service.



This pin header is widely adopted in industrial control equipment, liquid crystal displays, digital cameras, communication devices, smart home appliances, automotive electronics, precision instruments and computer peripheral products. Our products are distributed across major electronic cities in China and exported to Southeast Asia, Europe, North America and other global regions. Several operational precautions must be followed to guarantee product lifespan. Buyers need to confirm pin number, pin length and surface plating before placing orders to prevent assembly incompatibility. Soldering temperature should be strictly controlled to avoid deformation of the insulating plastic housing. Excessive force is prohibited during connector mating to prevent pin bending or damage. All our connectors comply with EU RoHS and REACH environmental standards, and most specifications have obtained UL safety certification, fully meeting global green trade and safety access requirements for cross border export.



Founded in 2007, Antenk possesses prominent competitive advantages over peer manufacturers relying on complete vertical integrated production capacity. Our standardized production workflow covers independent mold development, precision terminal stamping, plastic injection molding, automatic connector assembly, comprehensive laboratory performance testing and diversified finished product packaging. We run a 10000 square meter production base in Dongguan with over 250 professional employees and a full range of imported precision production and testing equipment, owning more than 250 sets of plastic connector molds and 180 sets of precision hardware terminal molds to support customized development of over 10000 connector specifications. Our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality system certifications, with self operated import and export rights and more than 70 percent of products exported worldwide. Our independent brand ANTENK has been awarded Guangdong Famous Trademark. Compared with competitors, we realize strict whole process quality control, flexible customized development, stable delivery schedule and professional after sales technical service, delivering cost effective and high reliability connector solutions for global purchasers.
