M4 Series-vane Motor

M4 Series-vane Motor Overview

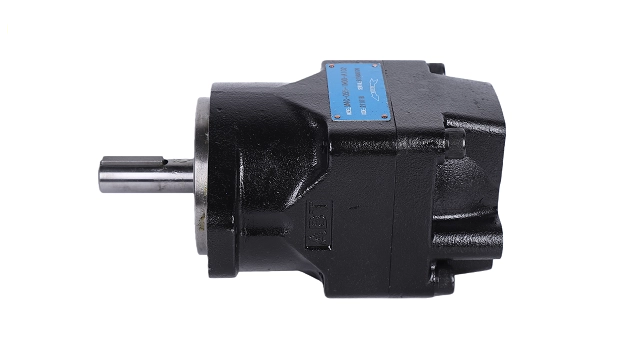

The Parker M4 Series Vane Motor is a fixed-displacement hydraulic motor designed for medium- to heavy-duty applications. It converts hydraulic energy into mechanical torque and rotation through a balanced vane design, offering high starting torque, excellent volumetric efficiency, low noise, smooth low-speed performance, and reversible rotation. The modular cartridge construction allows easy maintenance and flexible displacement adjustment. Typical displacement ranges from 24.4 cm³/rev to 222 cm³/rev, with continuous working pressure up to 230 bar (≈ 3335 psi) and speeds up to about 4000 rpm, depending on the model (M4C, M4D, M4E). The M4 series is widely used in winches, cranes, marine drives, anchor machines, construction and mobile equipment, or any hydraulic systems requiring frequent direction changes and high reliability. It performs well under harsh environments and can operate with low-lubricity fluids.

Key Features:

1. High Efficiency – Advanced vane design ensures smooth flow and high volumetric efficiency, reducing energy loss.

2. Compact Structure – Small size with high power density, easy to install in limited spaces.

3. Low Noise Operation – Optimized hydraulic balancing minimizes vibration and noise levels.

4. Durable Materials – Precision-machined components made from high-strength materials for long service life.

5. Wide Application Range – Suitable for industrial, mobile, and marine hydraulic systems.

Advantages:

• Stable and Reliable Performance – Consistent torque output under varying load conditions.

• Energy Saving – High efficiency and low leakage reduce power consumption.

• Easy Maintenance – Simple internal structure allows quick disassembly and repair.

• Cost-Effective Solution – Combines performance, durability, and efficiency at a competitive price.

• Customizable Options – Available in various displacements and mounting configurations.

•
