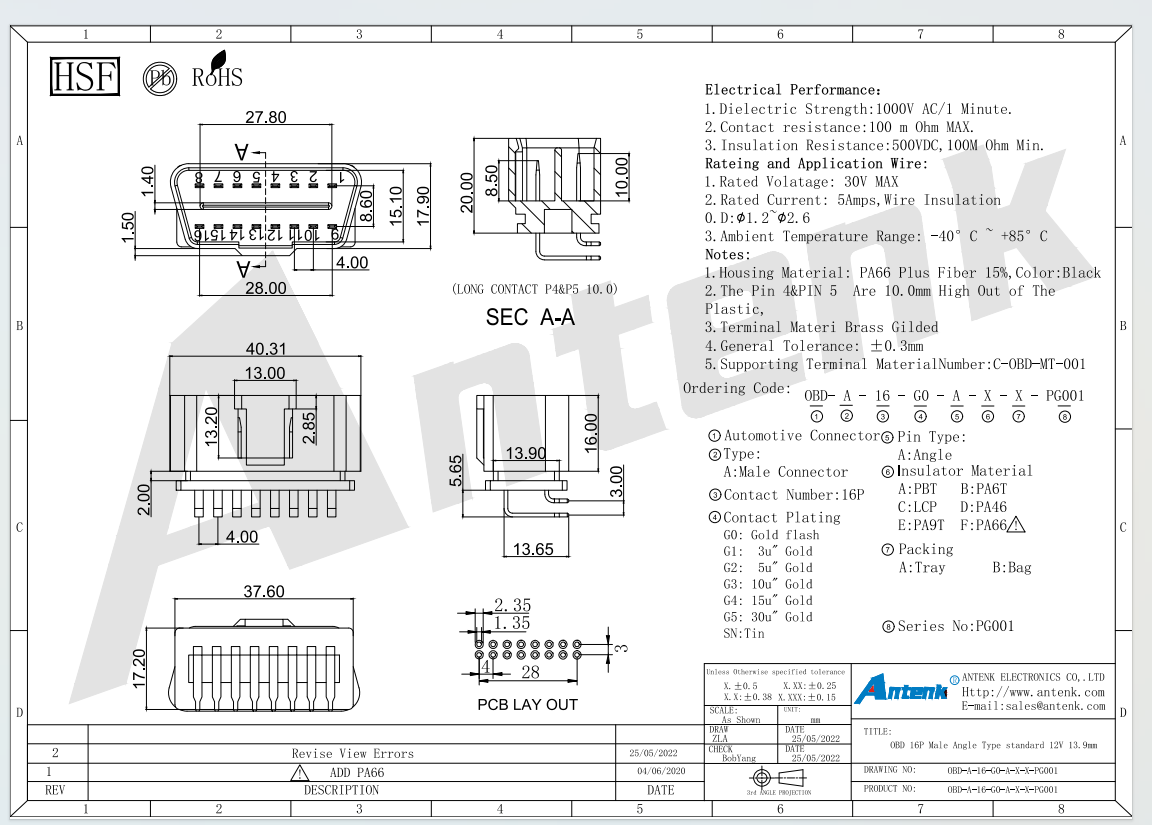

This Antenk OBD 16P right angle male connector is a professional automotive electronic component designed for vehicle on-board diagnostic signal transmission and low-current power supply. It delivers stable electrical performance with 1000V AC dielectric strength for one minute, maximum 100 milliohm contact resistance and 100 megaohm minimum insulation resistance under 500VDC. Rated at 30V maximum voltage and 5A rated current, this 13.9mm standard connector supports wires with diameters ranging from 1.2mm to 2.6mm, and works steadily in harsh environments between -40℃ and +85℃. Made of black PA66 plastic filled with 15% glass fiber and brass gold-plated terminals, the component is mounted by soldering its straight pins onto PCB boards and then connecting with matched OBD female harness connectors to read vehicle fault codes and transmit electronic signals. It is widely adopted in automotive diagnostic tools, vehicle-mounted intelligent control devices, automotive audio systems, industrial precision instruments and automotive household appliances, perfectly fitting most automotive circuit layout requirements.
Manufactured by Antenk Electronics founded in 2007, this OBD connector boasts obvious competitive advantages against rival products via full in-house manufacturing processes covering independent mold design and development, metal terminal stamping, plastic injection molding, automatic connector assembly and strict finished-product performance testing. Our Dongguan production base spans 10,000 square meters with professional technical and quality assurance teams, advanced imported precision production and testing equipment, which enables us to control overall dimensional tolerance within ±0.3mm and provide diversified terminal plating options such as gold flash and thick gold plating for anti-oxidation. Our brand holds Guangdong Famous Trademark honor, and has passed IATF16949 automotive quality management certification, ISO9001, ISO14001 and UL certification. With self-operated import and export rights and 13% VAT invoice service, over 70% of our connectors are exported worldwide, and full-process internal production ensures more stable quality and shorter delivery lead time than outsourced manufacturers.
The core product features include high voltage insulation, wide temperature resistance, low signal attenuation and long service life, benefited from high-strength flame-retardant plastic and corrosion-resistant gold-plated terminals. Several usage precautions must be followed to guarantee safe operation: users should only select wires within 1.2mm to 2.6mm diameter; never overload the connector with voltage above 30V or current exceeding 5A; avoid long-time high-temperature soldering on the plastic shell to prevent insulation damage, and store spare connectors in dry surroundings to protect terminals from oxidation. Every raw material and finished product complies with EU RoHS and REACH environmental standards, with strict sampling and full electrical inspection implemented in every production procedure to eliminate defective products, making this OBD connector a reliable choice for global automotive and electronic industry purchasers.
