2.54mm Female Header Single Row Straight Type H:8.5

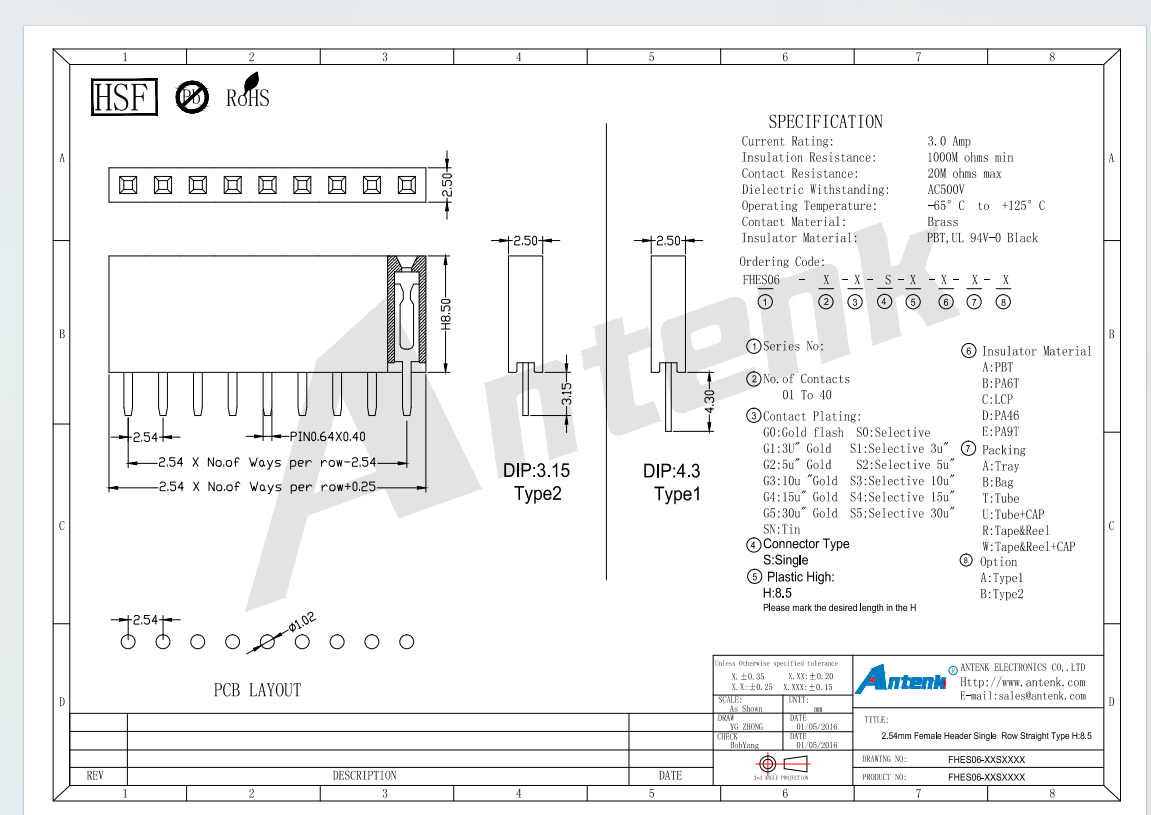

Developed and manufactured by Antenk, this 2.54mm single row straight female header with 8.5mm plastic height serves as a core connection component to realize stable electrical signal transmission and low power conduction between printed circuit boards and external wiring harnesses. The product features reliable electrical specifications including 3.0 Amp rated current, minimum 1000 megohms insulation resistance and maximum 20 milliohms contact resistance, which can withstand AC 500V dielectric voltage. It supports stable operation within a wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. The connector adopts brass contact terminals and black UL94V0 flame retardant PBT insulator material, with customizable pin counts ranging from 1 pin to 40 pins and two DIP installation dimensions for flexible PCB layout matching. Users only need to insert its through-hole pins onto the designated PCB pads and complete wave soldering fixation, then connect it with matched male headers to form a complete conductive circuit. This connector is widely applied in industrial control equipment, liquid crystal display devices, digital home appliances, communication products, automotive electronic modules, precision instruments and consumer electronic toys.



This female header benefits from Antenk’s full in-house production process covering independent mold research and development, terminal precision stamping, plastic injection molding, automatic assembly and strict laboratory performance testing. Founded in 2007, our company operates a 10000 square meter production base in Dongguan equipped with imported precision punching machines, plastic injection molding equipment and over 180 sets of automatic assembly machines. We own more than 250 sets of plastic connector molds and 180 sets of precision terminal molds, enabling flexible customization on contact plating, insulator material and packaging methods. Different from manufacturers relying on outsourced processing, Antenk holds self operated import and export rights, can issue 13 percent value added tax invoices, and has obtained Guangdong Famous Trademark, UL certification, ISO9001, ISO14001 and IATF16949 certifications. Over 70 percent of our products are exported globally, and full chain production strictly controls dimensional tolerance and product consistency to provide customers with more stable quality and shorter delivery cycles.



This connector stands out for its high temperature resistance, flame retardant property and strong anti oxidation performance, with multiple plating options including gold flash, selective gold plating and tin plating to extend service life, while tray bag and tape reel packaging can meet both manual and automatic production demands. Several usage notes should be followed to guarantee service safety. Operators must avoid operating the product beyond 3 Amp current and AC 500V voltage rating, control soldering temperature and duration to prevent deformation of the plastic housing, and store finished connectors in dry environments to avoid terminal oxidation. All raw materials and finished products comply with EU RoHS and REACH environmental standards, and every batch undergoes strict insulation, voltage resistance and durability tests in our professional laboratory. As one of our over ten thousand connector specifications, this female header delivers long term reliable connection performance for global electronic industry buyers.
