1.27mm Female Header Dual Row SMT Type

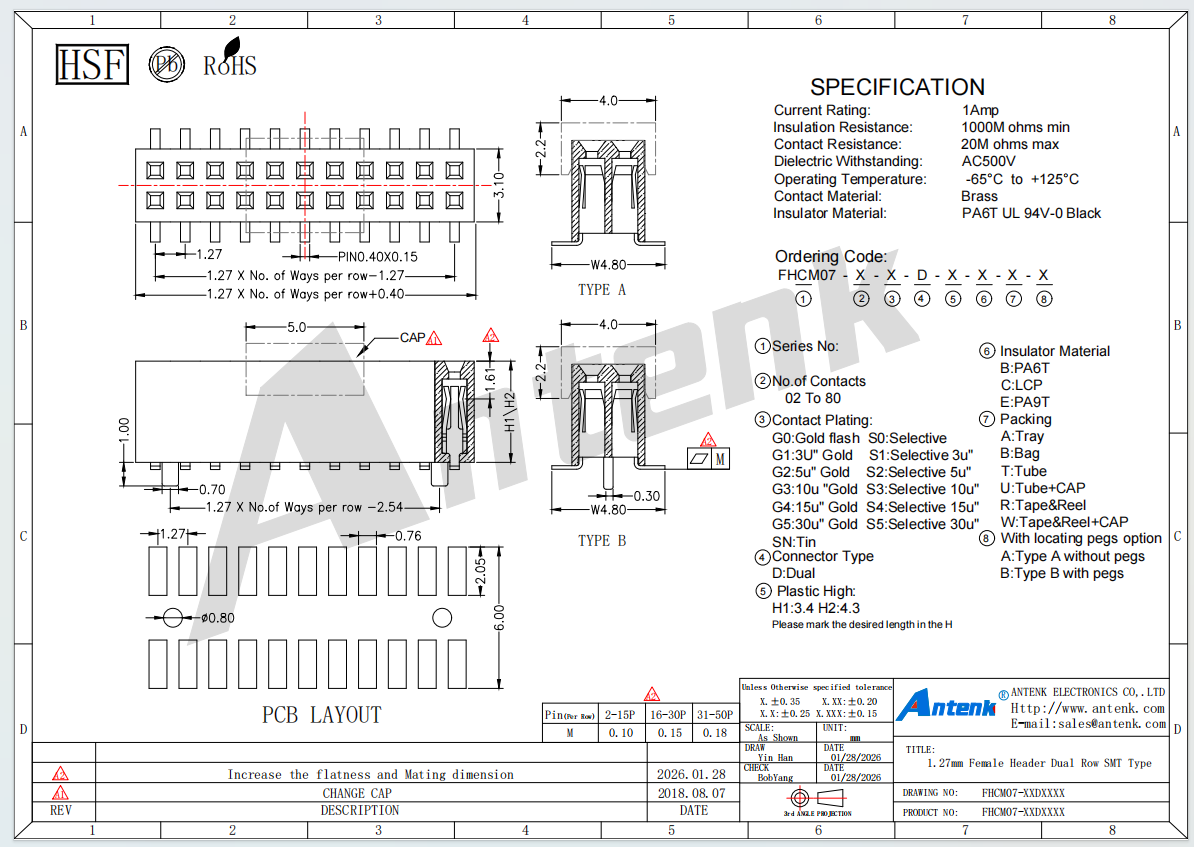

Antenk’s 1.27mm dual row SMT female header is designed to achieve stable electrical connection between printed circuit boards, with two structural types for selection: Type A without locating pegs and Type B with locating pegs, and customizable pin counts ranging from 2 pins to 80 pins. In line with official specification standards, this connector supports a rated current of 1 Amp, features 1000M ohms minimum insulation resistance, 20 milliohms maximum contact resistance and AC500V dielectric withstanding voltage, and can operate steadily in the wide temperature range of -65℃ to +125℃. Its contact terminals adopt brass material, while the insulator uses UL94V-0 flame-retardant black PA6T or PA9T plastic. For installation, the connector is mounted on PCBs via standard SMT reflow soldering, and the locating pegs of Type B effectively avoid position offset during welding to guarantee precise docking with matched male headers. As for usage precautions, users must not exceed the rated current and voltage parameters, arrange application scenarios within the certified temperature range, and keep products away from corrosive environments to meet RoHS environmental requirements. This product also has prominent advantages of diversified surface plating options including tin, selective gold and full gold plating with different thicknesses, as well as multiple packaging solutions like tray, bag, tube and tape-and-reel to fit automated production demands.



The whole manufacturing process of this connector relies on Antenk’s full industrial chain layout, covering independent precision mold development, high-speed brass terminal stamping, plastic injection molding, automatic connector assembly and strict laboratory performance testing. Established in 2007, our company runs a 10000-square-meter production base in Dongguan with more than 250 professional staff, equipped with Taiwan high-speed punch machines, imported precision injection molding equipment, over 180 automatic assembly machines and 20 sets of professional testing devices. Compared with peer suppliers, our core competitiveness lies in self-owned intellectual property and the ANTENK brand awarded as Guangdong Famous Trademark. Our factory has passed UL certification, ISO9001, ISO14001 and IATF16949 automotive-grade quality management certifications. We can provide 13% VAT invoices and hold self-operated import and export qualifications, with over 70% of our connectors exported to global markets. Full-range quality inspection is carried out from raw material incoming check to finished product delivery, which effectively controls defective rate and ensures stable batch consistency.



This 1.27mm dual row SMT female header is widely applied in industrial control equipment, automotive electronics, communication devices, liquid crystal displays, digital home appliances, precision instruments, digital cameras and smart electronic toys. All products comply with EU RoHS and REACH environmental standards, and most specifications are covered by UL certification with the certificate number E472792. As a professional connector manufacturer capable of supplying over 10000 kinds of customized connector specifications, Antenk can provide tailored circuit connection solutions for buyers from Europe, America, Southeast Asia and other regions worldwide. Our professional engineering and quality team offers full-cycle technical support to optimize connector matching performance, helping global customers build long-term stable cooperative relationships and realize safe, reliable circuit transmission in various electronic terminal products.
