2.00mm Pin Header Dual Row Angle Type

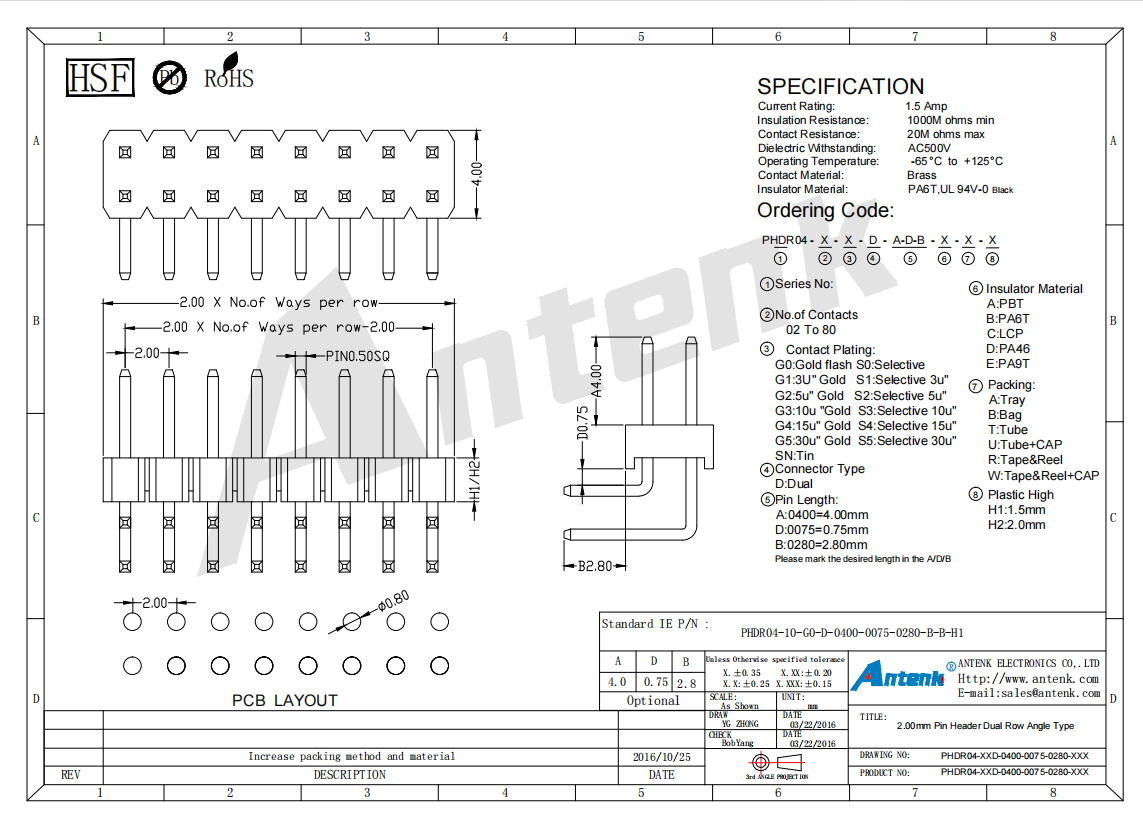

Antenk’s 2.00mm dual row right angle pin header is engineered to deliver stable electrical interconnection between printed circuit boards, supporting customizable pin counts ranging from 2 pins to 80 pins with multiple optional pin lengths to match diverse PCB layout demands. In accordance with official technical specifications, this connector features a rated current of 1.5 Amp, minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and AC500V dielectric withstanding voltage, operating reliably within the temperature range from -65℃ to +125℃. Its conductive pins are made of brass, while the insulator offers abundant material options including PBT, PA6T, LCP, PA46 and PA9T with UL94V-0 flame retardant grade. A wide selection of surface treatments including full gold plating, selective gold plating of various thicknesses and tin plating is available, alongside multiple packaging choices such as tray, bag, tube and tape-and-reel for automated assembly. This right-angle pin header is mounted on PCBs via wave soldering, and its bent pin design effectively optimizes internal space layout of electronic devices. For safe application, users should never exceed the rated electrical parameters, deploy the product only within the certified temperature scope, avoid corrosive and humid working environments, and strictly follow standard soldering procedures to comply with EU RoHS and REACH environmental regulations.



The whole production workflow of this pin header is fully controlled by Antenk’s integrated industrial chain, covering independent precision mould development, high-speed brass terminal stamping, plastic injection moulding, automatic connector assembly and comprehensive electrical reliability testing in our professional laboratory. Founded in 2007, Antenk operates a 10000-square-meter manufacturing base in Dongguan with over 250 skilled employees, equipped with Taiwan high-speed punching machines, imported precision plastic injection equipment, more than 180 automatic assembly machines and over 20 sets of professional testing instruments. Distinct from most peer manufacturers, we own self-developed intellectual property rights and the ANTENK brand honored as Guangdong Famous Trademark. Our factory has obtained UL certification with the certificate number E472792, as well as ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. We are qualified to issue 13% VAT invoices and hold self-operated import and export rights, with more than 70 percent of our products exported globally. Our abundant mould reserves of 250 plastic connector moulds and 180 precision terminal moulds enable us to provide over 10000 customized connector specifications, ensuring stable batch consistency and shorter lead time for global purchasers.



This 2.00mm dual row right angle pin header has broad application coverage across automotive electronics, industrial control equipment, communication facilities, liquid crystal displays, digital home appliances, precision instruments, digital cameras, data storage devices, computer peripherals and smart audio and household appliances. Our professional engineering and quality assurance team provides full-cycle technical support to tailor connector structure, plating type and packaging solution according to client-specific requirements. Our products have gained wide recognition in domestic major electronic cities and global markets spanning Southeast Asia, Europe, the Americas and the Middle East. With strict raw material incoming inspection, in-process quality monitoring and finished product delivery testing, Antenk consistently supplies high-performance and environmentally compliant connectors, building long-term trustworthy cooperative partnerships and providing secure and efficient circuit connection solutions for global electronic manufacturers.
