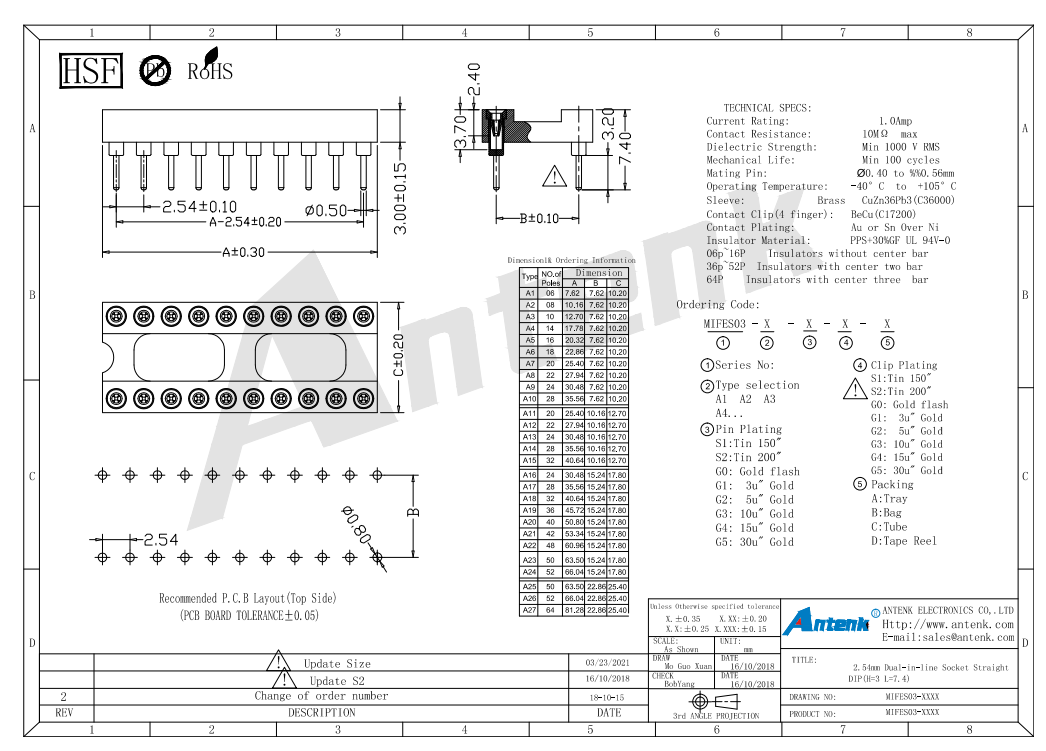

This 2.54mm straight dual in line DIP socket developed by ANTENK is designed for stable electrical signal and power transmission between wires and printed circuit boards. With a standard 2.54mm pin pitch, the product features a 3.0mm insulator height and 7.4mm total mating length, supporting pin configurations ranging from 6 pins to 64 pins to match diverse circuit design demands. In terms of core performance specifications, the connector carries a 1.0 Amp rated current, with maximum 10 milliohm contact resistance and 1000V RMS dielectric strength, and it can sustain at least 100 mating cycles for long term service. Fabricated with brass contact clips and PPS plus 30 percent glass fiber flame retardant insulator, the socket works reliably under operating temperatures from minus 40 degrees Celsius to 105 degrees Celsius and fully complies with RoHS environmental standards. Users can install this component via through hole soldering on PCBs following the official recommended 2.54mm layout, and multiple surface plating options including tin and gold are available to enhance oxidation resistance for different working scenarios.
The connector is widely applied in liquid crystal displays, digital cameras, industrial control equipment, smart home appliances, automotive electronics, communication devices, precision instruments and computer peripheral products. To guarantee long service life, users should avoid violent plugging and unplugging during assembly, strictly keep the operating environment within the rated temperature range and store finished connectors in dry and normal temperature conditions to prevent terminal oxidation. All products adopt a full independent production process at ANTENK’s Dongguan manufacturing base. The whole workflow covers self developed precision mold design, high speed stamping of metal terminals, plastic injection molding, automatic assembly and comprehensive laboratory performance testing. Every production procedure is equipped with strict quality inspection links to unify product accuracy and stability, supported by more than 20 sets of professional testing equipment in our internal laboratory.
