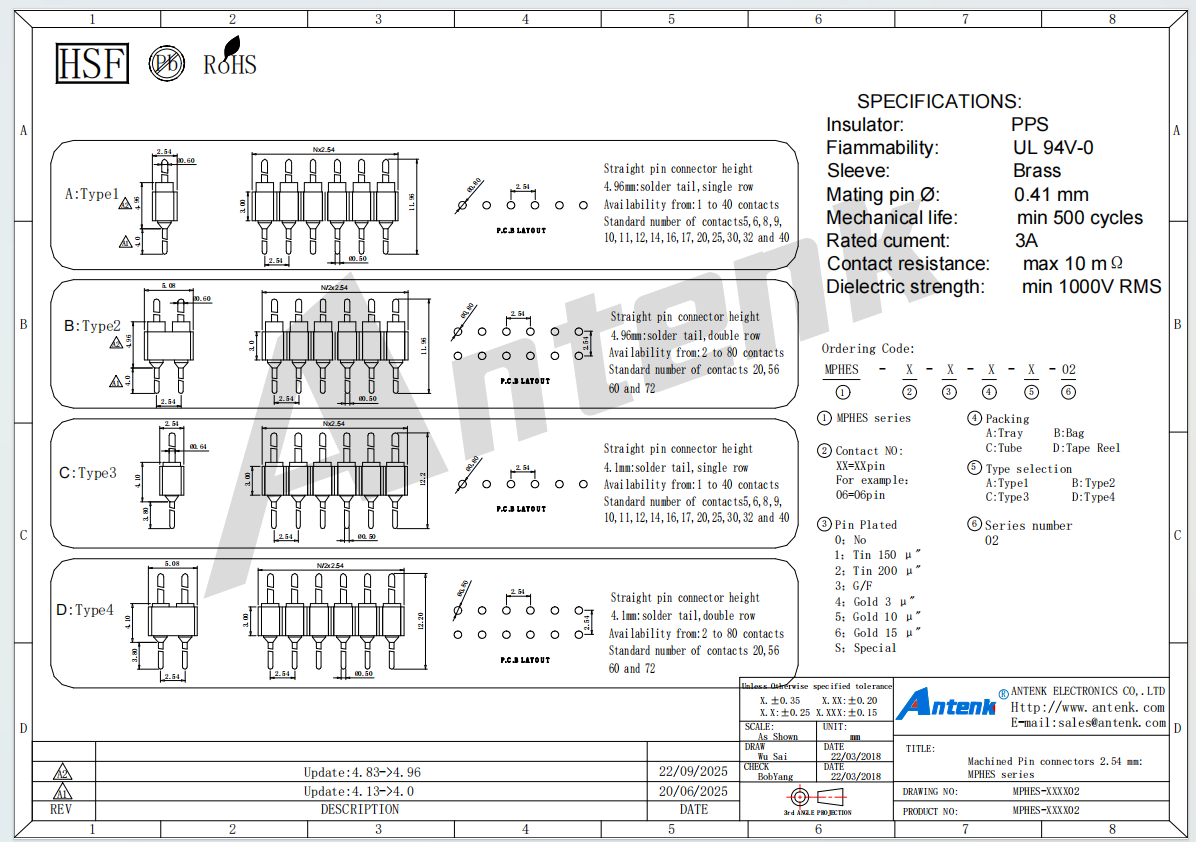

Developed by ANTENK, the 2.54mm MPHES Series Machined Pin Connector serves as a reliable medium for power and signal transmission between printed circuit boards. This product features four structural types to meet diverse layout requirements. Type 1 and Type 3 adopt single row design with respective connector heights of 4.96mm and 4.1mm, supporting 1 to 40 contact pins. Type 2 and Type 4 are double row versions with corresponding heights of 4.96mm and 4.1mm, available from 2 to 80 contact pins. The insulator is made of PPS material reaching UL 94V 0 flame retardant grade, paired with brass sleeves and 0.41mm diameter mating pins. It delivers a 3A rated current, with maximum contact resistance of 10 milliohm and 1000V RMS dielectric strength, and guarantees a minimum service life of 500 mating cycles. Multiple surface plating options including tin and gold are offered to resist oxidation under complex working environments. Users can mount the connector through standard through hole soldering following the official PCB layout specification, and select suitable pin row quantity, pin height and plating type according to actual circuit design demands.
This machined pin connector is widely used in liquid crystal display devices, digital cameras, industrial control equipment, communication products, smart home appliances, automotive electronics, precision instruments and computer peripheral equipment. To extend service lifespan, users should avoid forced plugging and unplugging during assembly, never exceed the rated 3A current load, and store unused products in dry ambient conditions to prevent pin oxidation. All items are fully produced at ANTENK’s Dongguan manufacturing base with a complete in house production workflow. The whole process covers independent precision mold development, brass terminal high speed stamping, PPS plastic injection molding, machined pin processing, automatic product assembly and strict performance testing. More than 20 sets of professional laboratory testing equipment are deployed to conduct electrical, mechanical and environmental reliability inspections for every batch of finished products.
Founded in 2007, ANTENK gains prominent competitive advantages over most peer connector manufacturers with complete industrial chain resources and standardized quality management systems. As the holder of Guangdong Famous Trademark, the company has passed UL certification, ISO9001, ISO14001 and IATF16949 automotive industry quality certification, and all products comply with RoHS and REACH environmental regulations. Our 10000 square meter factory employs over 250 staff, equipped with abundant precision molds, high speed stamping machines and automatic assembly equipment, enabling us to supply more than 10000 connector specifications and flexible customized services. We hold self operated import and export rights with over 70 percent of products exported globally, and can issue 13 percent value added tax invoices for trade partners. Supported by professional engineering and quality assurance teams, we maintain stable product consistency, short delivery cycles and comprehensive technical after sales support for global buyers across dozens of countries and regions.
