POWER D-SUB3W3SOLDER CUP-FEMALE

1、

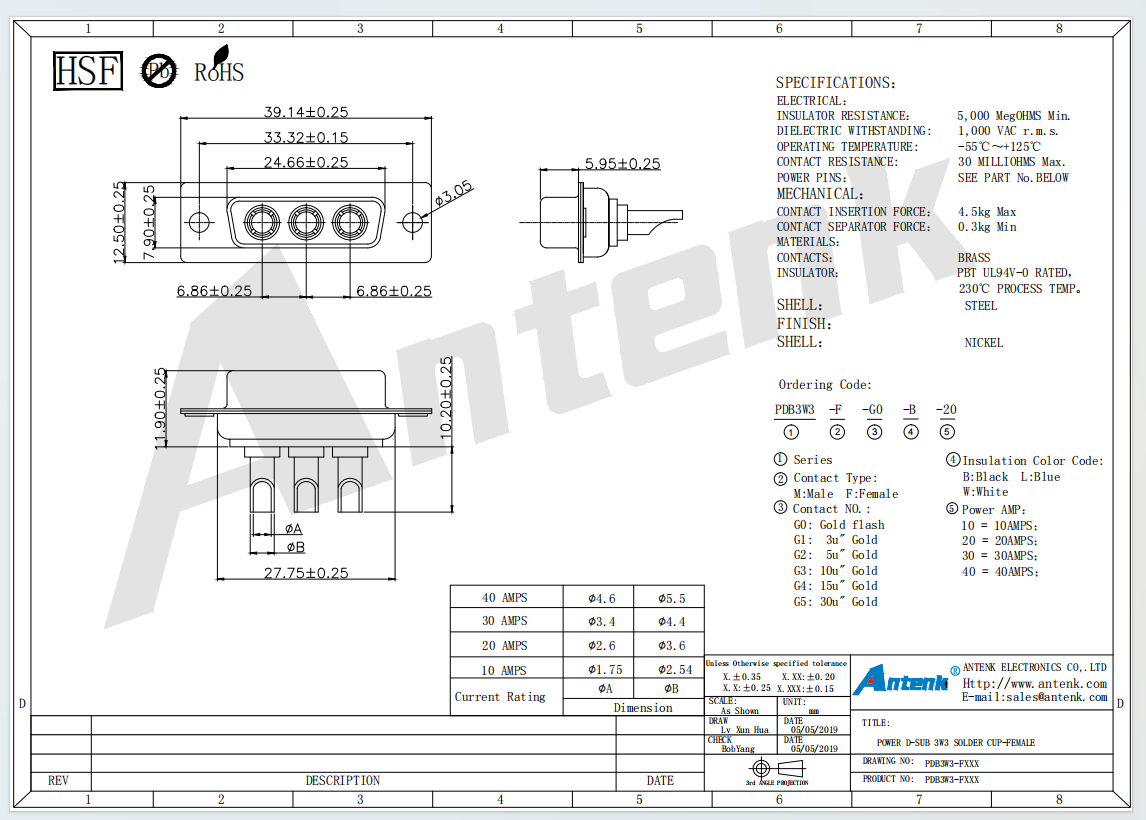

Developed and manufactured by ANTENK, the PDB3W3 series 3W3 power D-SUB female solder cup connector is specially designed for stable high current transmission between industrial equipment and wire harnesses. This connector is built with precise dimensional tolerances and multiple optional configurations to meet diverse power connection demands. It features minimum insulation resistance of 5000 megaohms and 1000 volt alternating current dielectric withstand capacity, with maximum contact resistance limited to 30 milliohms, and can work reliably within the temperature range from minus 55 degrees Celsius to 125 degrees Celsius. In mechanical performance, the maximum contact insertion force is 4.5 kilograms and the minimum separation force reaches 0.3 kilograms to guarantee stable locking connection. The contact part adopts high conductivity brass material, matched with UL94V 0 rated PBT insulator which can withstand 230 degrees Celsius process temperature, and the outer protective shell is made of nickel plated steel for excellent anti interference and anti corrosion performance. Customers can select four optional current ratings from 10 amps to 40 amps, multiple gold plating thickness options and three insulation colors including black white and blue. Users can install this connector on equipment panels via reserved mounting holes and finish circuit connection by soldering wires to the solder cup terminals strictly following standard wiring specifications.



This high power D-SUB connector is widely applied in industrial control devices, automotive electronic systems, communication equipment, digital home appliances, precision testing instruments, audio equipment and motor control units. To extend the service life of the product, users must not operate the connector beyond its rated current value, avoid violent plugging and unplugging operations, control the soldering temperature below 230 degrees Celsius during wiring, and store unused connectors in dry indoor environments to prevent oxidation of brass terminals. All products are fully manufactured at ANTENK’s Dongguan production base with a complete in house production flow. The whole production process covers independent precision mold development, high speed stamping for brass contacts and steel shells, plastic injection molding of PBT insulators, surface electroplating treatment, automatic assembly and strict reliability testing. More than 20 sets of professional laboratory testing equipment conduct comprehensive electrical mechanical and environmental inspections to ensure stable quality for every production batch.



Founded in 2007, ANTENK owns remarkable competitive advantages over most connector manufacturers relying on complete industrial chain layout and international standardized quality management systems. As the holder of Guangdong Famous Trademark, the company has obtained UL certification ISO9001 ISO14001 and IATF16949 automotive industry certification, and all products fully comply with RoHS and REACH environmental standards. Our factory covers an area of 10000 square meters with more than 250 professional employees, equipped with abundant precision molds high speed stamping machines plastic injection equipment and automatic assembly machines, which enables us to provide more than 10000 kinds of connector specifications and personalized customization services. We have self operated import and export rights with over 70 percent of products exported to global markets and can issue formal 13 percent value added tax invoices for trade partners. Supported by experienced engineering and quality assurance teams, we offer stable delivery cycles strict quality control and professional after sales technical support to customers across domestic mainstream electronic cities and dozens of overseas regions.



2、Extracted Key Material & Technical Specifications：

High Conductivity Brass Contact Pin

High Temperature PBT Insulator

Anti-corrosion Nickel Plated Steel Shell

Multi-range High Current Power Terminal

Wide Temperature Resistant Electrical Connector
