D-SUB PCB Male Dual Row Straight Type(stamped Pin)

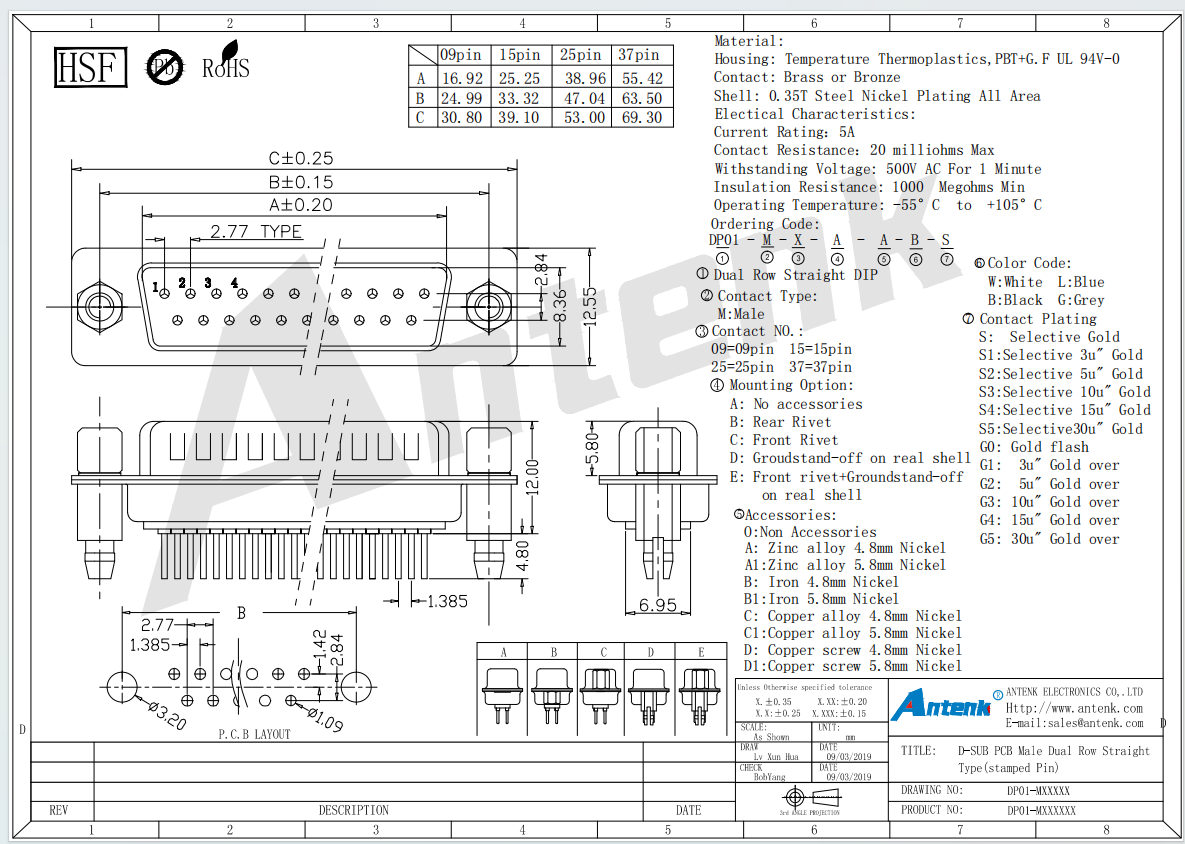

 1,Designed and manufactured by ANTENK, DP01 series straight DIP D-SUB male connector serves as a reliable connection component for power and data signal transmission between printed circuit boards and peripheral devices. This dual row connector supports four standard pin configurations including 09pin, 15pin, 25pin and 37pin with precise dimensional tolerances for stable PCB mounting. Adopting PBT plus glass fiber thermoplastic housing rated UL94V 0 flame retardant, bronze contact terminals and 0.35T full area nickel plated steel shell, the connector achieves outstanding electrical performance with 5A rated current, maximum 20 milliohms contact resistance, 500V AC one minute withstand voltage and minimum 1000 megaohms insulation resistance, operating stably from minus 55 degrees Celsius to 105 degrees Celsius. Multiple customized options are available including various mounting structures, four insulation colors and diverse gold plating solutions to resist oxidation under complex working conditions. Users can directly insert connector pins into PCB pads for through hole soldering, and equip with matched locking accessories such as rivets or grounding stand offs to achieve firm panel fixation according to installation requirements.



This D-SUB male connector is widely deployed in industrial control equipment, communication devices, liquid crystal displays, automotive electronics, precision instruments, smart home appliances and computer peripheral equipment. To guarantee long term stable performance, users must not exceed the rated 5A current load, avoid violent plugging and disconnection, strictly control operating temperature within the specified range, and store unused connectors in dry ventilated environments to prevent terminal oxidation. All products are produced at ANTENK's Dongguan manufacturing base with a complete closed loop production workflow covering independent precision mold design and fabrication, high speed terminal stamping, plastic injection molding, surface electroplating, automatic assembly and systematic reliability testing. More than 20 sets of professional laboratory testing devices conduct strict electrical, mechanical and environmental aging tests for every batch to unify product quality consistency.



Founded in 2007, ANTENK holds prominent competitive advantages over peer connector manufacturers relying on complete industrial chain layout and global recognized quality management certifications. As the owner of Guangdong Famous Trademark, the enterprise has passed UL certification, ISO9001, ISO14001 and IATF16949 automotive industry quality system certification, with all products complying with RoHS and REACH international environmental standards. Our 10000 square meter factory with 250 professional staff is equipped with abundant precision molds, high speed stamping machines and automatic assembly equipment, capable of supplying more than 10000 connector specifications and personalized customized services. We own self operated import and export rights with over 70 percent of products exported worldwide and can issue formal 13 percent value added tax invoices for global partners. Supported by experienced engineering and quality assurance teams, we deliver stable lead time, strict quality control and comprehensive technical after sales service to clients across domestic major electronic cities and dozens of overseas regions.



2,Extracted Key Material & Technical Specifications

Glass Filled PBT Thermoplastic Housing

High Conductivity Bronze Contact Pin

Full Area Nickel Plated Steel Shell

High Voltage Resistant D-SUB Terminal
