Three Row Shielded D-SUB Plug 50 Pin Solder Type Stamped Pin

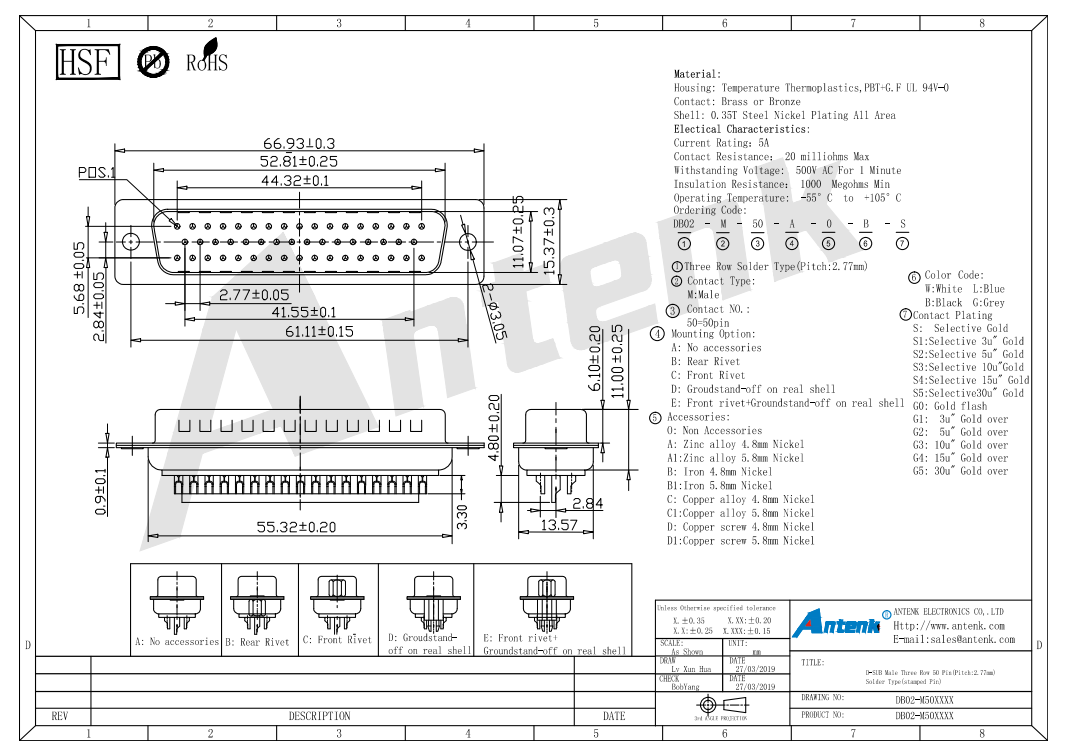

1、Independently developed and manufactured by ANTENK, the DB02 series three row 50 pin D-SUB male connector with 2.77mm pitch is engineered to deliver stable high-density signal and power transmission between printed circuit boards and industrial peripheral devices. This stamped pin solder type connector adopts high-performance raw materials, with UL94V-0 rated PBT plus glass fiber thermoplastic housing, brass or bronze conductive contacts and 0.35T thin steel shell with full-area nickel plating for reliable electromagnetic shielding. In terms of electrical performance, the connector supports a 5A rated current, features maximum 20 milliohms contact resistance, can withstand 500V AC voltage for one minute, and provides minimum 1000 megaohms insulation resistance. It works steadily in a wide temperature range from minus 55 degrees Celsius to 105 degrees Celsius. Five optional mounting structures including rivet and grounding stand-off types, four insulation colors and multiple selective gold plating solutions are available to meet customized project demands. Users can complete installation through through-hole soldering on PCBs, and equip matching locking or grounding accessories to realize firm equipment fixation according to actual wiring layout requirements.



This high-density D-SUB connector is widely adopted in industrial control systems, communication equipment, liquid crystal display devices, automotive electronics, precision testing instruments, smart household appliances and computer peripheral products. To maintain long-term stable service performance, operators should avoid overload current beyond 5A rating, forbid violent plugging and unplugging actions, strictly limit working temperature within the specified range, and store unused connectors in dry and ventilated environments to prevent terminal oxidation. All products are produced in ANTENK’s Dongguan manufacturing base with a complete closed-loop production process, covering self-developed precision mold design, high-speed terminal stamping, plastic injection molding, surface electroplating, automatic assembly and comprehensive reliability testing. More than 20 sets of professional laboratory testing equipment conduct electrical, mechanical and environmental aging inspections on each batch to guarantee consistent product precision and stability.



Founded in 2007, ANTENK stands out among global connector suppliers with a complete industrial chain and internationally recognized quality management certifications. As the owner of Guangdong Famous Trademark, our company has obtained UL certification, ISO9001, ISO14001 and IATF16949 automotive industry certification, and all products fully comply with RoHS and REACH global environmental regulations. Our 10000-square-meter factory employs over 250 professional staff, equipped with abundant precision molds, high-speed stamping machines and automatic assembly equipment, enabling us to supply more than 10000 connector specifications and personalized customization services. We hold self-operated import and export rights with over 70 percent of products exported worldwide and can issue formal 13 percent value added tax invoices for global trade partners. Supported by experienced engineering and quality assurance teams, we provide stable delivery schedules, strict quality control and one-stop technical after-sales service for clients across domestic electronic hubs and dozens of overseas regions.



2、Extracted Key Material & Technical Specifications

Glass Filled Flame Retardant PBT Housing

High Conductivity Bronze Contact Terminal

Full Area Nickel Plated Steel Shell

High Voltage Resistant Stamped Pin Terminal
