2.00mm Box Header 90° H=6.40

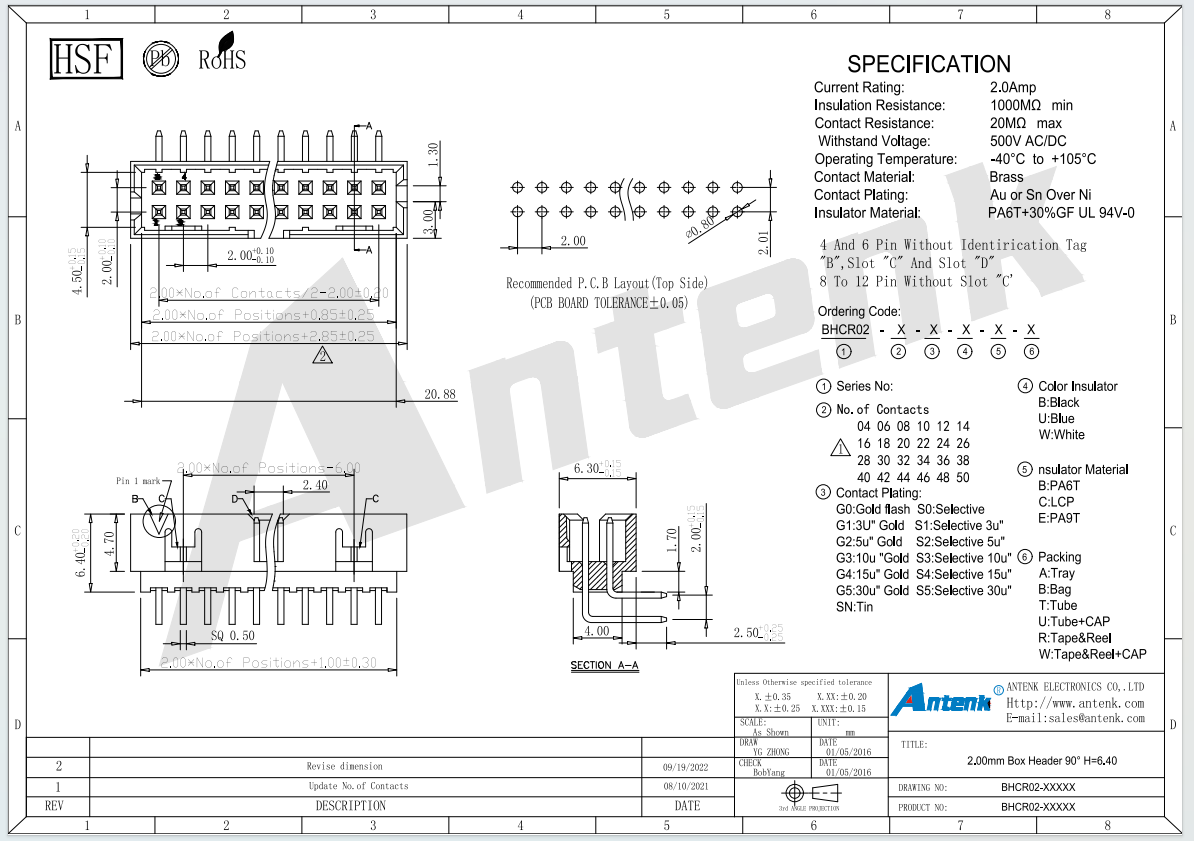

1、This 2.00mm pitch 90 degree right angle box header developed by Huizhou Antenk Electronics Co., Ltd. is designed to achieve stable electrical connection between printed circuit boards and wiring harnesses, serving as a core line-to-board connecting component for electronic equipment. The product features precise 2.00mm pin spacing with an overall installation height of 6.40mm, supporting pin specifications ranging from 4 pins to 50 pins to meet diverse layout demands. Its core electrical indicators include 2.0 Amp rated current, minimum 1000 megaohm insulation resistance, maximum 20 milliohm contact resistance and 500 volt alternating and direct current withstand voltage, and it can work stably in the temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Made of brass contacts with optional gold or tin over nickel surface plating and PA6T plus 30 percent glass fiber flame retardant insulation material certified UL94V 0, the connector delivers excellent high temperature resistance and anti oxidation performance. Users need to install the component on the top side of PCB in accordance with the tolerance standard of plus or minus 0.05 millimeter, align the pin one marking position for accurate positioning before soldering to guarantee reliable circuit transmission.



This box header is widely applied in multiple fields including industrial control equipment, automotive electronic systems, liquid crystal display devices, digital cameras, communication facilities, precision instruments, smart home appliances and computer peripheral products. During application, users must strictly follow two key precautions: never use the product beyond its rated current and specified operating temperature range, and store unused connectors in dry environment to avoid contact pin oxidation, and all application scenarios need to conform to EU RoHS and REACH environmental regulations. Manufactured under standardized production procedures of Antenk Electronics, the whole technological flow covers independent mold research and development, precision brass terminal stamping, plastic injection molding, automatic connector assembly, professional laboratory performance detection and standardized finished product packaging. Every finished unit undergoes multiple rounds of electrical and mechanical testing to eliminate defective products and ensure consistent product stability in mass delivery.



Compared with peer manufacturers, Antenk Electronics holds prominent competitive advantages relying on over 18 years of manufacturing experience since establishment in 2007. The company owns a 10000 square meter production base in Dongguan with more than 250 professional employees, advanced imported precision stamping machines and injection molding equipment, as well as 250 sets of self developed plastic connector molds and 180 sets of precision terminal molds. Certified by ISO9001, ISO14001 and IATF16949 automotive quality management system with UL certification number E472792, our brand Antenk has won the honor of Guangdong Famous Trademark. We are qualified to issue 13 percent value added tax invoices and hold self operated import and export rights, with over 70 percent products exported to global markets. We provide flexible customization on pin count, contact surface treatment and packaging modes including tray tape and reel to satisfy personalized client demands, and our complete in house industrial chain effectively controls product quality and delivery cycle to offer reliable cost effective connecting solutions for global buyers.
