OBD 16P Male Angle Reverse 24V Type 14.6MM

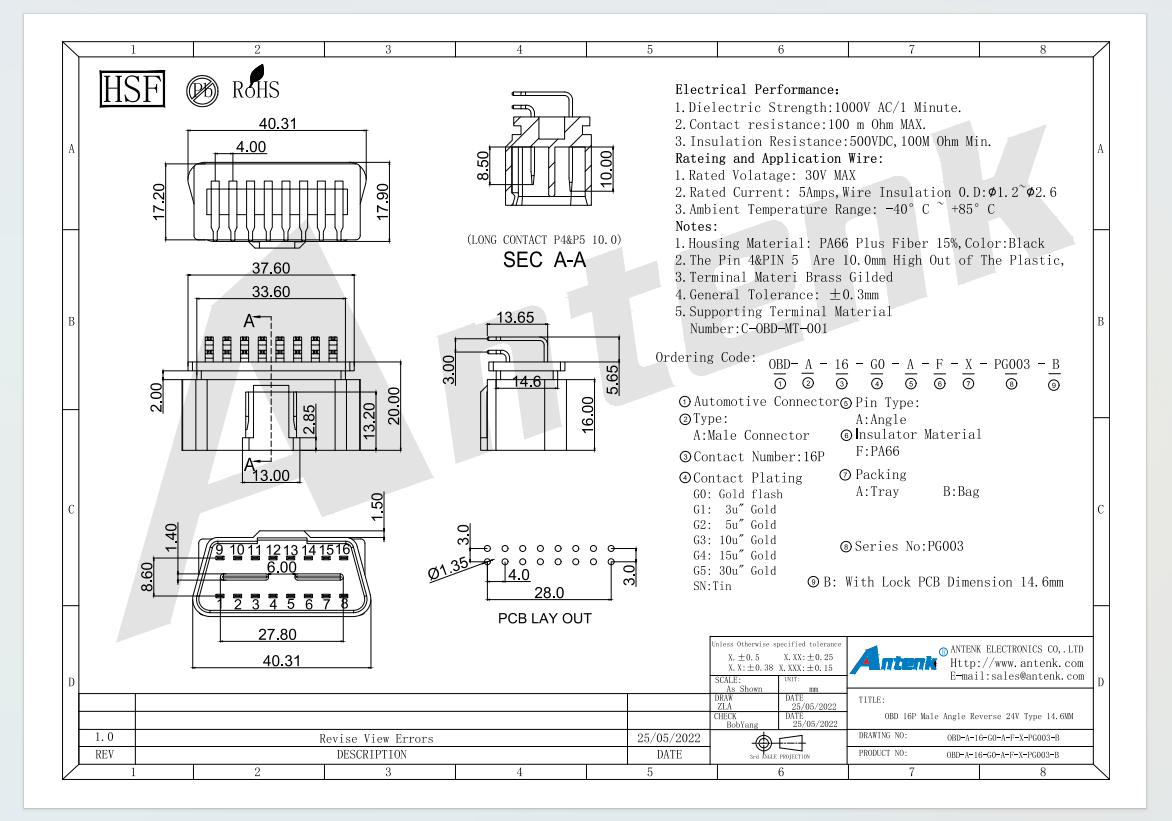

This 16Pin Right Angle Reverse PCB Mount OBD Male Connector independently developed by Antenk is designed for stable automotive circuit signal transmission and vehicle fault diagnosis connection. As a core automotive electronic connector, this product features rated voltage of 30V maximum and rated current of 5 Amps, with outstanding electrical performance including 1000V AC one minute dielectric strength, maximum 100 milliohm contact resistance and minimum 100 megohm insulation resistance under 500VDC. It supports wires with outer diameter ranging from 1.2mm to 2.6mm and can work stably in the temperature range from minus 40 degrees Celsius to 85 degrees Celsius. Adopting right angle reverse structural design with 14.6mm locking PCB dimension, pins 4 and 5 are 10.0mm extended from the plastic shell to guarantee accurate PCB welding positioning. Users can directly solder the terminals to printed circuit boards and pair with matched OBD female connectors to realize seamless electrical connection. Widely applied in automotive diagnostic equipment, automobile electronic control modules, industrial testing instruments, vehicle sensing devices and new energy automotive peripheral electronic components, the product fully complies with RoHS and REACH environmental standards to meet global green trade requirements. Before installation, users must select wires within the specified outer diameter range, avoid overload voltage and current usage, and store the product in dry indoor environment to prevent oxidation of gold-plated terminals and damage to the plastic housing.



All finished products are manufactured through standardized full industrial processes covering precision mold research and development, brass terminal high speed stamping, PA66 plastic injection molding, automatic connector assembly, multi dimensional electrical performance testing and finished product appearance inspection. Founded in 2007, Antenk owns a 10000 square meter production base in Dongguan with complete production workshops including mold manufacturing, terminal stamping, plastic injection molding and automatic assembly. Different from small scale manufacturers with outsourced processing, our brand owns more than 250 sets of plastic molds and 180 sets of precision hardware terminal molds, equipped with professional testing laboratories and 180 sets of automatic assembly equipment to realize full chain independent production from raw material processing to finished product delivery. The product passes UL safety certification, ISO9001, ISO14001 and IATF16949 automotive industry quality system certification, and provides multiple terminal gold plating options such as flash gold, 3u gold and 5u gold to satisfy differentiated customer demands. Our factory holds general taxpayer qualification and independent import and export rights, with over 70 percent of products exported to global markets, which ensures stable product quality, flexible customized service and on time delivery compared with peer manufacturers.



To guarantee long term stable service life of this OBD connector, operators should strictly follow the rated electrical parameters and ambient temperature range during actual application. Excessive current, ultrahigh working temperature and damp storage environment will lead to increased contact resistance, terminal oxidation and plastic aging failure. Antenk has built a professional quality assurance team to conduct strict sampling inspection on dimensional tolerance, electrical performance and environmental resistance of every batch of products, with all dimensional errors controlled within plus or minus 0.3mm as specified in technical drawings. As a well known brand awarded Guangdong Famous Trademark, we can supply more than 10000 kinds of precision connector specifications and provide one stop supporting solutions for global automotive electronics customers. Our products have been recognized by buyers in Europe, Southeast Asia, North America and other regions, and we can provide formal 13 percent VAT invoices, professional technical parameter support and long term after sales service to help global purchasers reduce procurement risks and optimize supply chain management.
