MX4.20mm 180° Wafer Connector Series

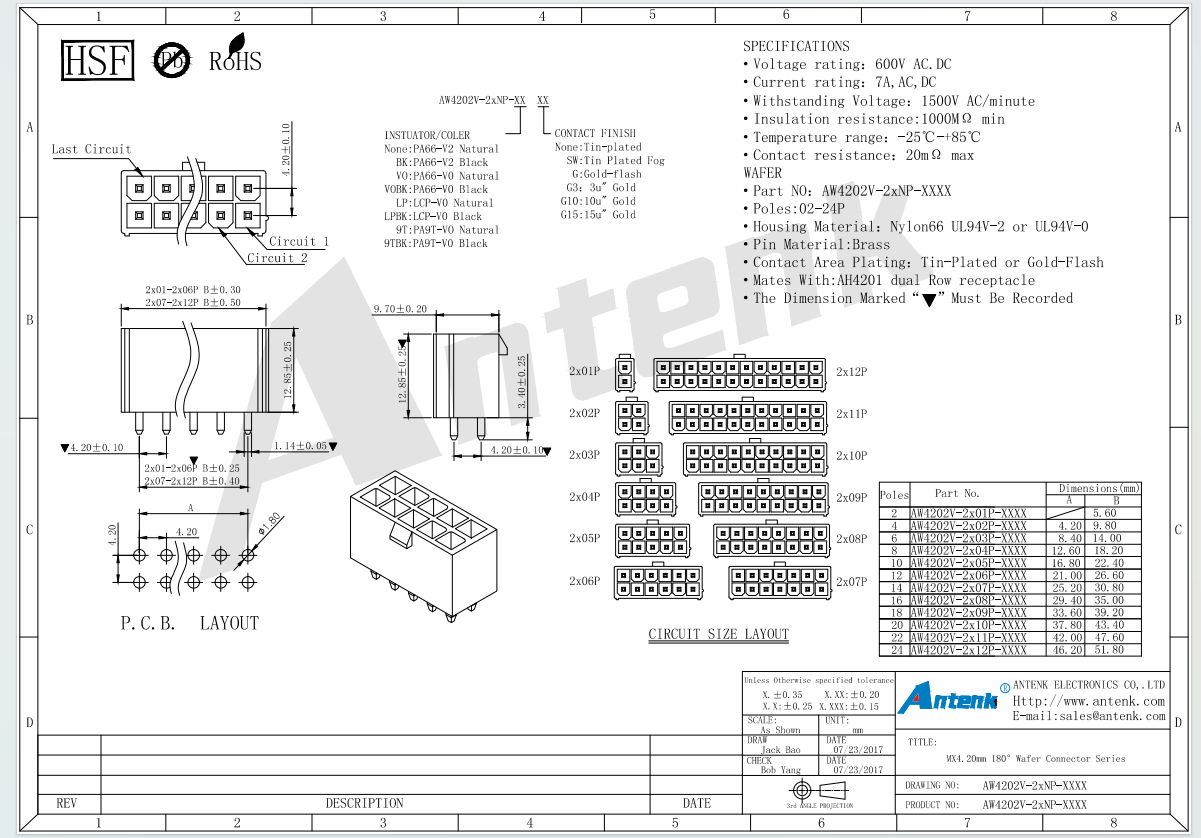

Antenk AW4202 MX4.20mm 180 degree Wafer Connector is developed to achieve reliable wire to board electrical connection for diverse electronic equipment, supporting stable current and voltage transmission between wiring harnesses and printed circuit boards. This series wafer connector offers flexible pole options ranging from 4P to 24P with dual row layout, rated at 600V alternating current and direct current and 7A current carrying capacity. It features outstanding electrical performance including 1500V one minute withstand voltage, minimum 1000 megohm insulation resistance and maximum 20 milliohm contact resistance, operating steadily within a temperature range of minus 25 degrees Celsius to 85 degrees Celsius. The housing adopts Nylon66 material compliant with UL94V 2 or UL94V 0 flame retardant standard, paired with brass pins available in tin plated or gold flash surface treatment for enhanced corrosion resistance and stable conduction. Users should install the connector onto PCB through standard through hole soldering strictly following our official PCB layout drawing, and match it with the corresponding AW4201 dual row receptacle to complete connection. Operators need to avoid excessive soldering heat to prevent nylon housing deformation, and regularly check contact tightness to guarantee long term electrical stability. This connector is widely applied in industrial control devices, digital household appliances, communication equipment, automotive electronics, liquid crystal display modules and precision testing instruments.



As a professional connector manufacturer founded in 2007, Antenk holds prominent competitive advantages over small scale manufacturers relying on full vertical production chain and complete qualification certifications. Our complete production process covers independent mould research and development, brass terminal precision stamping, nylon plastic injection molding, automatic connector assembly and standardized laboratory performance testing. We run a 10000 square meter production base with 250 professional employees, equipped with Taiwan high speed precision stamping machines, Japanese precision plastic injection equipment and over 20 sets of professional testing devices. We own more than 250 plastic connector moulds and 180 precision terminal moulds, supporting customized pole counts, housing colors and contact plating solutions for global buyers. All products comply with RoHS and REACH environmental standards and most items obtain UL safety certification. Our factory has passed ISO9001 ISO14001 and IATF16949 automotive grade quality system certifications, effectively helping clients meet global market access requirements. As a general taxpayer enterprise with independent import and export rights, we can issue 13 percent value added tax invoices, and over 70 percent of our products are exported to global regions with stable bulk order delivery capability.



Owned by Antenk the officially recognized Guangdong Famous Trademark brand, this 4.20mm pitch wafer connector acts as a stable connection bridge between wiring harnesses and circuit boards for signal and power transmission. Our products are well received by electronics manufacturers across major domestic cities and dozens of overseas countries and regions. Before installation, users must confirm voltage current and ambient temperature conditions conform to product rated parameters to avoid overload damage. Backed by our experienced engineering and quality assurance teams, we provide clients with detailed dimensional drawings, PCB layout technical guidance and full lifecycle after sales service. We supply more than ten product categories and over ten thousand connector specifications to fulfill diversified customized demands, implementing strict incoming in process and finished product inspection procedures to control defect rates. Our mature overseas service experience ensures reliable technical support for global partners, helping customers achieve stable product performance in various complex working scenarios and build long term market competitiveness.
