2.54mm Box Header 180° H=9.0 High-Reliability Connector

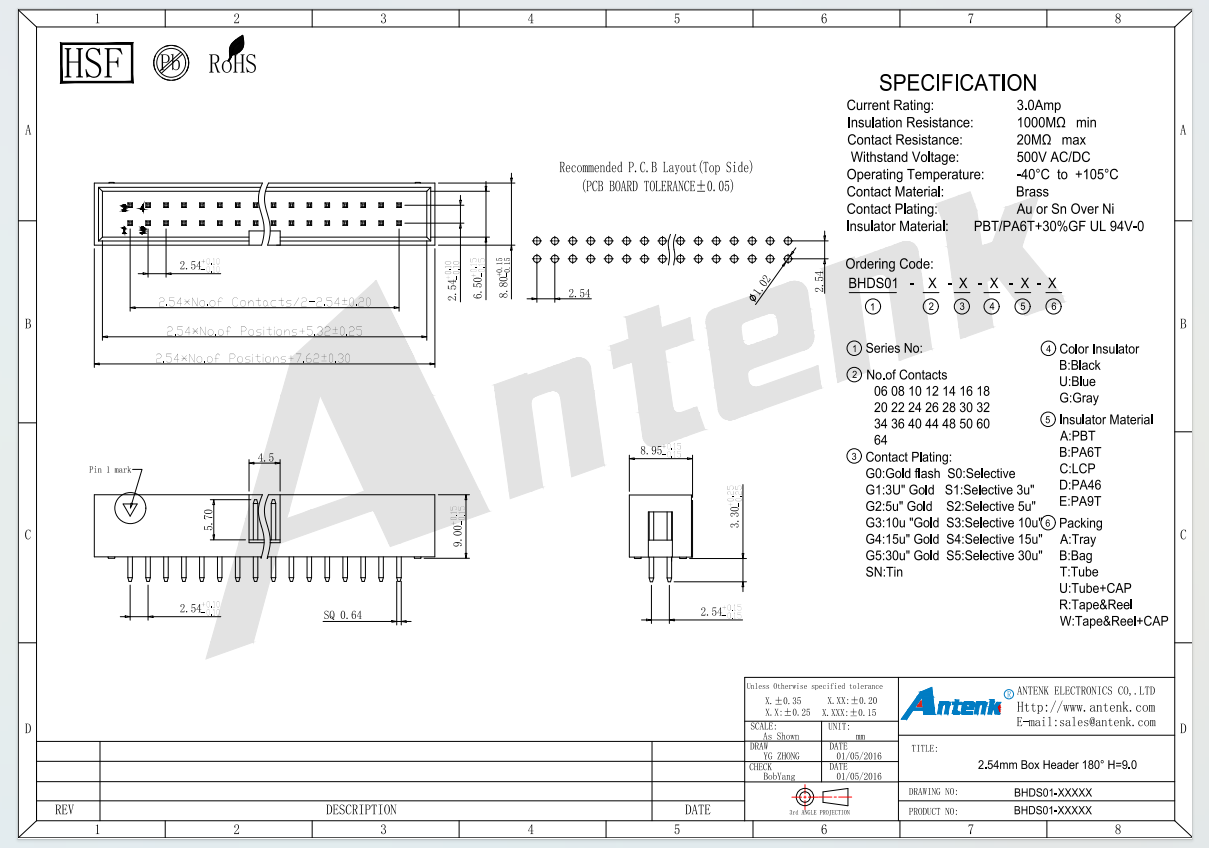

Antenk BHDS01 series 2.54mm Box Header 180° H=9.0 connector is engineered to deliver stable signal and power transmission between printed circuit boards, serving as a reliable board to board connection component for diversified electronic equipment. This single row box header supports multiple contact pin options ranging from 06P up to 64P, with a rated current of 3.0 Amp per contact. It features premium electrical performance including minimum 1000MΩ insulation resistance, maximum 20 milliohm contact resistance and 500V alternating current and direct current withstand voltage, capable of stable operation within a wide temperature range from minus 40 degrees Celsius to 105 degrees Celsius. The contact pins are made of brass with optional gold plating or tin over nickel plating to enhance conductivity and anti oxidation capacity, while the insulator adopts PBT or PA66 material filled with 30 percent glass fiber that meets UL94V 0 flame retardant standard. Users should complete through hole soldering installation strictly in accordance with our standard PCB layout specification and align the Pin 1 mark for correct polarity connection. Operators need to control soldering temperature and time to avoid insulator deformation, and select suitable packaging methods such as tray tape and reel or tube according to automated production demands. This connector is widely applied in industrial control systems, digital home appliances, communication devices, liquid crystal display equipment, automotive electronics and precision testing instruments.



Founded in 2007, Antenk owns remarkable competitive strengths over ordinary connector manufacturers by virtue of our complete vertical industrial chain and comprehensive global quality certifications. Our standardized production workflow covers independent mould development, brass terminal precision stamping, high performance plastic injection molding, automatic connector assembly and strict laboratory performance testing. We operate a 10000 square meter production base with 250 professional staff members, equipped with Taiwan high speed precision stamping machines, Japanese precision plastic injection equipment and more than 20 sets of professional testing instruments. We possess over 250 plastic connector moulds and 180 precision brass terminal moulds, supporting customized pin count, insulator color plating thickness and packaging forms for global buyers. All our products comply with RoHS and REACH environmental requirements, most products have obtained UL safety certification, and our factory has passed ISO9001 ISO14001 and IATF16949 automotive industry quality management system certifications. As a general taxpayer enterprise with independent import and export rights, we can issue 13 percent value added tax invoices, and more than 70 percent of our finished products are exported to overseas markets with stable mass delivery capability.



As a core board to board connector product under Antenk the Guangdong Famous Trademark brand, this 2.54mm pitch straight box header guarantees precise and durable circuit connection for various electronic assemblies. Our products have gained high recognition from electronic manufacturers across major domestic cities and dozens of overseas regions covering Europe Southeast Asia North America and Oceania. Before installation users must confirm the rated current operating temperature and pin definition match practical application scenarios to prevent overload and reverse connection damage. Supported by our professional engineering and quality assurance teams we provide customers with detailed dimensional drawings PCB layout technical guidance and full cycle after sales technical support. We supply more than ten product categories and over ten thousand connector specifications to meet diverse personalized customization needs, implementing strict incoming material semi finished and finished product inspection procedures to effectively control defective rate. Our rich overseas service experience enables us to offer targeted technical solutions for global partners, helping customers maintain stable product performance in complex working environments and build long term market competitive advantages.
