2.54mm Single Row Straight Pin Header High Temp Resistant

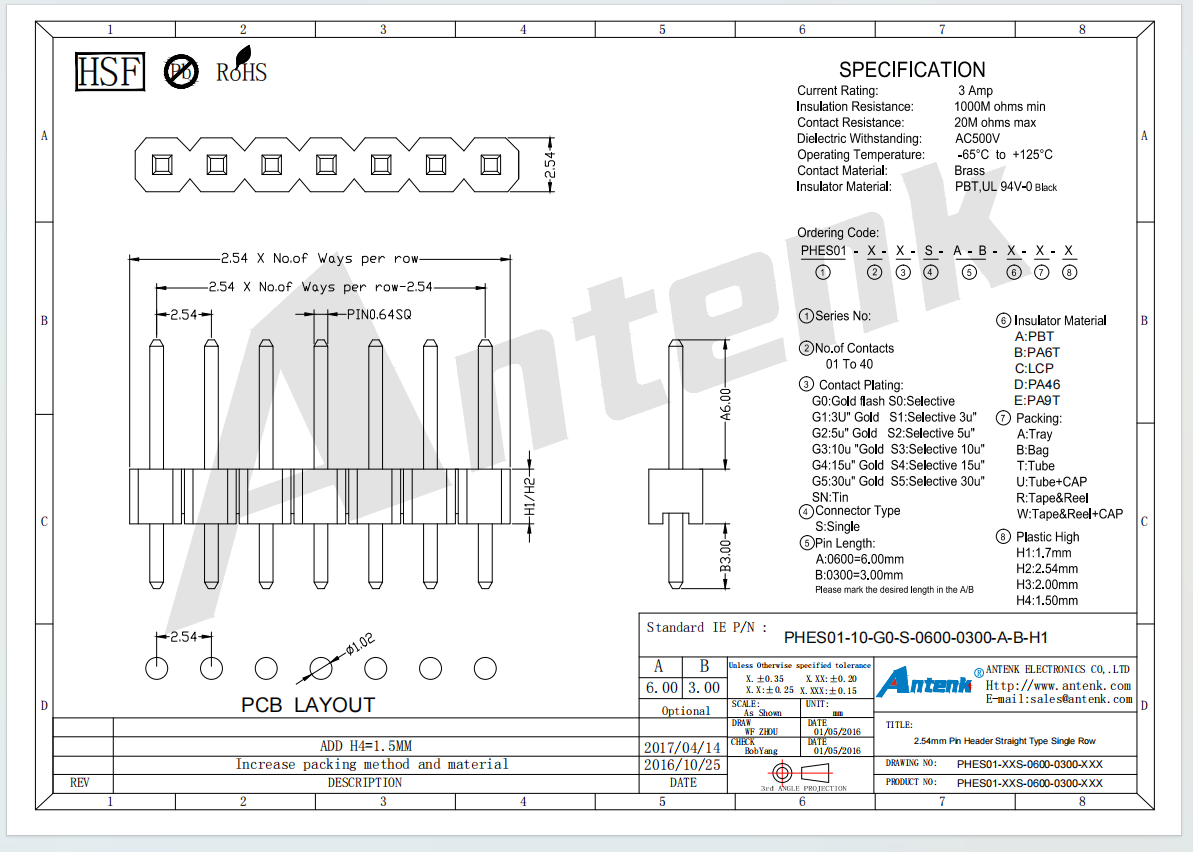

  Antenk PHES01 series 2.54mm single row straight pin header is designed to realize stable board to board electrical connection for various electronic devices, reliably transmitting electrical signals and power between printed circuit boards. This connector supports customizable contact pin quantities ranging from 1 pin to 40 pins with a standard 2.54mm pitch, each pin can bear a rated current of 3 Amp. It delivers excellent electrical performance including minimum 1000 megaohm insulation resistance, maximum 20 milliohm contact resistance and 500V alternating current dielectric withstand voltage, and works stably in an extreme temperature range from minus 65 degrees Celsius to 125 degrees Celsius. The conductive pins are made of brass, with optional gold flash selective gold plating or tin surface treatment to resist oxidation and ensure stable conductivity, while the black insulator adopts UL94V 0 flame retardant PBT material. Users need to finish through hole soldering installation strictly following the official recommended PCB layout, and select appropriate pin lengths and plastic height specifications according to actual assembly space. Operators should control soldering temperature to avoid melting the plastic insulator, and choose packing forms like tray tape and reel tube to match automated or manual production. This pin header is widely used in industrial control equipment, digital household appliances, communication modules, automotive electronics, liquid crystal display devices and precision testing instruments.



Founded in 2007, Antenk boasts prominent competitive advantages over small scale connector manufacturers relying on our complete vertical production chain and authoritative global certifications. Our full production process covers independent mold development, brass terminal precision stamping, high performance plastic injection molding, automatic connector assembly and professional laboratory performance testing. We operate a 10000 square meter production base with 250 experienced employees, equipped with Taiwan high speed precision stamping machines, Japanese precision plastic injection machines and more than 20 sets of professional testing equipment. We own over 250 plastic connector molds and 180 precision brass terminal molds, supporting personalized customization on pin count plating type insulator material pin length and packaging method. All products comply with RoHS and REACH environmental standards, most items pass UL safety certification, and our factory holds ISO9001 ISO14001 and IATF16949 automotive industry quality management system certifications. As a general taxpayer enterprise with independent import and export rights, we can issue 13 percent VAT invoices, and more than 70 percent of our products are exported to global markets with reliable bulk delivery capacity.



As a mainstream board connection component under Antenk the Guangdong Famous Trademark brand, this 2.54mm single row straight pin header provides precise durable and cost effective circuit interconnection solutions for electronic manufacturers worldwide. Our products are well recognized across domestic major electronic cities and dozens of overseas regions including Europe Southeast Asia North America and Oceania. Before installation users must verify the rated current operating temperature and pin dimension match practical application environments to prevent overload damage and assembly failure. Backed by our professional engineering and quality assurance teams, we supply detailed dimension drawings PCB layout guidelines and full lifecycle after sales technical support. We offer more than ten product categories and over ten thousand connector specifications to satisfy diversified customization requirements, implementing strict incoming semi finished and finished product inspection to minimize defective rates. Our abundant overseas service experience enables us to deliver tailored connection solutions for global clients, helping partners maintain stable product performance in harsh working conditions and consolidate long term market competitiveness.
