1.27mm Female Header Dual Row SMT Type(W=3.1 H=2.1

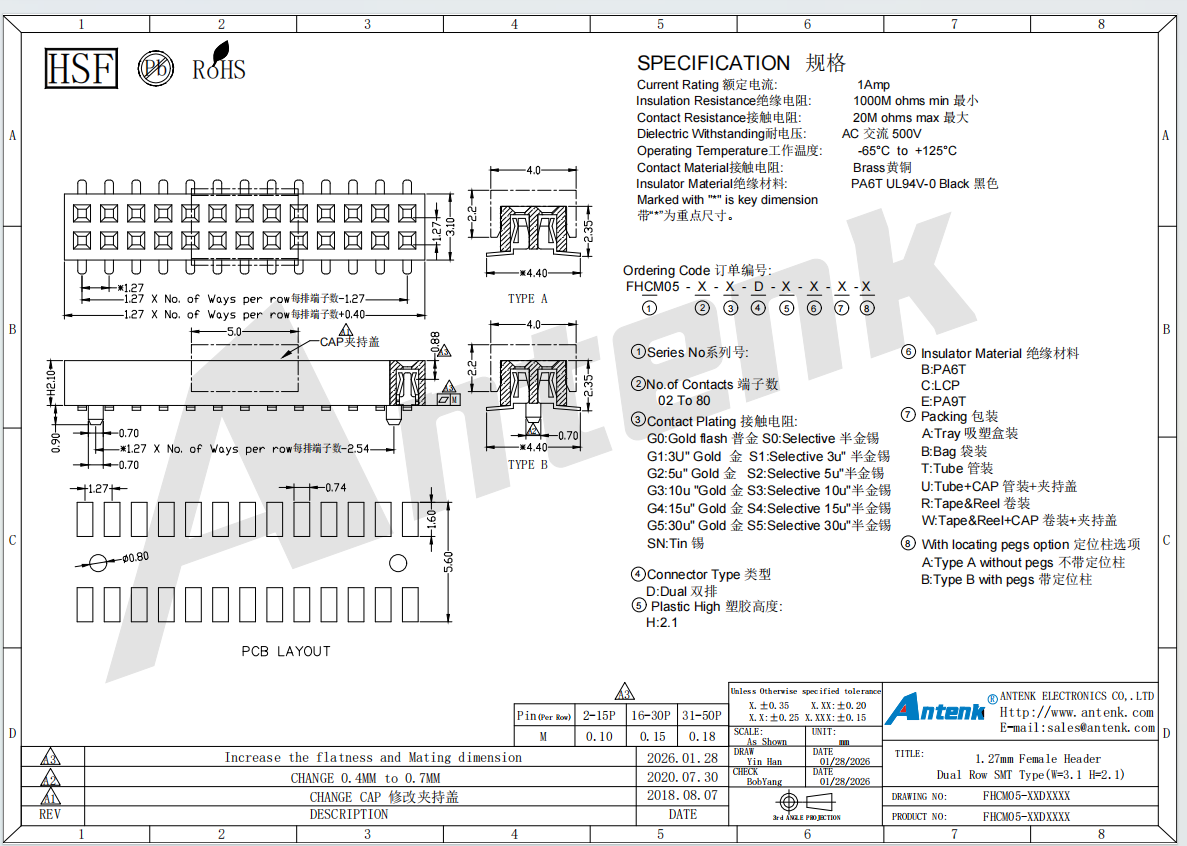

This 1.27mm Dual Row SMT Female Header manufactured by Antenk serves as a stable wire to board connection component that realizes reliable electrical signal and power transmission between printed circuit boards and wiring assemblies. Featuring a standard 1.27mm pitch and dual row structure, this female header supports customizable pin counts ranging from 2 to 80 contacts, and offers two structural types including versions with or without positioning pegs to meet precise SMT mounting requirements. Adopting brass as contact material and black PA6T UL94V 0 flame retardant plastic for the insulator, the product is rated for 1 Amp current, with minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and 500V AC dielectric withstand voltage, and can operate normally within the temperature range from minus 65 degrees Celsius to 125 degrees Celsius. It is mounted on PCB through surface mount technology following the official PCB layout drawing to guarantee precise positioning and firm soldering connection. Users should avoid exceeding the rated current and voltage during operation, prevent long term exposure to high humidity corrosive and high temperature environments, and conduct regular inspection on solder joints to avoid poor contact or insulation failure caused by terminal oxidation and plastic aging.



Antenk boasts prominent competitive advantages over other connector suppliers relying on mature production capacity strict quality control and independent research and development strength. Established in 2007, our enterprise runs production bases covering over 10000 square meters with more than 250 professional employees. We are equipped with Taiwan high speed precision stamping machines imported mold processing equipment precision plastic injection molding machines and automatic assembly devices, owning over 250 sets of plastic connector molds and 180 sets of precision brass terminal molds to support customized adjustments on contact plating insulator height packaging methods and structural design. All products comply with RoHS and REACH environmental standards and most items obtain UL certification. Our factory has passed ISO9001 ISO14001 and IATF16949 automotive industry quality management system certifications, and our proprietary brand Antenk has been awarded the title of Guangdong Famous Trademark. More than 70 percent of our products are exported to global markets, enabling us to provide stable mass delivery professional technical support and flexible customized solutions that small scale manufacturers cannot match.



The whole manufacturing workflow of this SMT female header consists of precision mold development brass terminal stamping multiple options of gold or tin surface plating PA6T plastic injection molding semi automatic and full automatic assembly high standard laboratory performance testing and diversified standardized packaging. Available packaging choices include tray bag tube tape and reel as well as tube or tape reel packaging with protective caps to adapt to manual sampling trial production and automatic SMT mass assembly. This connector is widely adopted in liquid crystal displays digital cameras industrial control equipment communication devices digital home appliances automotive electronics precision instruments computer peripherals and electronic toys. Our products are well received in major domestic electronic cities and dozens of overseas regions across Europe North America Southeast Asia and South America, delivering consistent reliable connection solutions for global electronic manufacturers.
