2.00mm Female Header Single Row Bottom Entry Typel

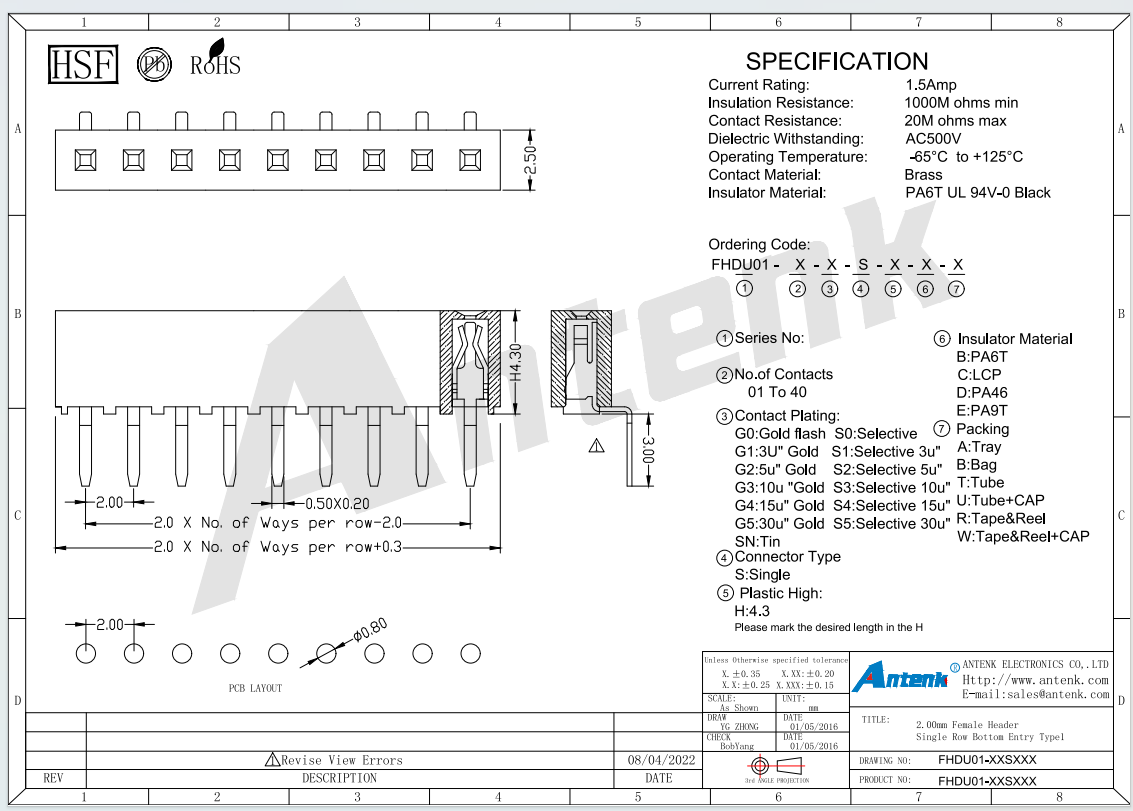

Manufactured by Antenk, the 2.00mm Single Row Bottom Entry Female Header functions as a reliable wire to board connecting component that delivers stable power transmission and uninterrupted signal transfer between printed circuit boards and wiring harnesses. Designed with a standard 2.00mm single row pitch structure, this female header supports customizable contact pin quantities ranging from 1 to 40 positions to satisfy diverse circuit layout demands. Adopting brass as contact material and black PA6T UL94V 0 flame retardant engineering plastic for the insulator, this connector features a rated current of 1.5 Amp, minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and 500V AC dielectric withstand voltage, capable of stable operation within the wide temperature range from minus 65 degrees Celsius to 125 degrees Celsius. It is installed through bottom entry soldering on PCB following the official PCB layout drawing to achieve precise positioning and firm welding fixation. During practical use, users must strictly avoid overload of rated current and voltage, keep the product away from high temperature humid and corrosive environments, and regularly inspect soldering points to prevent terminal oxidation and plastic insulation aging which may trigger poor contact or circuit short circuit faults.



Antenk holds remarkable competitive advantages over most peer connector manufacturers relying on complete industrial chain layout, strong independent research and development capacity and international standardized quality management systems. Established in 2007, our enterprise operates two production bases with a total factory area exceeding 10000 square meters and a professional workforce of more than 250 employees. We are equipped with Taiwan high speed precision stamping machines, imported precision mold processing equipment, high precision plastic injection molding devices and fully automatic assembly machines, owning over 250 sets of plastic connector molds and 180 sets of precision brass terminal molds to support personalized customization on contact plating types, insulator materials, plastic height and diversified packaging solutions. All products comply with RoHS and REACH environmental standards, most items obtain UL safety certification, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. Our proprietary brand Antenk has been awarded Guangdong Famous Trademark, and more than 70 percent of our products are exported globally, enabling us to provide stable mass delivery, professional technical after sales service and flexible customized solutions that small scale manufacturers can hardly match.



The whole production flow of this bottom entry female header covers precision mold design and fabrication, brass terminal stamping forming, optional gold flash selective gold or tin electroplating surface treatment, high temperature resistant PA6T plastic injection molding, automatic assembly, strict laboratory electrical performance testing and diversified standardized packaging. Customers can select tray bag tube tape and reel as well as protective cap attached packaging to adapt to prototype trial production and large scale automated assembly. This connector is widely applied in liquid crystal displays, digital cameras, industrial control equipment, communication facilities, digital home appliances, automotive electronics, precision instruments, computer peripheral devices and electronic toys. Our products are popular in major domestic electronic cities and dozens of overseas regions across Europe, North America, Southeast Asia and South America, earning long term trust and stable cooperation orders from global electronic manufacturers.
