Machined Socket connectors 2.54 mm: MFHES series

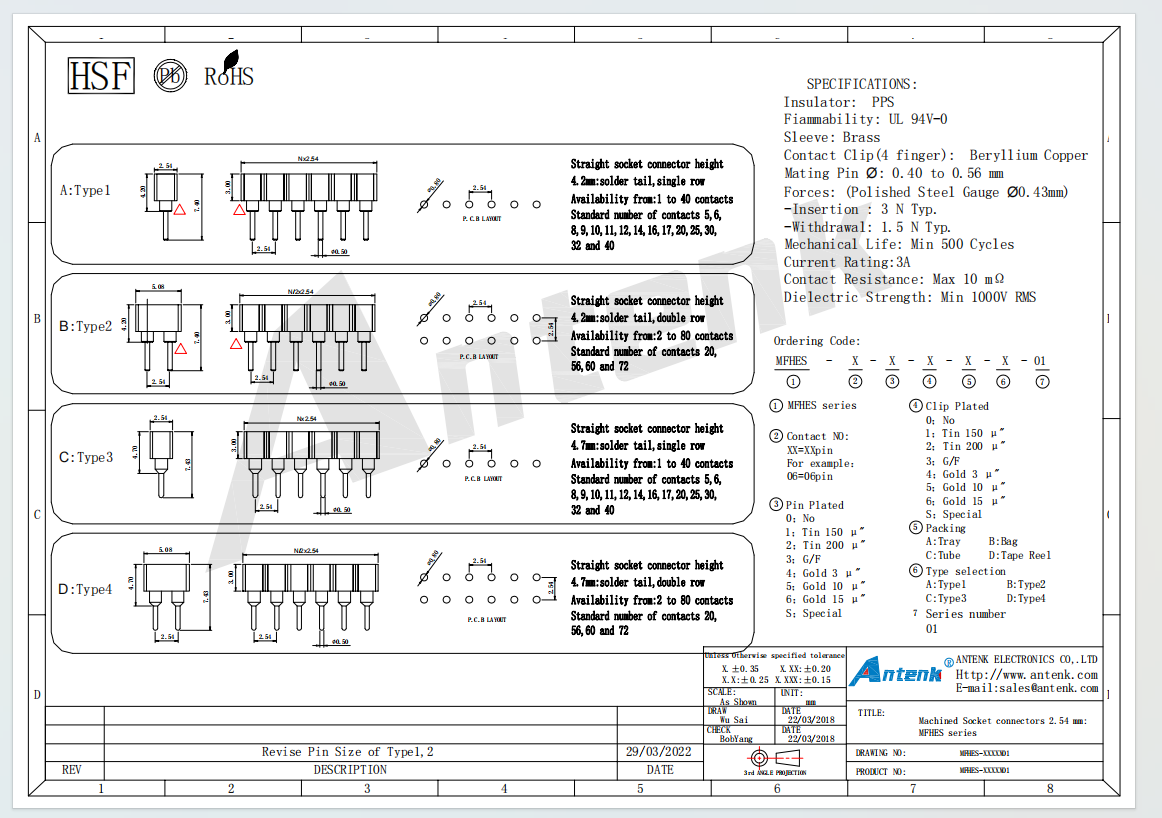

Our 2.54mm MFHES Series Machined Straight Socket Connector developed by Antenk Electronics is engineered for reliable PCB-to-circuit connection, featuring four configurable types to match diverse layout demands. Type1 and Type3 adopt single-row pin design with soldering tail heights of 4.2mm and 4.7mm respectively, supporting 1 to 40 contact pins; Type2 and Type4 are double-row structures with the same two height options, available from 2 to 80 pins to meet high-density wiring needs. Each connector adopts standardized 2.54mm pin pitch for easy PCB layout mounting, with an insertion force of 3N and withdrawal force of 1.5N to guarantee stable plugging performance within 500 mechanical mating cycles. Rated at 3A current with maximum 10 milliohm contact resistance and 1000V RMS dielectric strength, this series complies with UL94V-0 flame retardant standard and RoHS environmental requirements, which effectively avoids short circuit and insulation failure risks in electronic operation. Users can select specified pin plating including tin or gold with different thicknesses and packaging methods such as bag, tray, tube or tape reel according to actual assembly scenarios, and strictly follow rated electrical parameters during installation to prevent overload damage.



Manufactured under rigorous standardized technological workflows, our connectors go through precise terminal stamping, independent mold design and fabrication, injection molding, automatic assembly and professional laboratory performance testing in our in-house workshops. Equipped with Taiwan high-speed precision punching machines, imported mold processing equipment and over 180 sets of automatic product assembly machines, we achieve strict dimensional tolerance control of ±0.35mm for length and ±0.25mm for width, ensuring high consistency among bulk products. Unlike ordinary generic connectors from other manufacturers, Antenk holds complete independent intellectual property rights, owns more than 250 plastic connector molds and 180 precision hardware terminal molds, enabling customized pin count, surface plating and connector structure services. Our factory has obtained ISO9001, ISO14001 and IATF16949 quality management system certifications with UL certification E472792, all products pass full environmental and safety testing, over 70 percent of our items are exported globally with stable quality recognized by worldwide buyers, and our self-owned brand has been awarded Guangdong Famous Trademark for reliable manufacturing strength.



This MFHES connector series has wide application coverage across consumer electronics, industrial control, automotive electronics, communication equipment and smart home appliances. It can be widely applied in liquid crystal display devices, digital cameras, mobile storage products, digital home appliances, computers, audio equipment, air conditioners, washing machines, precision instruments and automotive electronic modules, delivering stable signal and power transmission for various electronic terminal products. Our diversified product portfolio covers over 10000 specifications of precision connectors, with professional engineering and quality assurance teams providing pre-sales technical support and after-sales quality tracking. Whether for small-batch prototype development or large-volume mass production, we can deliver stable, cost-effective and environmentally compliant connector solutions to global customers from Europe, Southeast Asia, North America and other regions, building long-term trustworthy cooperative partnerships with worldwide electronic manufacturers.
