Diamond F1 Spray Gun for Grooves

5 month ago
9 0
Product details
Product attributes
Debelle Diamond F1 manual coating machine   -For Groove
Custom electrostatic spray gun exclusively for irregular, deep-recessed and hollow complex metal workpieces, fully covering narrow grooves and intricate cavities with no bare substrate left.
Equipped with three exclusive core coating technologies and a 29KHz high charging frequency module, featuring ultra-precise film thickness fine-tuning for hard-to-coat profiled parts.
Peak powder deposition efficiency reaches 85%, supporting rapid 30-second color switching and one-click retrieval of customized cavity spraying parameters.

Diamond F1 Groove Coating Demonstration

Core advantages of the powder coating machine
Debelle Diamond F1 powder coating machine for sale
Four customized core strengths:
1.30-second ultra-fast color change paired with one-click cavity spraying parameter memory shortens downtime when switching different irregular workpiece batches.
2.29KHz enhanced high-frequency charging weakens Faraday cage shielding inside deep cavities, greatly boosting powder adsorption on inner walls of complex workpieces and cutting material waste.
3.Special optimized AI intelligent control chip delivers adjustable soft electrostatic output, preventing excessive powder buildup on narrow deep grooves of complex parts.
4.3 exclusive pre-programmed spraying modes for hollow aluminum, stamped irregular hardware and deep-groove metal components, one-click scene switch without repeated debugging.

Applicable-scenarios

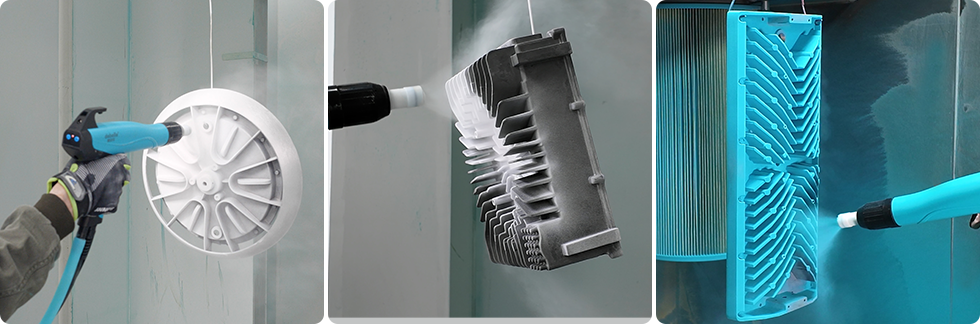

Ribbed Castings and Grooved Panel Applications

Technical-Explanation

essenceEssence I Precision Spray PTCPrecision Powder Control Technology
PTC Precision Powder Control Technology · Micro scale Intelligent Manufacturing


accurate
Accurate I Film thickness precision CVT constant voltage technology
Intelligent Data Package · One click Accurate Matching


Ruthless
Exclusive research and development of 29KHz high-frequency charging technology
Efficient powder feeding: Exclusive research and development, using 29KHZ charging technology, super strong penetration power, powder penetration groove. Compared with the conventional 16-20KHZ in the industry, the powder charging ability is geometrically improved, with a one-time powder loading rate of up to 80%, significantly reducing powder consumption and directly saving production costs.

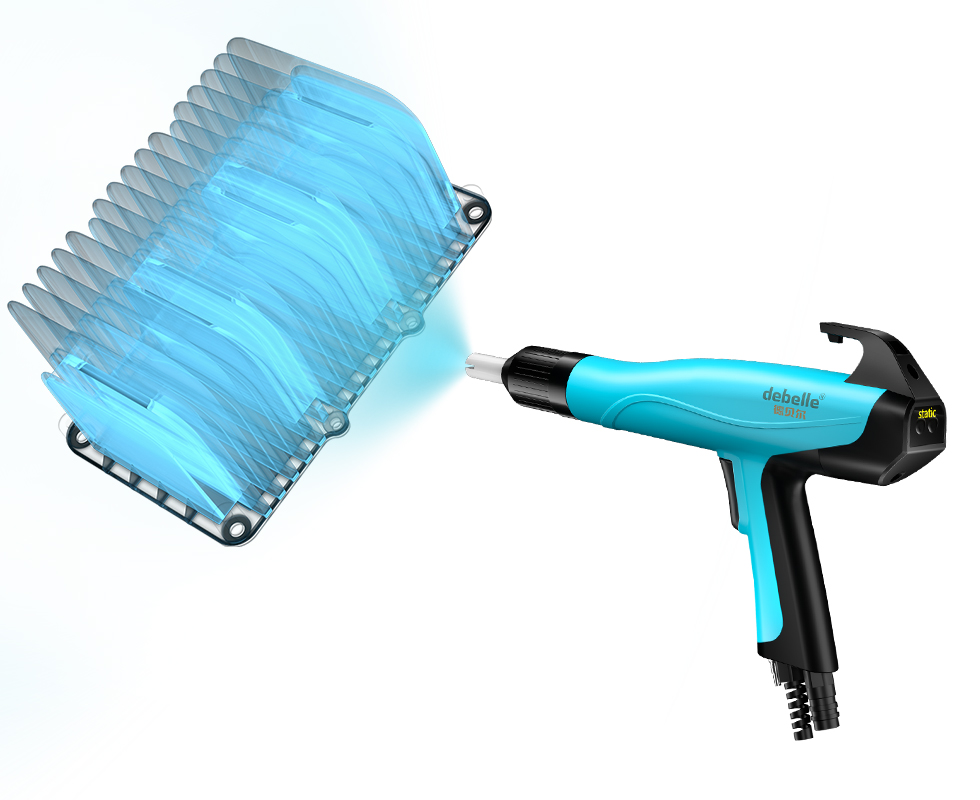

Handheld Gun Spraying a Finned Component


• Essence I Precision Spray PTC Precision Powder Control Technology
• 50 μ m digital valve precision powder pump: equipped with intelligent spraying system, one click operation, achieving high-quality spraying
• Secondary stabilization: Stabilize the airflow and powder flow, eliminate fluctuations, and ensure uniform and consistent powder output

Electrostatic Particle Flow into Recesses

• Accurate I Film thickness precision CVT constant voltage technology
• Constant voltage: In traditional technology, as the distance between the needle and the workpiece increases, both voltage and current are simultaneously increased to maintain the powder charge. However, at the negative angle position, high current exacerbates the Faraday cage effect, leading to powder repulsion and powder failure. Constant voltage technology, through AI intelligent control chips, coordinates real-time adjustment of current, voltage, and power. It can automatically adjust current and stabilize voltage according to the distance between the gun needle and the workpiece, ensuring stable powder output, uniform atomization, consistent powder feeding, and high quality.
• Energy Fortress: "Stable stabilizer", stabilizes airflow and powder flow, eliminates fluctuations, and effectively improves powder loading

Spray Distance and Electrical Output Curves

• Exclusive research and development of 29KHz high-frequency charging technology
• Efficient powder feeding: Exclusive research and development, using 29KHZ charging technology, super strong penetration power, powder penetration groove. Compared with the conventional 16-20KHZ in the industry, the powder charging ability is geometrically improved, with a one-time powder loading rate of up to 80%, significantly reducing powder consumption and directly saving production costs.

Finned and Recessed Part Geometry


Product Specifications


     Input voltage:  AC100-240V      Display mode:  LED screen
     Output electrostaticvoltage:   0-100kV      Manual singlegun weight:   385g
     Output electrostaticcurrent:   0-100uA      Working pressure:   6-8kg
     Output electrostaticfrequency:   29kHz      Air consumption:   0.2 m³/min
     Powder output:   750g/min      Operating Temperature:   -20°C-65°C
     Adjustment method:   Numerical Control Adjustment      Rated power:   50W
     Packing Specification:   475*540*1080mm      Controller Specification:   175*175*250mm
     Whole machinespecifications:   420*530*1050mm
