SMT Dual Row Header 1.27mm Pitch Precision Connector

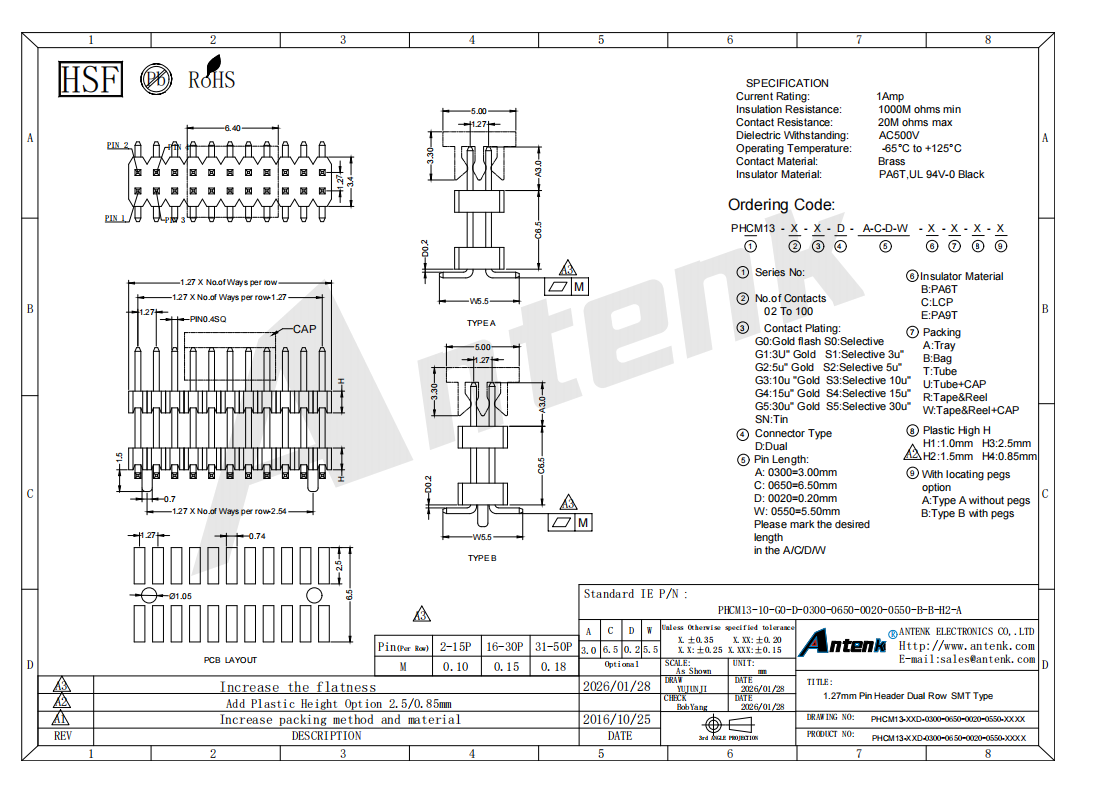

This 1.27mm dual row SMT pin header developed by Antenk Electronics is a classic board to board connecting component designed to realize stable electrical signal and power transmission between printed circuit boards. The product adopts a standard 1.27mm pitch design, supporting contact pin quantities ranging from 2 pins to 100 pins, with two structural types available including version without locating pegs and version with positioning pegs to meet different PCB mounting demands. It is rated for 1A working current, with insulation resistance no less than 1000 megaohms, maximum contact resistance of 20 milliohms and 500V dielectric withstand voltage, capable of steady operation within the temperature range from minus 65 degrees Celsius to 125 degrees Celsius. The insulating body is made of black PA66 material reaching UL94V-0 flame retardant grade, paired with brass pins with multiple selective gold plating options to guarantee stable conductivity and anti oxidation performance. Users can paste the pin header onto designated PCB pads through surface mount technology during circuit board assembly, fix components via optional locating pegs to avoid deviation, then mate with corresponding female connectors to complete circuit connection. All products comply with RoHS and REACH environmental regulations. During usage, users shall avoid excessive plugging force to prevent pin bending, and match the operating temperature within the specified range to avoid insulation aging and short circuit risks.



Antenk Electronics owns outstanding competitive advantages over other connector manufacturers in this pin header field. Founded in 2007, our company runs production bases in Shenzhen and Dongguan covering over 10000 square meters with 250 experienced employees. We introduce Taiwan high speed precision stamping equipment and imported plastic injection molding machines, independently completing the whole production process including mold development, brass terminal stamping, plastic injection molding, surface gold plating treatment, automatic assembly and strict laboratory performance testing. We possess more than 250 sets of plastic connector molds and 180 sets of precision hardware molds, supporting flexible customization on pin length, plating thickness, plastic height and packaging methods. Our factory has passed ISO9001 ISO14001 and IATF16949 quality management certifications, and most products gain UL safety certification under certificate number E472792. As a general taxpayer with independent import and export rights, we can issue 13 percent value added tax invoices, and our self owned ANTENK brand is awarded Guangdong Famous Trademark. More than 70 percent of our finished products are exported globally, ensuring stable quality, on time delivery and professional technical support unavailable from most small sized manufacturers.



This dual row SMT pin header enjoys wide application scenarios across various electronic industries. It is widely applied in liquid crystal display devices, digital cameras, communication equipment, industrial control modules, mobile storage devices, digital home appliances, electronic toys, computer peripheral equipment, automotive electronic systems, precision instruments and testing meters. Before delivery, each batch of pin headers undergoes strict tests including high low temperature cycling, tensile resistance, insulation performance and flame retardant inspection, with multiple packaging options such as tray tape and reel and tube to satisfy different automated production requirements. We can provide personalized dimension and surface treatment customization for global clients, and our reliable connecting solutions have won long term trust from buyers in Europe, North America, Southeast Asia and other regions around the world.
