1.27mm Dual Row Angle SMT Pin Header for PCB Mounting

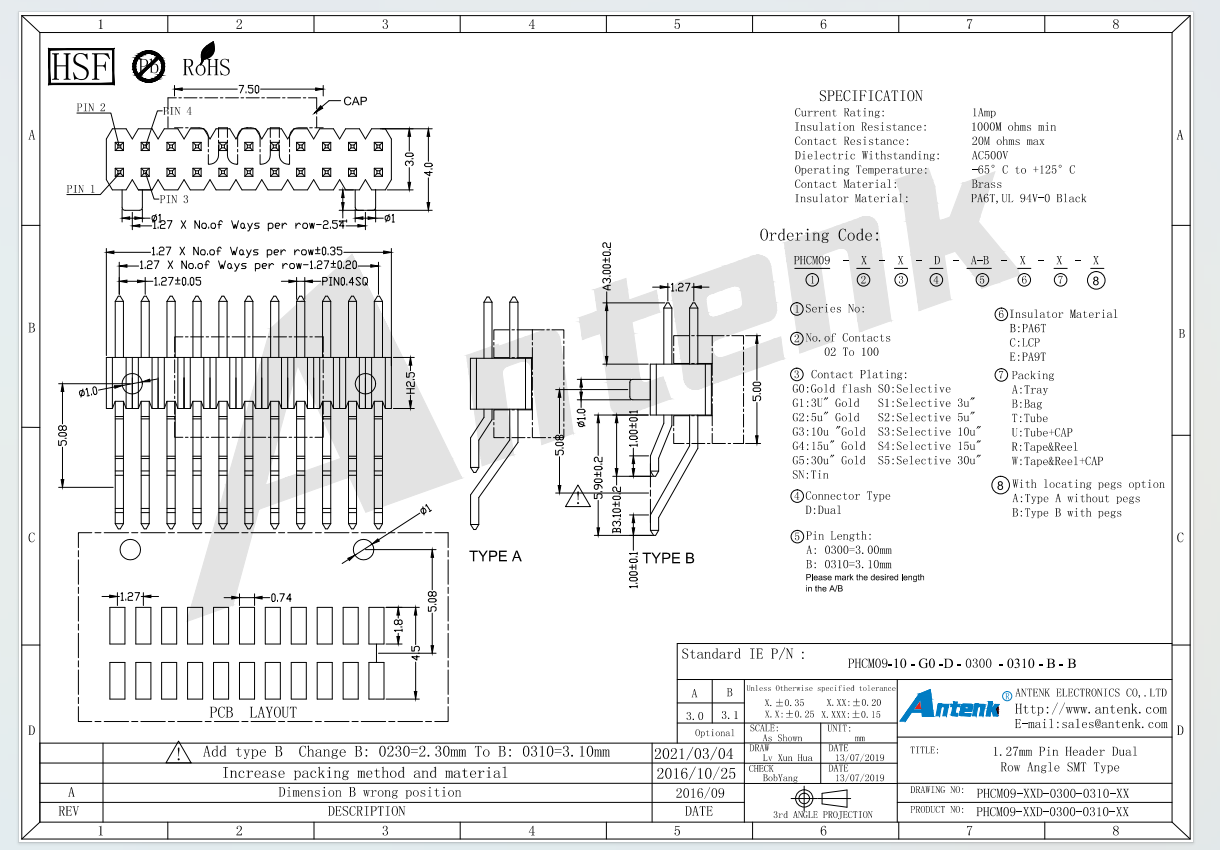

Manufactured by Antenk Electronics, this 1.27mm dual row right angle SMT pin header is a professional board-to-board connector that realizes stable signal transmission and power connection between printed circuit boards. Adopting standard 1.27mm pitch design, this connector supports 2 to 100 contact pins, and provides two structural options including types with and without locating pegs to ensure precise PCB mounting. It is rated at 1 Amp working current, with insulation resistance of minimum 1000 megaohms, maximum contact resistance of 20 milliohms and 500V AC dielectric withstand voltage, stably operating under temperatures ranging from minus 65 degrees Celsius to 125 degrees Celsius. The insulating body is made of black PA6T material complying with UL94V-0 flame retardant standard, while brass pins are available in multiple selective gold plating and tin plating options to guarantee outstanding electrical conductivity and long-term anti-oxidation performance. During application, users install the connector onto PCB pads through SMT reflow soldering process, use optional locating pegs to avoid assembly offset, then mate it with matched female connectors to complete circuit connection. All products meet RoHS and REACH environmental requirements. Users should avoid excessive plugging force to prevent pin bending, and ensure the working temperature stays within the specified range to prevent plastic aging and circuit short-circuit failure.



Antenk Electronics boasts prominent competitive strengths over other connector manufacturers in the global industry. Established in 2007, our enterprise operates two production bases in Shenzhen and Dongguan covering more than 10000 square meters with 250 experienced professional staff. Equipped with Taiwan high-speed precision stamping machines, imported plastic injection molding equipment and a full set of professional testing devices, we independently complete the entire production flow including mold research and development, brass terminal stamping, plastic injection molding, electroplating surface treatment, automatic assembly and strict laboratory reliability inspection. We own over 250 sets of plastic connector molds and 180 sets of precision hardware terminal molds, enabling flexible customization on pin length, plating thickness, insulator material and packaging methods for global buyers. Our factory has passed ISO9001, ISO14001 and IATF16949 quality management system certifications, and most products are certified by UL safety standard with certificate number E472792. As a general taxpayer with self-operated import and export rights, we can issue 13 percent VAT invoices, and our proprietary ANTENK brand has been honored as Guangdong Famous Trademark. Over 70 percent of our products are exported worldwide, delivering consistent product quality, punctual delivery and comprehensive technical support that most small-scale manufacturers cannot provide.



This dual row right angle SMT pin header covers a wide range of application fields across diverse electronic industries. It is extensively applied in liquid crystal display equipment, digital cameras, communication devices, industrial control modules, mobile storage products, smart home appliances, electronic toys, computer peripheral equipment, automotive electronic assemblies, precision instruments and various intelligent testing meters. Before shipment, every batch of connectors undergoes rigorous tests including high-low temperature cycling, tensile resistance, insulation performance and flame retardant inspection. Multiple packaging choices such as tray, bag, tube and tape reel are offered to fit automated mass production demands. We provide personalized structural and surface treatment customization services for global customers, and our reliable and cost-effective connection solutions have gained lasting recognition from purchasers in Europe, North America, Southeast Asia, South America and other regions around the world.
