MX3.0mm 90° With Fork Wafer Connector Series

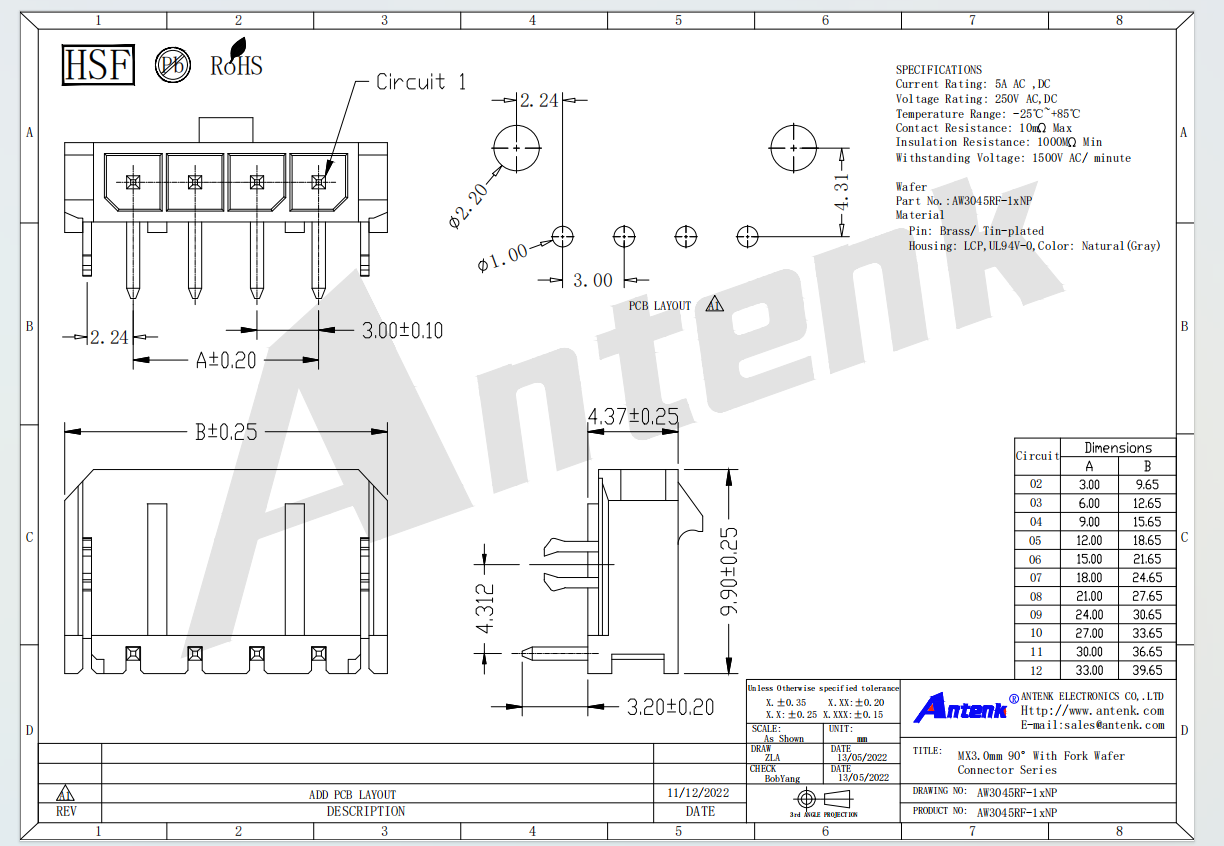

Launched by Huizhou Antenk Electronics Co., Ltd, the MX3.0mm 90 Degree Fork Type Wafer Connector is a reliable line-to-board connection component engineered for secure PCB mounting. This right-angle wafer connector features a 3.0mm pitch design with fork-style terminals for stable soldering onto circuit boards, available in specifications ranging from 2-pin to 12-pin to meet diverse circuit layout demands. Rated for 5A DC current and 250V AC/DC voltage, it works steadily within a wide temperature range of -25℃ to +85℃. With maximum contact resistance of 10 milliohm and minimum insulation resistance of 1000 megaohm, the product withstands 1500V AC dielectric voltage for one minute to guarantee electrical safety. Adopting standard PCB layout dimensions and precise dimensional tolerances, the connector supports easy surface mounting and accurate positioning during assembly. Users only need to align its fork pins with reserved PCB pads and complete wave soldering or reflow soldering to finish stable electrical connection, which greatly simplifies manual and automated production operations.



Manufactured via standardized full industrial workflows including precision mold development, terminal high-speed stamping, plastic injection molding, automatic assembly and strict laboratory performance testing, this connector complies with RoHS and REACH environmental directives, and most items obtain UL certification under certificate number E472792. Our company owns complete production equipment including precision stamping machines, plastic injection machines and automated assembly equipment, with self-developed more than 430 sets of precision molds to realize stable mass production. Different from generic connector suppliers, Antenk boasts a professional technical and quality assurance team, ISO9001, ISO14001 and IATF16949 certified factory, general taxpayer qualification for 13% VAT invoice issuance and independent import and export rights. Over 70 percent of our products are exported globally, enabling us to deliver cost-effective, stable and customized connector solutions with strict quality control compared with peer manufacturers. The product is widely applied in liquid crystal displays, digital cameras, industrial control equipment, digital home appliances, automotive electronics, communication devices, precision instruments and household electrical equipment.



To extend service life and avoid safety risks, several usage precautions should be followed during practical application. Operators must match the connector’s rated current and voltage with circuit parameters to prevent overload burnout; assembly shall be conducted within the designated operating temperature range to avoid plastic housing deformation or terminal oxidation. The LCP UL94V-0 flame-retardant housing and tin-plated brass pins deliver excellent anti-corrosion, flame-resistant and conductive performance, effectively resisting harsh working environments. All finished products undergo strict tests on insulation, voltage resistance and contact stability before delivery. Supported by our 10000-square-meter production base, 250 professional staff and abundant automated production facilities, Antenk provides more than 10000 connector specifications for global buyers, relying on independent intellectual property and well-known provincial brand advantages to supply long-term stable and high-quality connection components for worldwide electronic manufacturers.
