PLCC DIP Type Socket Connector for Electronic Boards

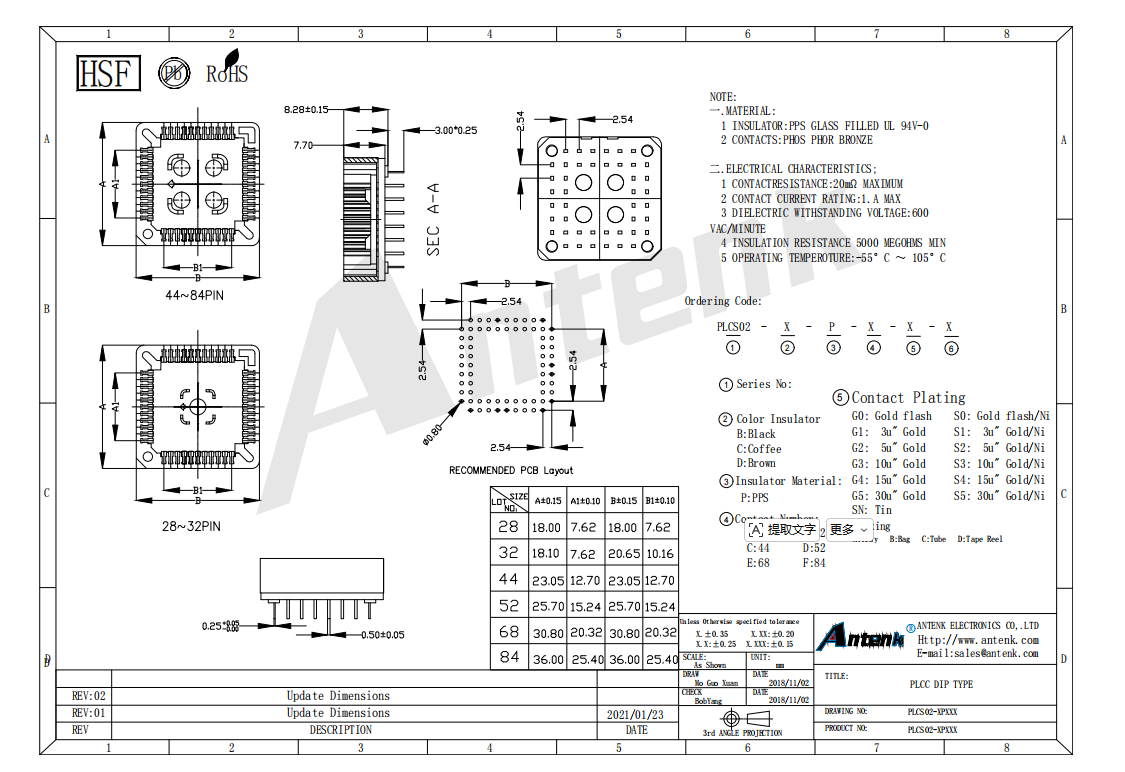

Developed and manufactured by Huizhou Antenk Electronics Co., Ltd, the PLCC DIP Type IC Socket serves as a reliable connecting component to firmly mount PLCC packaged chips onto printed circuit boards, achieving stable electrical transmission between integrated circuits and circuit systems. This series supports multiple pin specifications ranging from 28 pin to 84 pin with precise dimensional tolerances, and provides standard recommended PCB layout to simplify customer circuit design. Electrically, the product features a maximum contact resistance of 20 milliohm and a rated current of 1A per contact, withstanding 600V AC voltage per minute and delivering minimum insulation resistance of 5000 megaohms. It can operate steadily in an extreme temperature range from minus 55 degrees Celsius to 105 degrees Celsius, adapting to complex industrial working environments. Users only need to insert the DIP pins of the socket into pre reserved PCB holes and complete wave soldering fixation, then plug the PLCC chip into the socket to finish circuit connection, which enables convenient chip replacement and maintenance without repeated welding operations.



The whole production process of this PLCC DIP socket covers precision mold research and development, phosphor bronze terminal high speed stamping, high temperature resistant plastic injection molding, surface precious metal plating, automatic assembly and strict laboratory electrical performance testing. All products comply with RoHS and REACH environmental standards and most specifications pass UL safety certification with certificate number E472792. Different from ordinary small scale connector manufacturers, Antenk owns a 10000 square meter production base in Dongguan with more than 250 professional employees and complete sets of advanced production and testing equipment. Our factory holds general taxpayer qualification to issue 13 percent VAT invoices and independent import and export rights, with over 70 percent of products exported worldwide. Certified by ISO9001 ISO14001 and IATF16949 quality management systems, we rely on abundant self developed precision molds and professional quality control teams to provide stable customized solutions with shorter lead time and more consistent product yield than peer suppliers. This socket is widely adopted in industrial control equipment, communication devices, digital home appliances, automotive electronics, precision instruments, liquid crystal display equipment and data storage products.



Several usage precautions must be followed to guarantee long term service life and operational safety. Users shall strictly follow the rated current and voltage parameters to avoid circuit overload which may cause contact burnout and insulator damage. Avoid violent plugging and unplugging of chips to prevent deformation of phosphor bronze terminals and attenuation of plating layer conductivity. The glass filled PPS UL94V 0 insulator effectively resists high temperature deformation, while optional multiple gold plating thicknesses can reduce contact oxidation and ensure stable signal transmission for long term use. Before delivery every batch of sockets undergoes strict tests including contact resistance insulation resistance and voltage resistance inspection. As a well known brand honored as Guangdong Famous Trademark, Antenk supplies more than 10000 connector specifications globally, delivering reliable cost effective PLCC sockets with flexible color and surface plating customization services to electronic manufacturers across the world.
