I. Classification and Composition
Gear reducer assembly components are typically divided intocore transmission partsandauxiliary functional parts:
1. Core Transmission Parts
• Gear Sets (Gears)
• Spur/Helical Gears: Transmit power while altering speed and torque.
• Planetary Gears: Used in high-precision, high-torque applications (e.g., planetary reducers).
• Worm Gears: Achieve large reduction ratios and self-locking (e.g., worm gear reducers).
• Shaft System (Shafts)
• Input/Output Shafts: Connect motors and loads to transfer rotational motion.
• Intermediate Shafts: Support gears and transmit power in multi-stage reducers.
• Bearings
• Rolling Bearings(e.g., deep groove ball bearings, tapered roller bearings): Support shafts and reduce friction.
• Plain Bearings: Used in low-speed, heavy-load scenarios (e.g., large industrial reducers).
2. Auxiliary Functional Parts
• Housing (Gearbox Body)
• Made of cast iron or aluminum alloy, it protects internal components and fixes gear positions.
• Sealed design prevents lubricant leakage and external contaminant ingress.
• Seals
• Oil Seals(e.g., radial lip seals): Prevent lubricant leakage.
• O-Rings: Seal housing joints against dust and water.
• Lubrication System
• Lubricating Oil/Grease: Reduces wear on gears and bearings.
• Oil Level Gauges: Monitor lubricant levels.
• Oil Pumps (Optional): Forced lubrication in high-speed or heavy-load reducers.
• Fasteners
• Bolts, nuts, and washers: Secure housing and components.
• Keys/Splines: Connect shafts and gears to prevent relative rotation.
• Accessories
• Breather Valves: Balance internal/external pressure to prevent seal failure.
• Drain Plugs: Facilitate lubricant replacement.
• Mounting Brackets: Fix reducers to equipment or bases.
------
II. Key Component Functions
1. Gear Sets (Gears)
• Role: Achieve speed reduction/increase and torque amplification via gear ratios.
• Design Considerations:
• Tooth profile (involute is most common) and module (determines gear size) must match.
• Materials: High-strength alloy steel (e.g., 20CrMnTi) with carburizing and quenching for wear resistance.
2. Bearings
• Role: Support shafts, reduce rotational friction, and ensure smooth transmission.
• Selection Criteria:
• Load type (radial/axial/combined).
• Rotational speed (high-speed bearings require low-friction designs).
• Environment (special materials for high-temperature or corrosive conditions).
3. Housing
• Role:
• Protect internal components from external impacts.
• Maintain lubrication and prevent oil leakage.
• Design Requirements:
• Sufficient rigidity and strength (typically cast iron or aluminum alloy).
• Heat dissipation structures (e.g., fins) to prevent lubricant failure due to overheating.
------
III. Applications
Gear reducer assemblies are widely used in industrial scenarios requiringspeed adjustment, torque amplification, or directional changes, such as:
• Mechanical Equipment: Conveyors, mixers, cranes, packaging machines.
• Automation: Robot joints, CNC machine tool spindles.
• Renewable Energy: Wind turbine yaw systems, solar tracker supports.
• Automotive: Electric vehicle reducers, differentials.
------
IV. Selection and Maintenance Guidelines
1. Selection Tips
• Match Operating Conditions: Choose gear types and materials based on load, speed, and ambient temperature.
• Compatibility: Ensure component dimensions (e.g., shaft diameters, hole spacings) align with the original reducer.
• Brand/Quality: Prioritize original or certified suppliers (e.g., SEW, NORD, Siemens).
2. Maintenance Best Practices
• Regular Inspections:
• Check lubricant levels and cleanliness (replace every 3–6 months).
• Inspect seals for aging or leaks.
• Avoid Overloading: Prevent gear tooth breakage or bearing damage.
• Corrosion Prevention: Use rust-resistant lubricants in humid or corrosive environments.
------

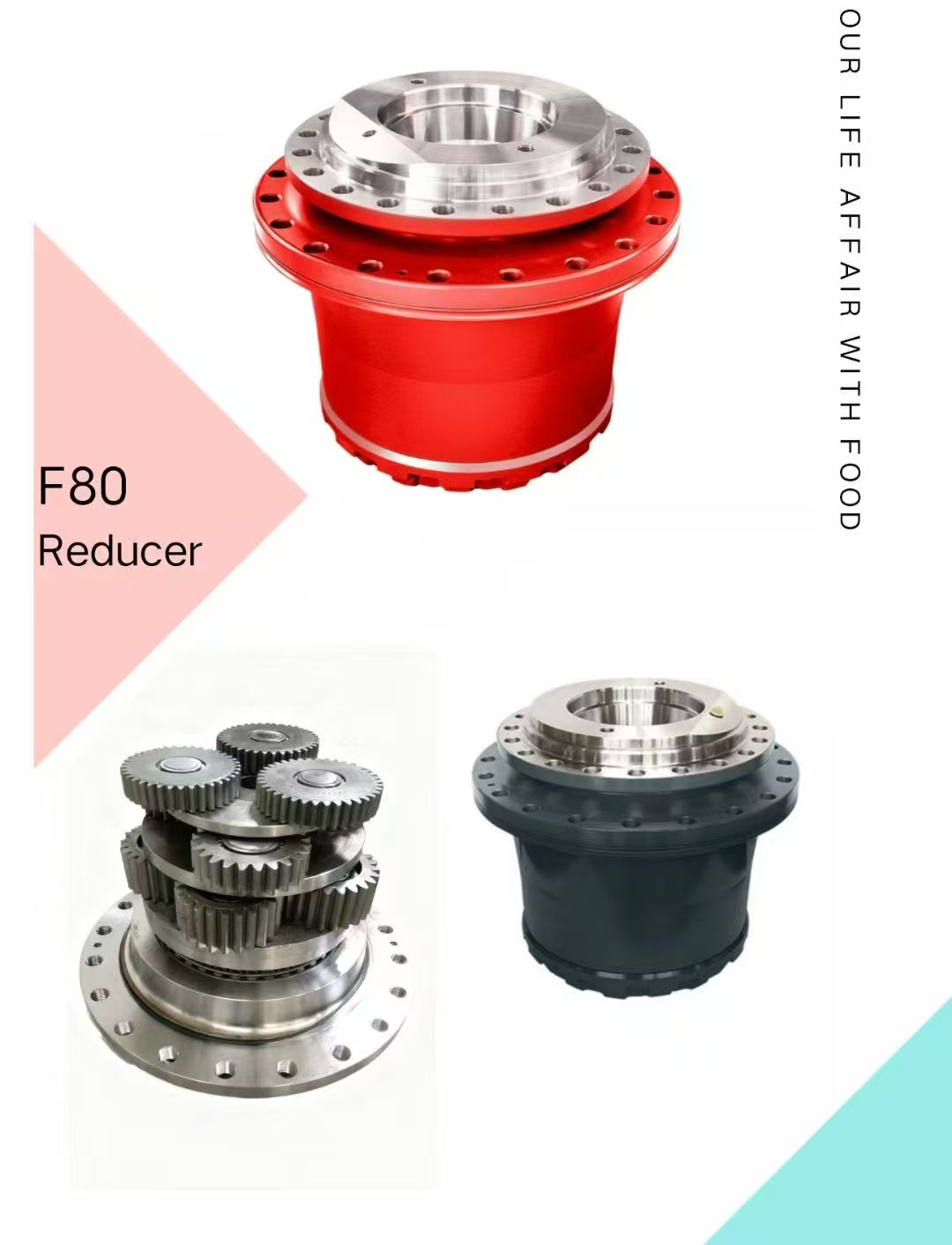

V. Example: Planetary Reducer Assembly Components List
【表格】
Component Category Specific Parts Function
Core Transmission Planetary gear set, sun gear, ring gear High-precision speed reduction and torque amplification
Support Parts Input/output shafts, planet carrier Transfer power and support gears
Sealing/Lubrication Oil seals, O-rings, grease Prevent leaks and reduce wear
Auxiliary Structure Housing, breather valve, mounting flange Protect internals and secure reducer
