Bulldozer D65EX Hydraulic Pump Fan Motor

5 month ago

6 0 

4 year

Product details

I. Product Overview

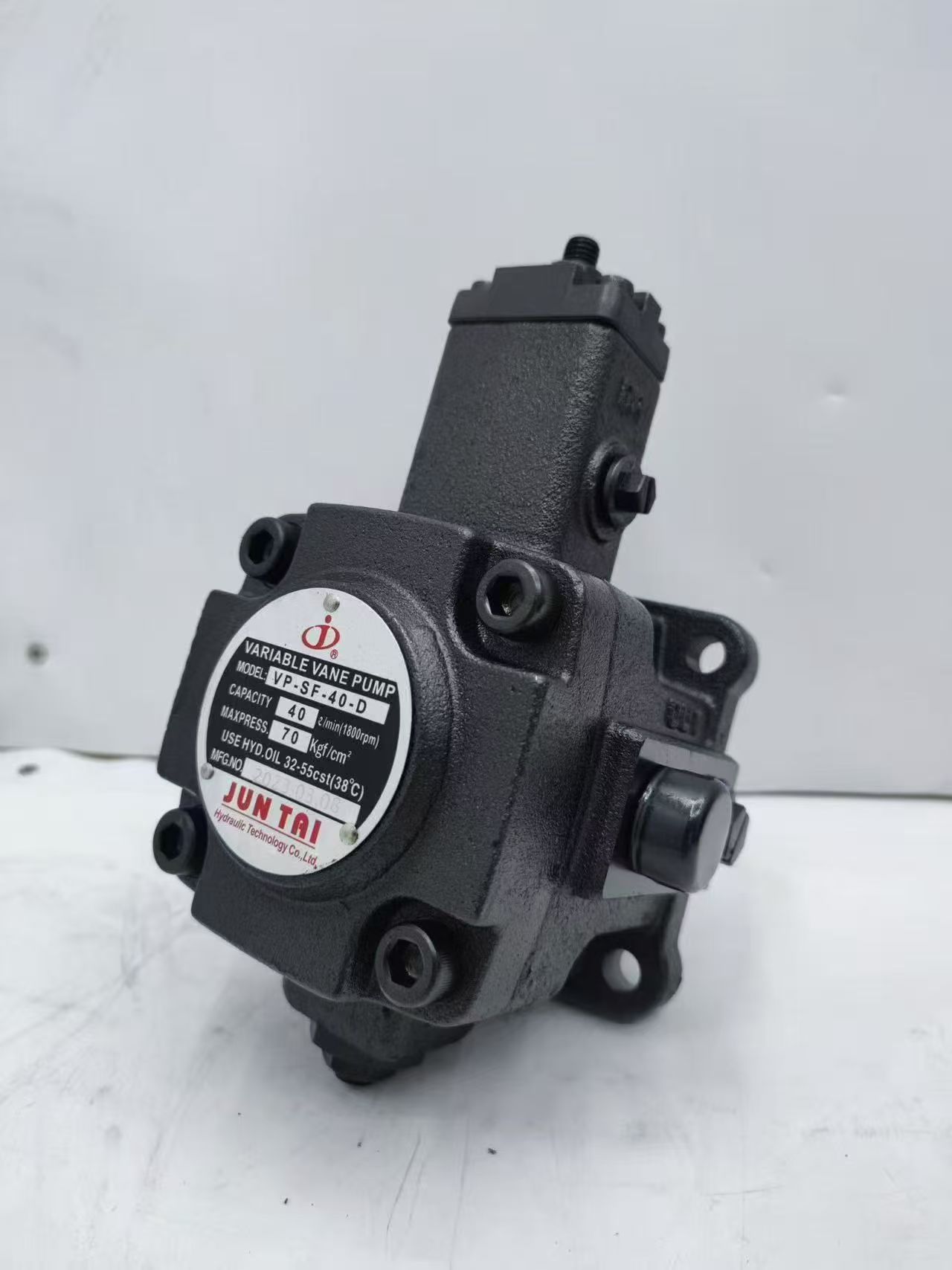

TheVP-SF-40-Dis avariable displacement vane pumpdesigned with adjustable output flow to dynamically meet system demands, optimizing energy efficiency and reducing power consumption. Its core components (e.g., vanes, pump body) are crafted from wear-resistant and corrosion-resistant materials, ensuring long-term stable operation under harsh conditions.

------

II. Technical Features

1. Variable Displacement Technology

• Adjusts vane angles to regulate flow, achieving amaximum flow rate of 40 L/min (at 1,800 RPM)to meet dynamic hydraulic system requirements.

• Energy efficiency improved by over 20%compared to fixed-displacement pumps, minimizing energy waste.

2. High-Pressure & High-Efficiency Output

• Maximum operating pressure: 70 kgf/cm² (7 MPa), suitable for high-load applications.

• Hydraulic fluid compatibility: Designed for fluids with a viscosity range of32–55 cst (at 38°C), adapting to diverse operating conditions.

3. Robust Construction & Materials

• Pump body: Cast iron with anti-corrosion treatment, ideal for harsh industrial environments.

• Vanes: Precision-machined for optimal fit with the pump chamber, reducing wear and extending service life.

4. Low Noise & Stability

• Operates quietly with minimal vibration, reducing stress on mechanical couplings and seals.

• Balanced design ensures stable long-term performance, ideal for continuous-duty equipment.

------

III. Key Specifications

【表格】

Parameter Value

Model VP-SF-40-D

Displacement Type Variable displacement

Max. Flow Rate 40 L/min (at 1,800 RPM)

Max. Pressure 70 kgf/cm² (7 MPa)

Speed Range 800–1,800 RPM

Fluid Viscosity 32–55 cst (at 38°C)

Pump Body Material Cast iron (anti-corrosion treated)

Port Sizes Outlet: 1/2", Inlet: 3/4", Return: 1/4"

------

IV. Applications

1. Construction Machinery

• Hydraulic systems in excavators, loaders, and other equipment requiring precise pressure control and efficient power delivery.

2. Industrial Equipment

• CNC machines, hydraulic presses, and other systems demanding stable hydraulic power for high-precision operations.

3. Agricultural Machinery

• Tractors, combine harvesters, and other equipment operating under variable loads.

4. Marine Hydraulic Systems

• Deck machinery, steering gear, and other shipboard applications relying on corrosion resistance and reliable sealing.

------

V. Advantages Summary

• Dynamic Efficiency Optimization: Adjustable displacement reduces energy loss, adapting to varying loads.

• High Reliability & Durability: Cast iron pump body and wear-resistant vanes extend service life and lower maintenance costs.

• Compact Design: Easy integration into existing hydraulic systems, saving space.

• Certified Quality: Complies with international standards such asCE and ISO, ensuring safety and performance.
