bakelite CNC processing parts
5 month ago
Product details

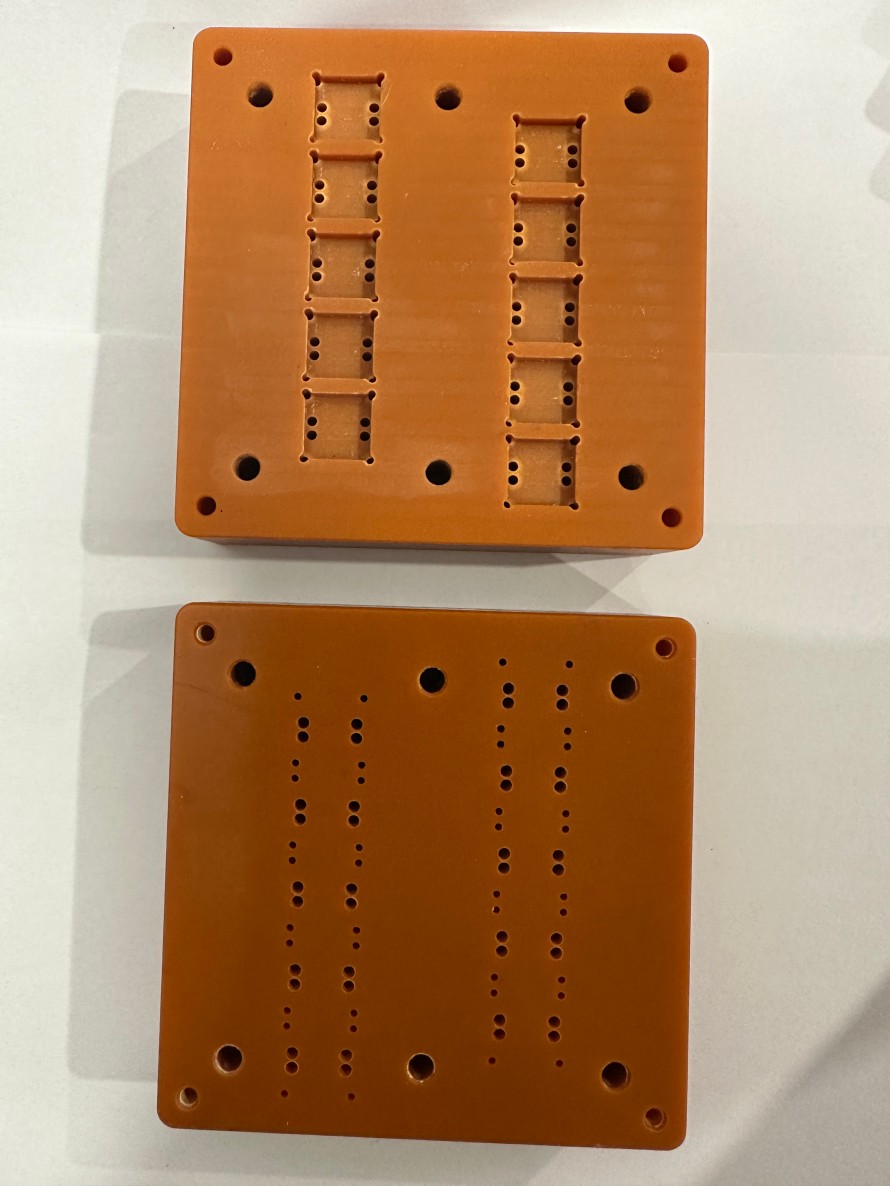

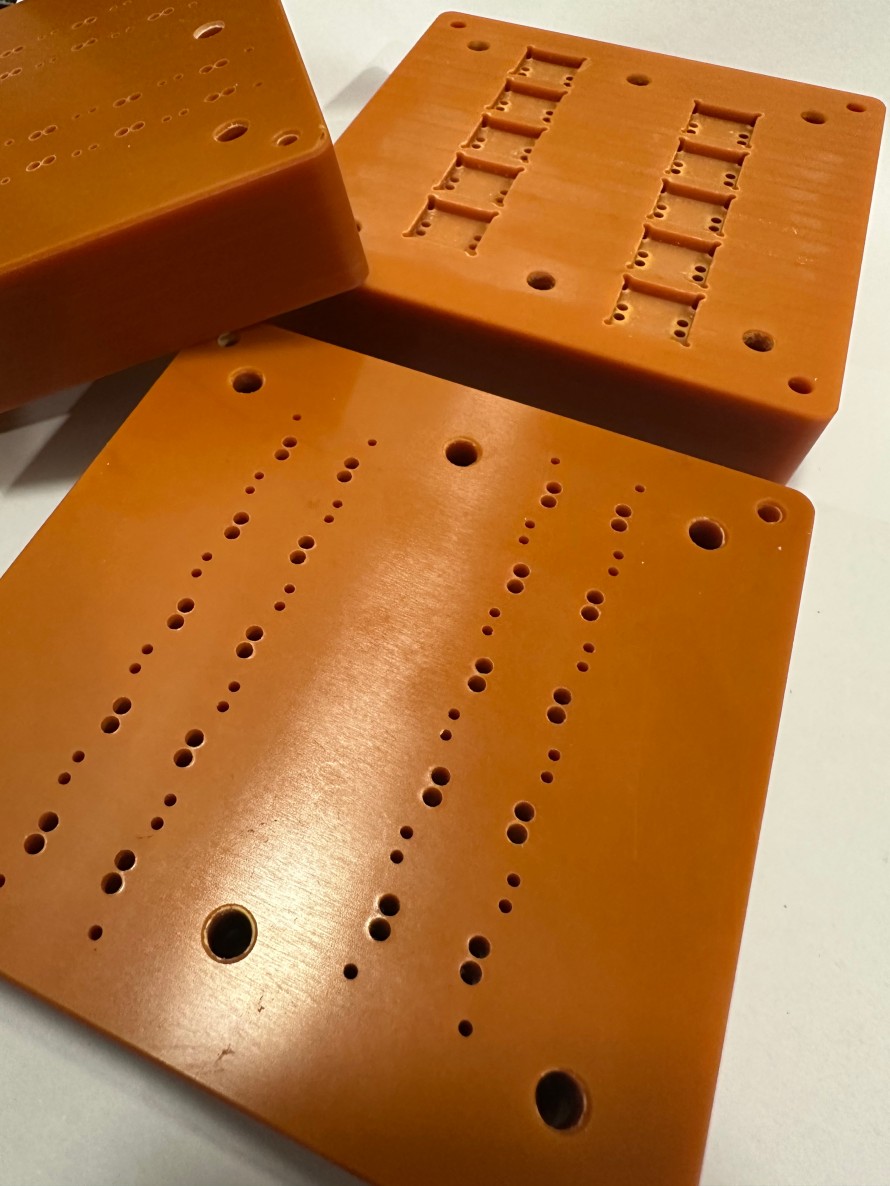

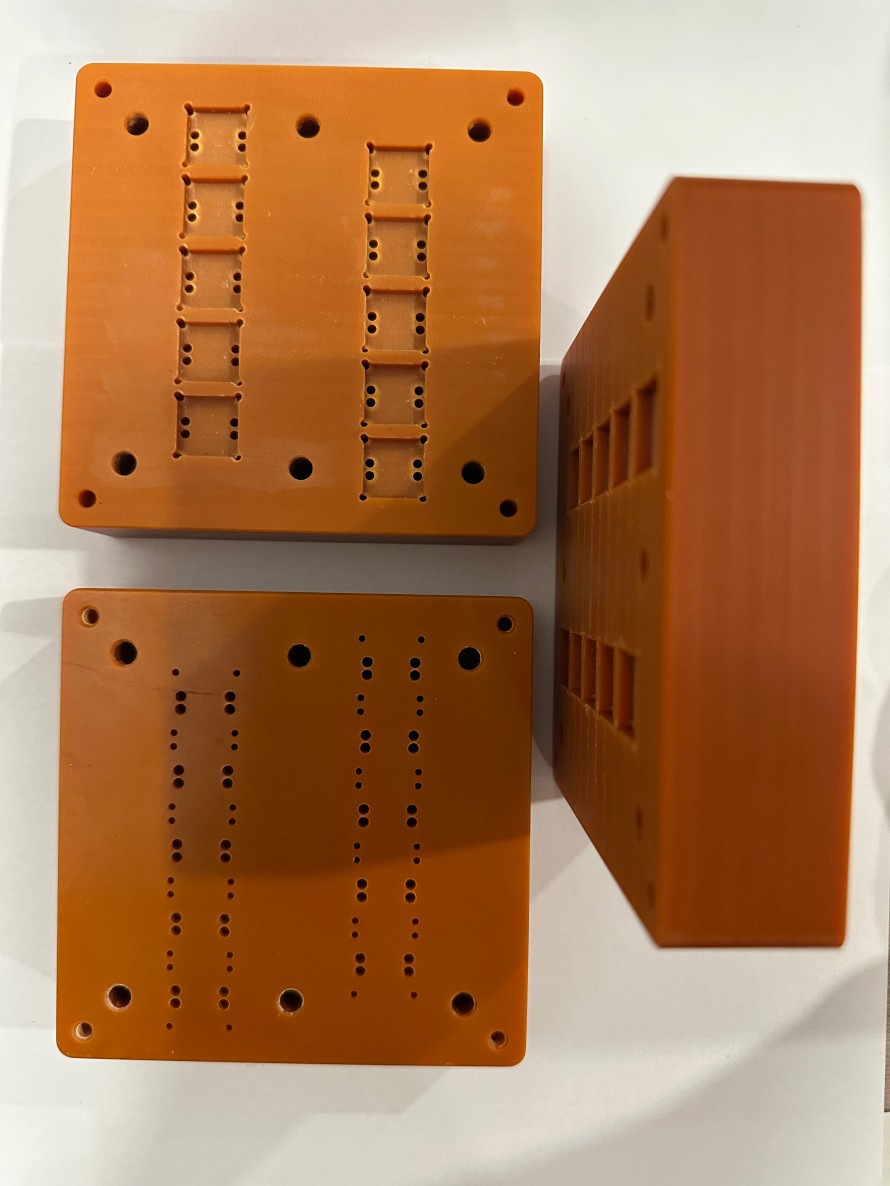

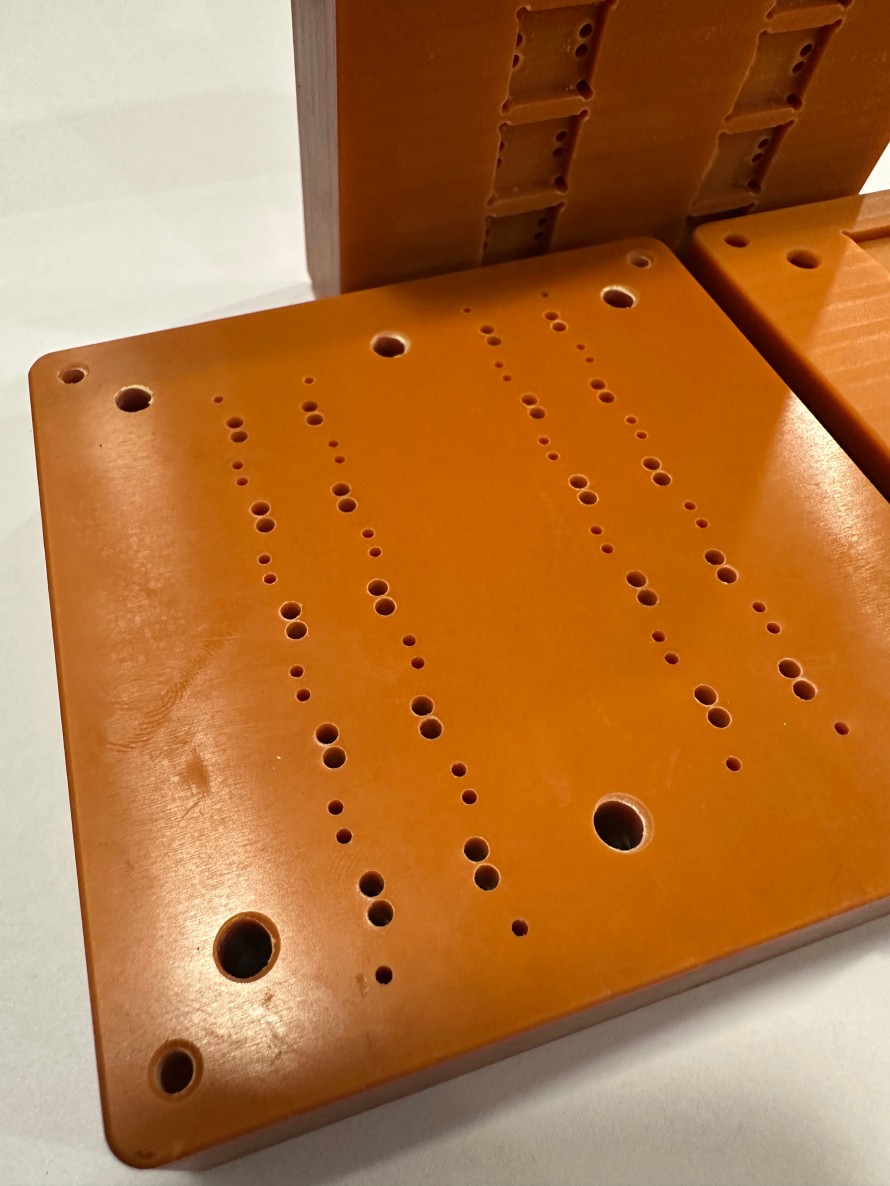

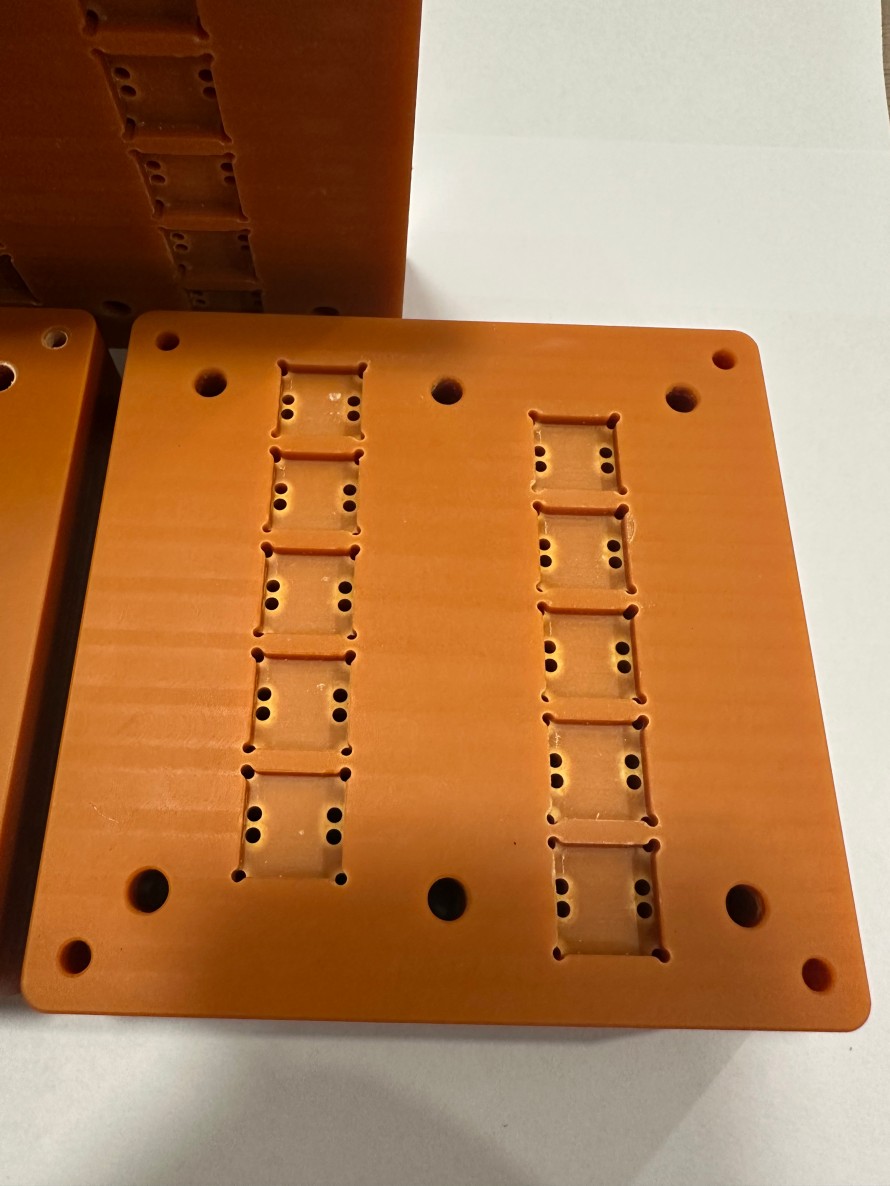

Bakelite board machined components refer to non-standard customised parts manufactured from bakelite board as the raw material through processes such as machining, cutting, and drilling.
Bakelite board, also known as phenolic laminated paperboard, is a composite material formed by high-temperature, high-pressure lamination of phenolic resin-impregnated insulating paper. It possesses excellent insulation properties, mechanical strength, heat resistance, and flame retardancy, finding widespread application in industrial machinery, electrical engineering, construction, and transportation sectors.
Technical Principles and Process Characteristics
The processing of Bakelite boards primarily relies on mechanical machining methods, including cutting, drilling, milling, and grinding. The core process involves laminated moulding, wherein multiple layers of phenolic resin-impregnated insulating paper are stacked and cured under high temperature and pressure to form high-density, high-strength panels. Processing requires bespoke customisation according to design drawings, such as cutting into specific shapes, drilling holes for bolt or connector installation, or milling complex contours. Given Bakelite's considerable hardness, machining necessitates carbide-tipped tools with controlled cutting speeds (typically 80–120 m/min) and feed rates (0.05–0.2 mm/r) to prevent tool wear or panel cracking.
Application Scenarios and Industry Requirements
1.
Machine-Processed Insulating Components: Bakelite board components are frequently utilised in the manufacture of insulating supports, partitions, or bushings for mechanical equipment, preventing current leakage or short circuits. For instance, within motors, transformers, or high-voltage switches, Bakelite boards can substitute metal parts to provide reliable insulating protection.
2.
Electrical Industry: Within electrical equipment such as distribution cabinets and control panels, processed Bakelite components isolate live parts from enclosures or serve as insulating spacers. Their flame-retardant properties (compliant with UL94 V-0 standards) mitigate fire hazards.
3.
Construction Industry: Bakelite boards are employed in manufacturing fire doors, partition walls, or ceiling frameworks. Their high-temperature resistance (withstanding continuous use up to 130°C) meets building fire safety regulations.
4.
Transportation Industry: Within rail transport or automotive manufacturing, machined Bakelite components provide insulation protection for battery boxes, motor housings, and similar applications, while simultaneously reducing overall weight.
Industry Standards and Quality Requirements
Bakelite board machined components must comply with multiple industry standards, such as:
Insulation Properties: Volume resistivity ≥1×10¹³Ω·cm, breakdown voltage ≥20kV/mm;
Mechanical Properties: Flexural strength ≥ 120 MPa, impact strength ≥ 2.5 kJ/m²;
Flame Retardancy: Passes UL94 V-0 or GB/T 2408-2008 vertical burning tests;
Dimensional Accuracy: Non-standard custom parts must maintain tolerances within ±0.1 mm to meet precision assembly requirements.
Machining Considerations
1.
Tool Selection: Prioritise carbide end mills or drill bits. A tool tip radius of one-third the board thickness is recommended to minimise cutting forces.
2.
Cooling Methods: Dry machining generates dust and requires dust extraction equipment. Wet machining may employ emulsion coolants, but prevent liquid penetration into the board to avoid performance degradation.
3.
Post-Processing Techniques: Residual burrs may appear on the surface of machined Bakelite sheets. Sandpaper grinding or sandblasting is required to enhance surface finish.
4.
Storage Conditions: Unmachined Bakelite sheets must be stored in a dry environment (humidity ≤60%) to prevent moisture absorption causing interlaminar delamination.
Industry Trends and Alternative Materials
With the advancement of industrial automation, bakelite components are evolving towards higher precision and lighter weight. For instance, glass fibre reinforced phenolic (GFRP) boards are increasingly replacing traditional bakelite in certain applications, offering a 30% increase in strength while reducing weight by 15%. Nevertheless, bakelite retains its dominant position in small-to-medium batch customisation due to its cost advantage (priced at approximately 60% of GFRP) and established processing techniques.
