Product Description

SBWZ/R series integrated temperature transmitter module is a kind of field installation temperature transmission unit. It adopts two-wire transmission method (power input and signal output are two common wires), and outputs 4～20mA current which is linear with the measured temperature.

The transmitter module can be installed in the thermocouple, RTD junction box with the formation of an integrated structure, can also be installed in the instrument panel as a separate conversion unit.

Scope of Application
Petroleum, Chemical
Textile, metallurgy
Electromechanical, electric power, aviation
Food processing, medical engineering
Other automated temperature detection, transmission and control

Features
High precision, high performance and cost-effective
Advanced nonlinear correction circuit, drift self-calibration circuit
Unique anti-interference circuit, high-precision cold-end compensation circuit
Corrosion resistance, shock resistance, good reliability
Small size, can be directly installed in the RTD, thermocouple
In the junction box or directly on the rail of the instrument box.

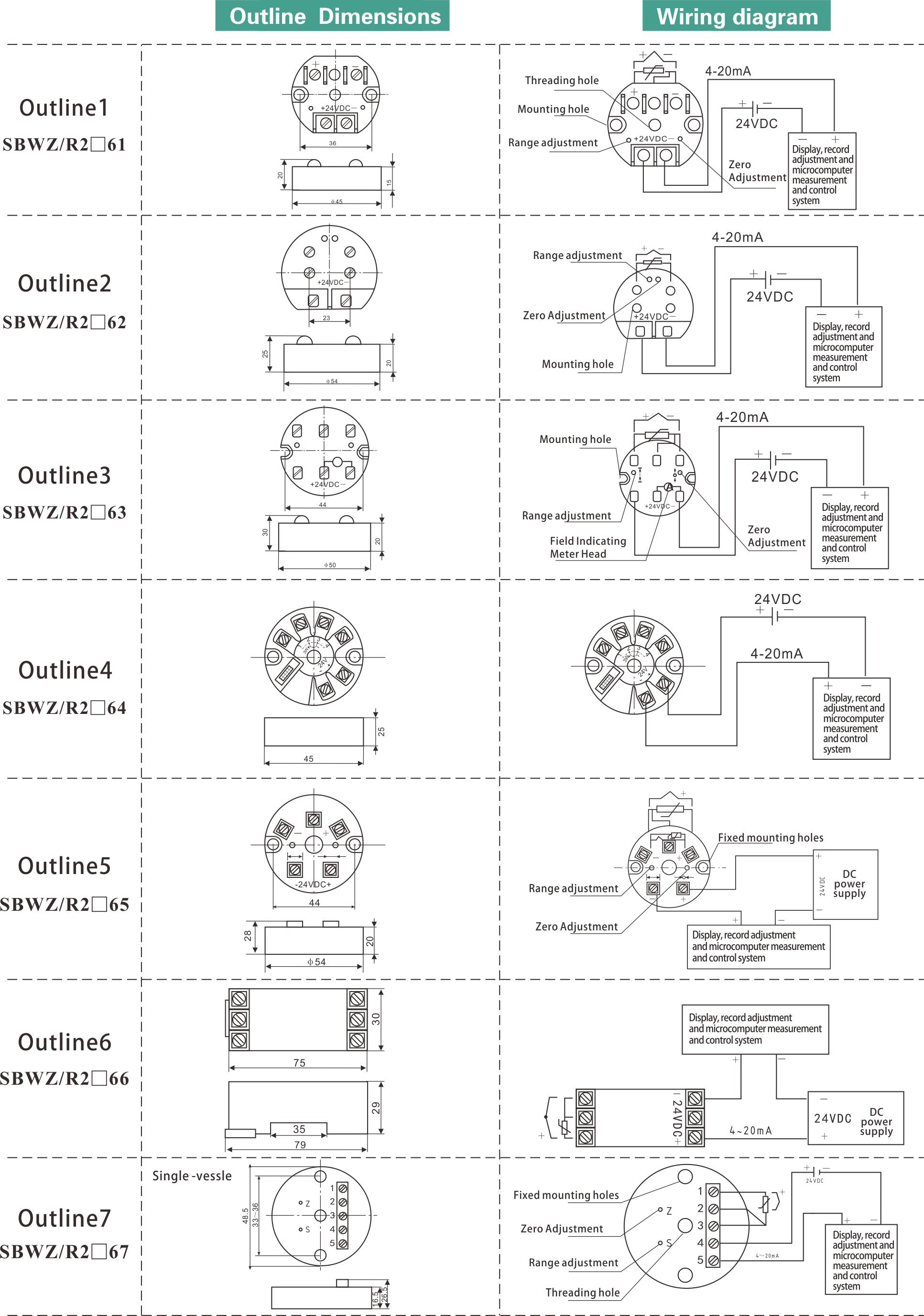

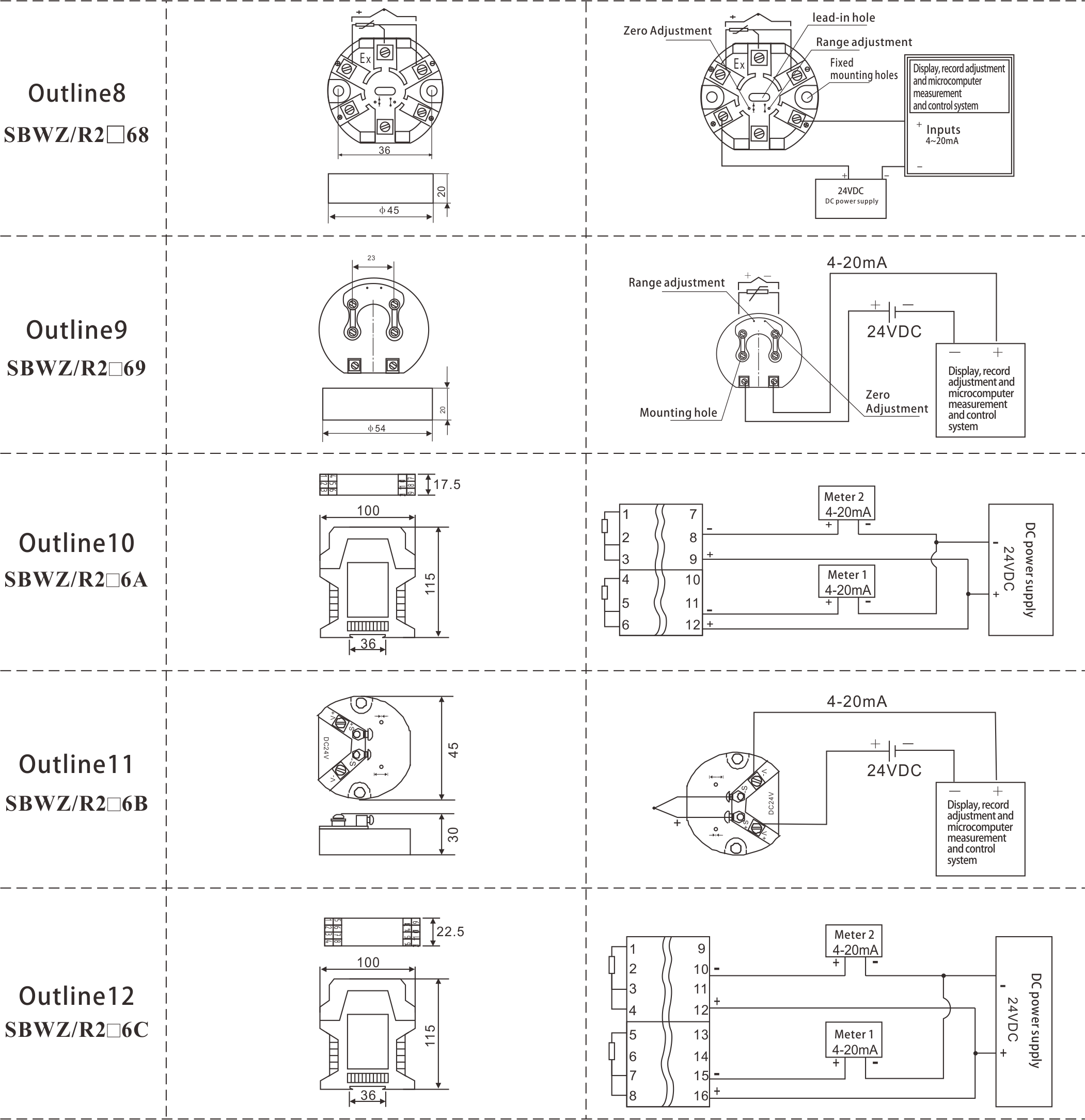

Profiles

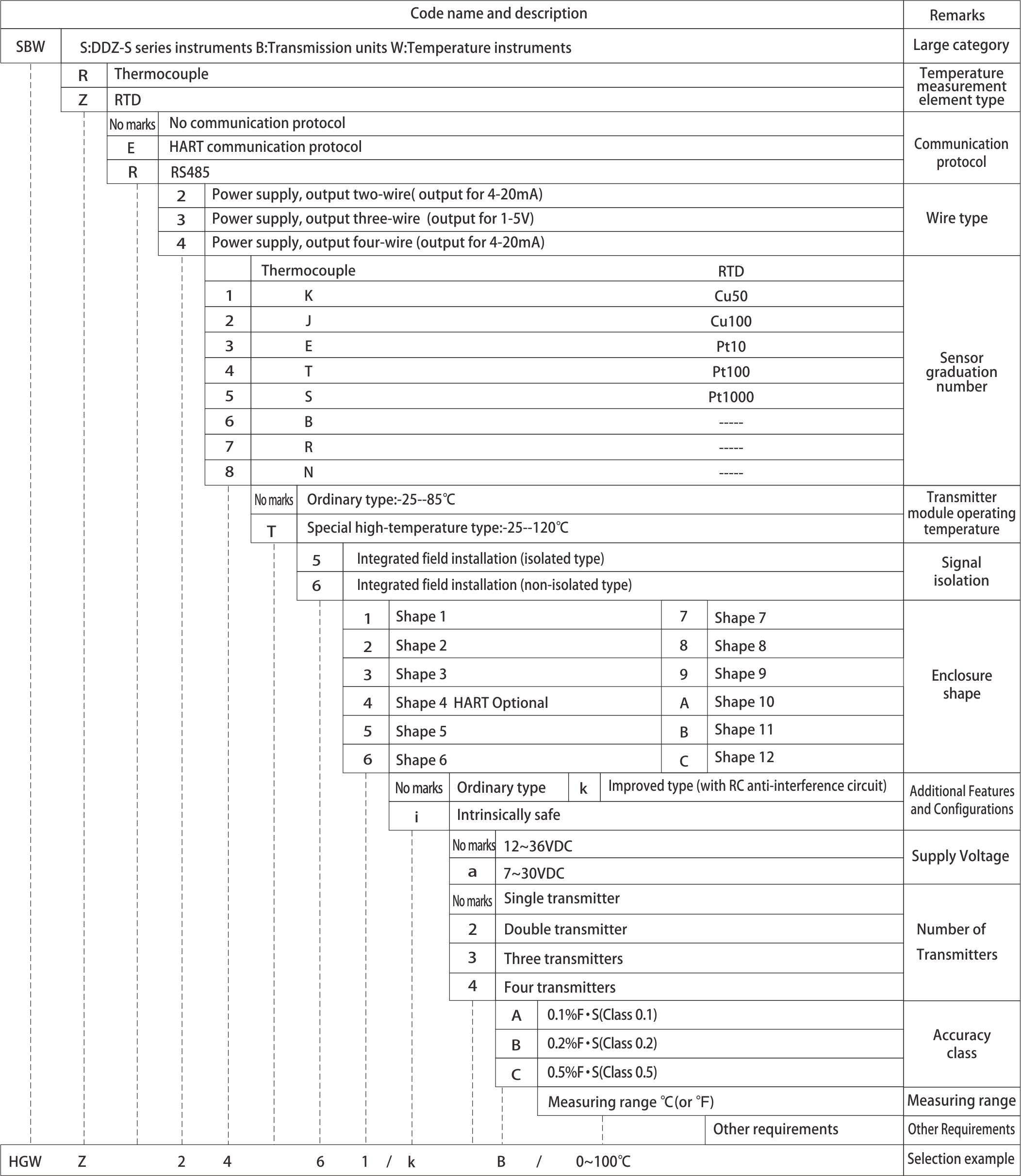

Selection Guide
