Product details

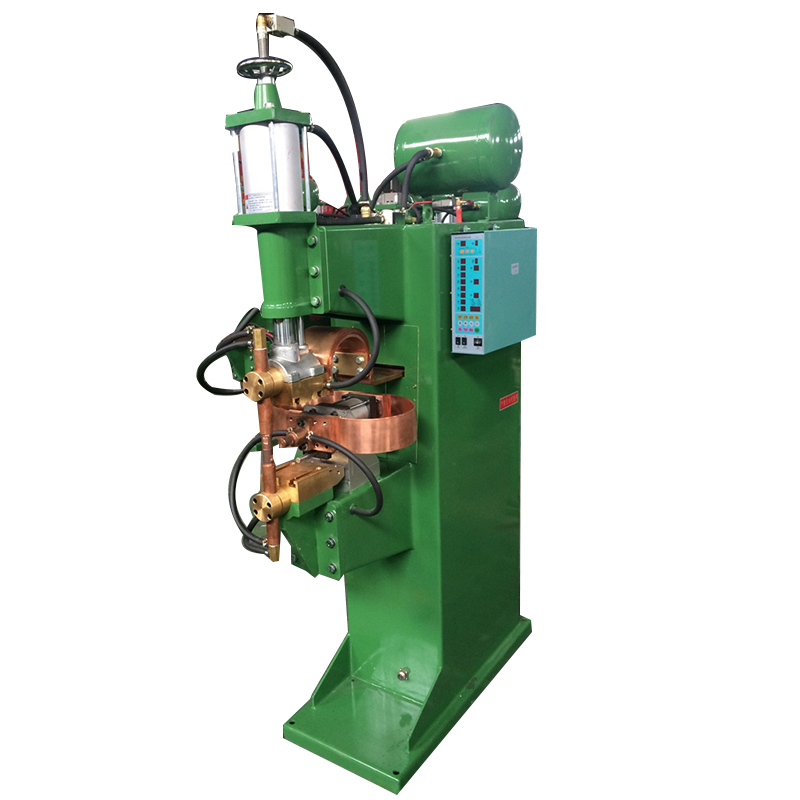

Pneumatic Multipoint T Type Spot Welder for Tube

Usage: Be used for T type point welding of wire.

This Resistance Spot Welding Machine is categorized under equipment professionally built for such welding operations.

Method named for welders:

Automatic type Spot(projection) welders series: DTN-P-1(2)-L

DTN: Pneumatic AC mains frequency spot(projection) welders

P: Rated capacity

1: Lower arm can not be adjustable; 2: Lower arm can be adjustable

L: Throat depth, namely arms length

Advantage & Feature:

1, Machine body of thick steel sheet, not easy to deformation

2, Secondary electric conduction parts is style of upper insulation, to avoid short current accident caused by Scrap iron or workpiece.

3, The electrodes of speed can be adjusted at random, to decrease strike or workpiece and noise.

4, Microcomputer control, accuracy and steady, Can store 15 sets welding schedules, to suit different specification products

5, Controller can automatically compensate current, to make welding steady. Some material can be preheat or temper.

6, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.

7, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost. This well-designed Spot Welding Machine delivers outstanding efficiency for mass production.

8, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.

9, Quality is stable, failure rate is low, therefore machine life is longer
