3723872 F12-090-MF-IV-D-000-0000-P0

3723872  F12-090-MF-IV-D-000-0000-P0

3723881  F12-090-MS-SV-S-000-0000-P0

3781549  F12-110-MS-SV-S-000-0000-P0

3783407  F12-110-MF-IV-D-000-0000-P0

3785731  F12-110-MF-IV-Z-000-0000-P0

3785819  F12-125-MS-SV-S-000-0000-PO

3786589  F12-125-MF-IV-D-000-0000-P0

3723255  F12-125-MF-IV-Z-000-0000-P0

3721144  F12-152-MF-SV-S-000-0000-P0

3788838  F12-250-QF-SV-S-000-0000-P0

3788847  F12-250-QF-SV-K-000-0000-P0

I. Product Overview

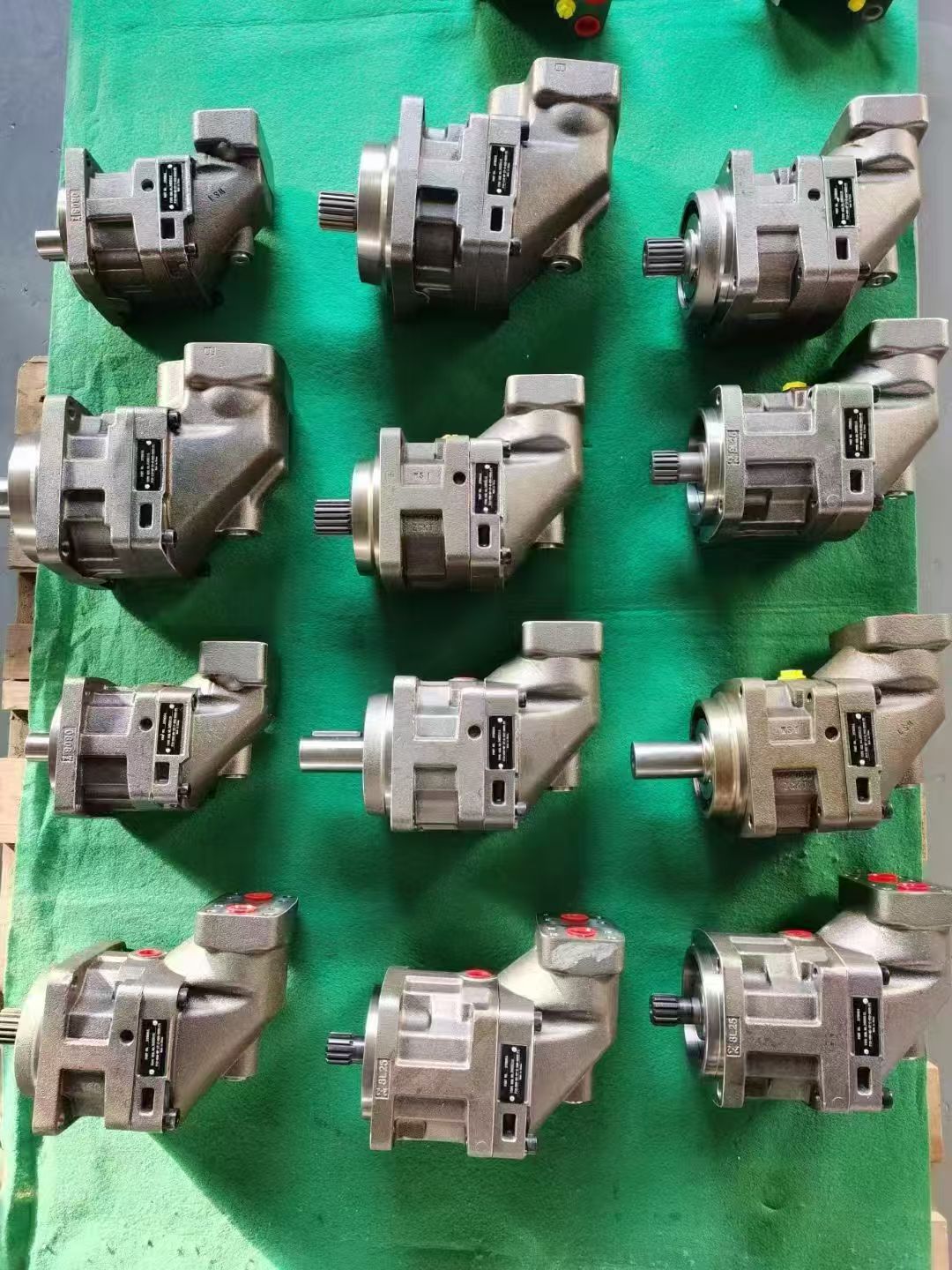

  • Brand & Model: PARKER F12-090-MF-IV-D-000-0000-P0

  • Product Type: Hydraulic motor, part of the PARKER F12 series, is a high-performance hydraulic transmission component.

II. Product Features

  1. High Torque and High Speed:

      • Utilizes an advanced piston-type structure, offering outstanding power performance and transmission efficiency.

      • Suitable for high-speed rotation and high-load applications, capable of stably outputting high torque.

  2. Energy Efficiency:

      • Features high volumetric and overall efficiency, significantly reducing energy consumption.

      • The layered piston ring design minimizes internal leakage, enhancing motor efficiency.

  3. Low Noise:

      • The carefully designed port plate improves self-priming speed and reduces operational noise.

      • The motor operates with low noise levels, improving the working environment.

  4. Compact Structure and Lightweight:

      • The drive shaft forms a 40° angle with the cylinder axis, resulting in a compact motor structure and reduced weight.

      • This design not only saves installation space but also enhances the motor's torsional resistance and torsional vibration capabilities.

  5. High Reliability:

      • Constructed with high-quality materials and advanced manufacturing processes, ensuring efficient and stable operation under various harsh working conditions.

      • Unique piston locks, timing gears, and bearing assemblies, along with a minimal number of components, make the motor robust and durable.

  6. Multiple Control Methods:

      • Supports various control methods, such as on-off control, proportional control, and electronic control.

      • Allows for precise control by selecting the most suitable control method based on application requirements.

III. Technical Specifications

  • Displacement: 93.0 cc/rev (Based on the specifications of the F12 series motor, the displacement of the F12-090 is typically 93.0 cc/rev)

  • Operating Pressure:

      • Maximum intermittent pressure: 480 bar

      • Maximum continuous pressure: 420 bar (Some sources indicate 350 bar, depending on the application and motor configuration)

  • Speed Range:

      • Maximum intermittent speed: 5000 rpm

      • Maximum continuous speed: 4600 rpm (Some sources indicate 4400 rpm or higher, depending on the application and motor configuration)

      • Minimum continuous speed: 50 rpm

  • Other Parameters:

      • Theoretical torque at 100 bar: 147.6 Nm

      • Moment of inertia: 8.4 x 10⁻³ kg·m²

      • Weight: 25.7 kg (Specific weight may vary depending on configuration)
