PRODUCT OVERVIEW

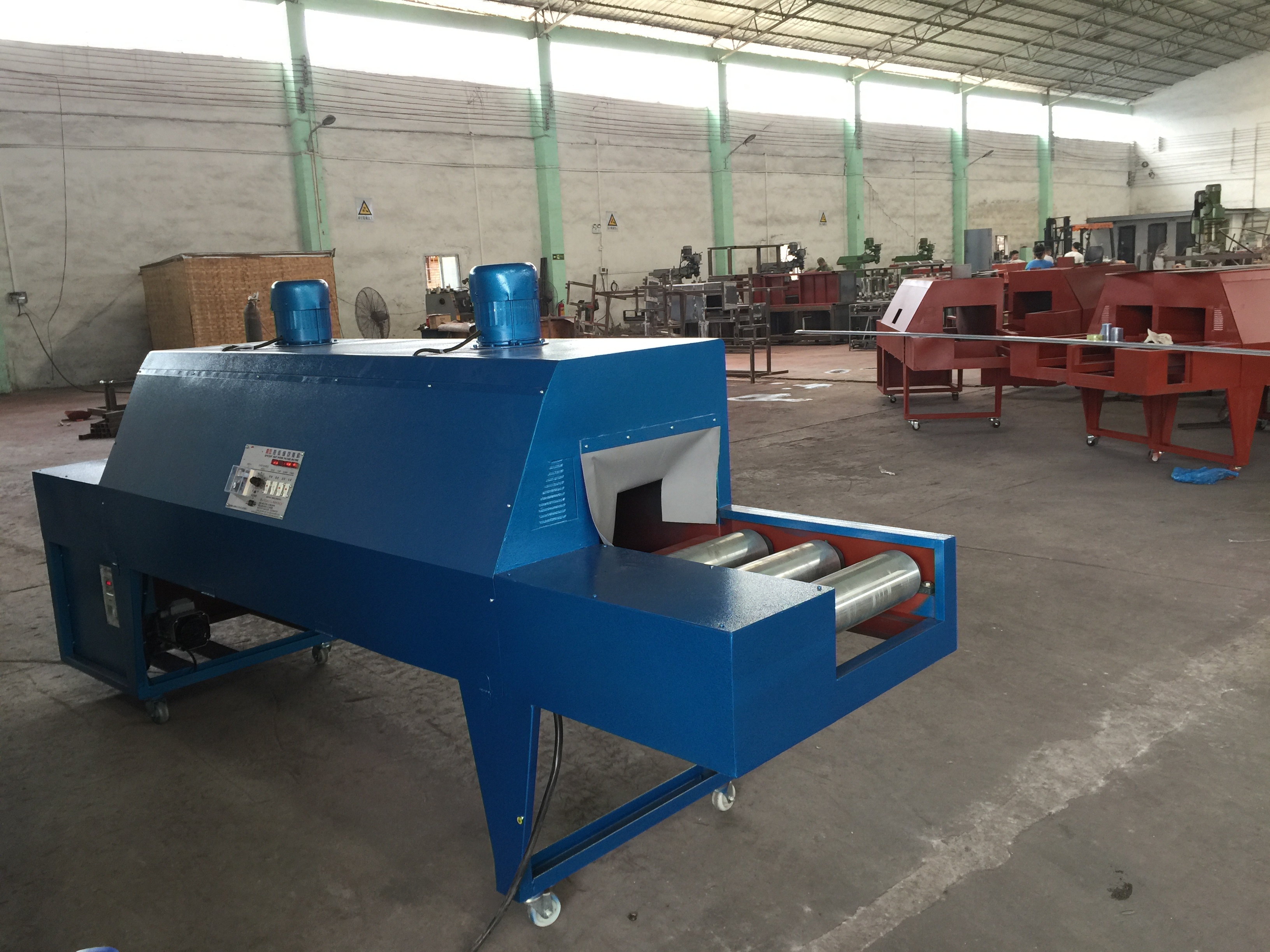

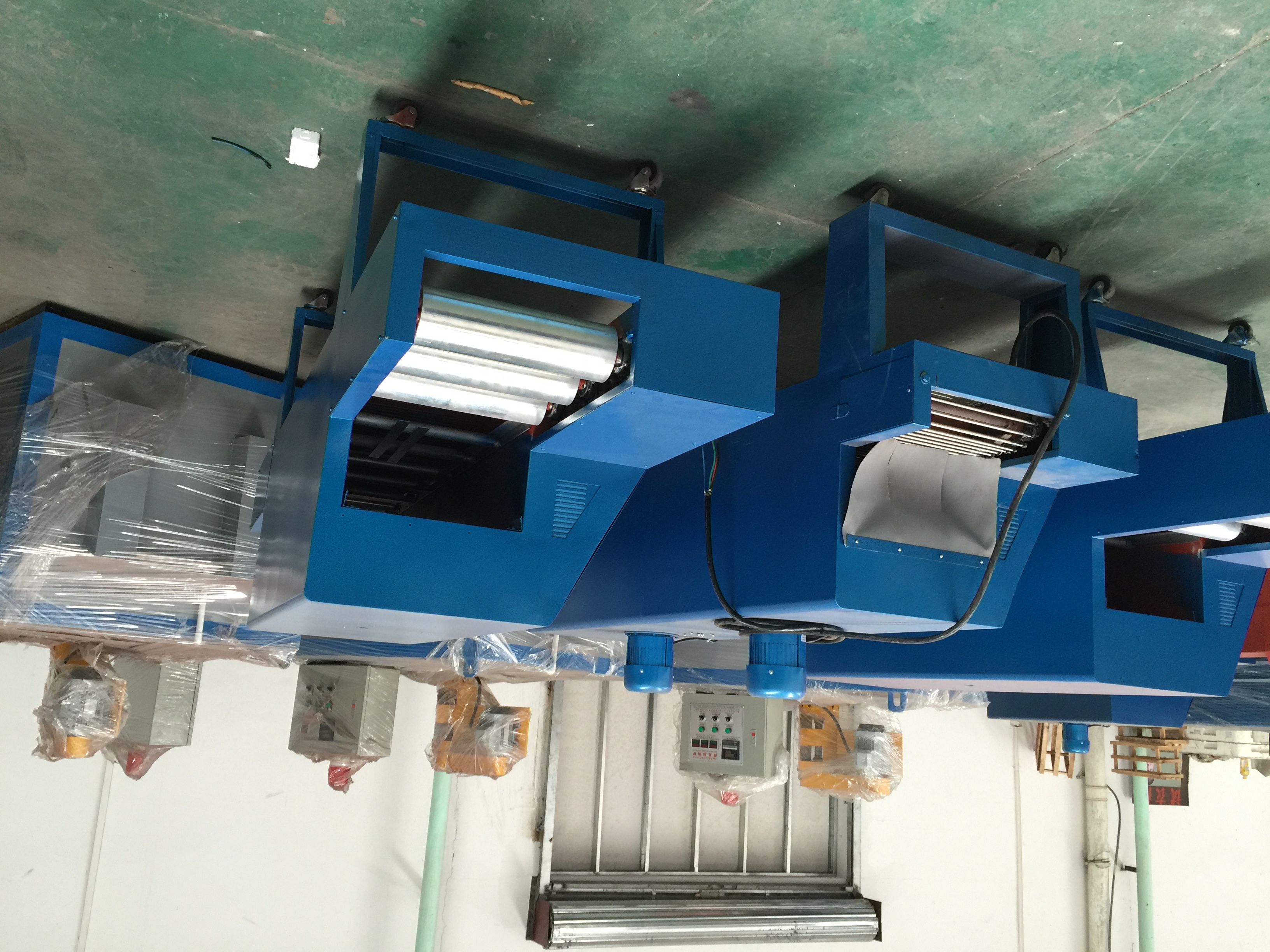

The aluminum heat shrink packing machine as known as Aluminum Heat Shrink Packaging Machine is a specialized packaging solution tailored exclusively for long linear products, particularly aluminum profiles. Engineered for backend packaging applications, it delivers robust waterproofing, dustproofing, product fixation, and premium aesthetic enhancement, effectively elevating the overall packaging quality and protecting aluminum profiles throughout storage and transportation.
MAIN FEATURE
- Professional Shrink Wrapping Performance: Wraps target products with dedicated heat-shrinkable film (a standard consumable for this heat shrink machine for aluminum) and applies controlled heating, enabling the film to shrink tightly and conform seamlessly to the product surface for secure, full-coverage packaging.
- Automatic Buffer Protection System: Built-in automatic buffer protection functionality safeguards both the machine and packaged products, preventing damage during operation and ensuring stable, worry-free running.
- Humanized & Flexible Control: Designed with an intuitive, user-centric control panel for effortless operation, offering flexible parameter adjustment and simplified workflow management to suit diverse packaging demands.
- Automatic Tracking & Compensation for Speed & Temperature: Equipped with intelligent automatic tracking and compensation technology for conveying speed and heating temperature, maintaining consistent packaging parameters even under variable working conditions for uniform, high-quality results.
- Enhanced Film Durability & Transport Protection: Optimizes the toughness and weather resistance of heat-shrinkable films, effectively minimizing film breakage, scratches, and damage during transit, ensuring intact delivery of aluminum profile products to end customers.
MAIN STRUCTURAL COMPONENTS AND PREMIUM CONFIGURATIONS
1. Imported High-Efficiency Fan (Core Cooling & Airflow Component)
This Aluminum Shrink Wrapping Machine is fitted with a top-tier imported brand fan, boasting ultra-high efficiency, exceptional high-temperature resistance, stable high-speed rotation, and reliable operational performance. Key reference parameters: Rated operating voltage of 230V, rated current power of 1/2 HP (370W); the high-efficiency motor supports a maximum power output of 750W, with actual operating power averaging around 180W for outstanding energy savings.
This premium fan features extremely low no-load and operating current consumption, delivering long-lasting durability even in harsh high-temperature environments up to 200°C. It maintains consistent high rotational speed and stable airflow without performance degradation, providing solid assurance for low-temperature packaging, flawless finish packaging, stable continuous operation, high-efficiency production, and energy-saving packaging processes.
2. Swiss-Technology Elliptical U-Type Side-Insert Metal Far-Infrared Heating Tubes
Adopting patented Swiss technology licensed for in-house manufacturing, the Shrink Packing Machine utilizes elliptical U-shaped side-insert metal far-infrared heating tubes that outperform all conventional heating tubes on the market. These tubes excel in rapid heating, ultra-high thermal efficiency, exceptional energy conservation, long service life, and hassle-free maintenance.
Key reference parameters: Maximum power of 16KW, powered by 380V three-phase four-wire supply; supports precise constant temperature setting, with a normal operating temperature range from ambient temperature up to 180°C, catering to various heat shrink packaging requirements.
3. High-Quality Temperature Control & Drive System
Temperature Control Circuit: Constructed with premium AC contactors from renowned Japanese brands (Mitsubishi/Fuji) paired with temperature controllers from leading domestic manufacturers, forming a durable, high-precision automatic temperature control circuit. This configuration ensures stable temperature regulation, extended service life, and consistent heating performance.
Drive System: Powered by a reputable brand 0.18KW drive motor, matched with a variable frequency drive (VFD) equipped with a bidirectional operation selector switch. This setup delivers ultra-stable packaging conveying speed, adjustable in a range of 0 to 30m/min, with a maximum conveying capacity of ≥80kg to accommodate heavy-duty aluminum profile packaging.
APPLICATION SCENARIOS
This shrink packing machine for aluminum is specially customized for long-strip linear products, with strong pertinence and wide adaptability, covering multiple core links of production, storage, transportation and sales, perfectly solving the packaging protection needs of aluminum profiles and similar products in various scenarios.
1. Aluminum Profile Processing & Backend Packaging Production Line
2. Warehousing & Logistics Storage of Building Materials
3. Cross-border Export & Domestic Land Transportation
4. Sales Terminal & Finished Product Display
5. Packaging of Similar Long-strip Linear Products
