50T Four-Column Hydraulic Compression Molding Press for Aerogel Insulation Pads

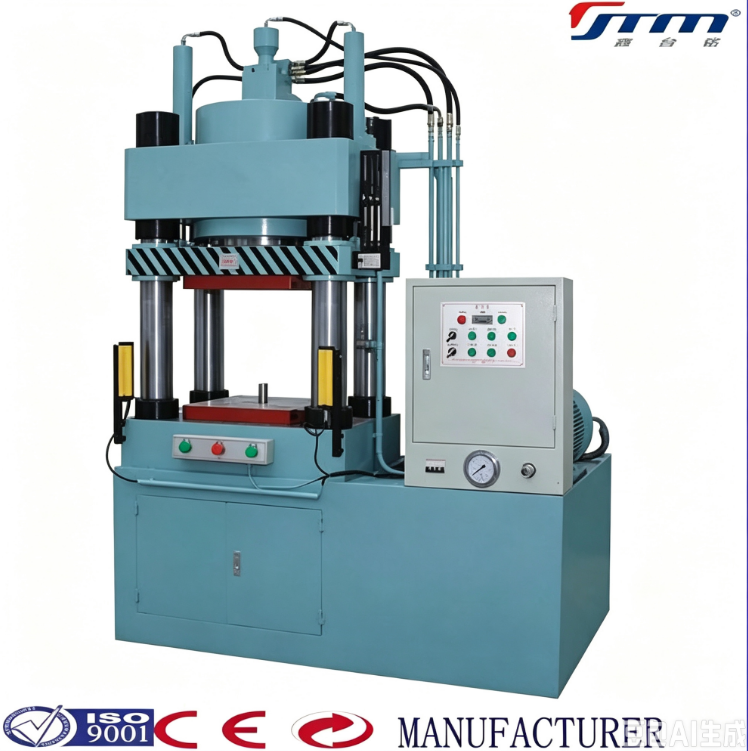

Suggested shot: the complete 50T four-column press standing in a workshop, platens open and ready for loading.

Overview

An insulation pad is not just a soft mat. It has to stay thermally stable at high temperature for years, and a tiny deviation in thickness ruins its performance. That is exactly why this 50T Four-Column Hydraulic Compression Molding Press for Aerogel Insulation Pads exists.

It belongs to the Four Column Hydraulic Press family, and its only job is to make every Aerogel Insulation Pad come out with the same thickness, density, and flatness.

The material makes this harder than it sounds. Aerogel and carbon-nano plate rebound strongly under pressure, and the curing rhythm is highly sensitive.

If the pressure is not even, you get the classic reject: thick in the middle, thin at the four edges.

As a Hydraulic Compression Molding Press, this machine locks three things at the same time under its four-column rigid frame: pressure, dwell time, and platen parallelism.

The result is a part that leaves the mold cleanly, with the same thickness across its entire surface.

Key Features

1. Pressure uniformity across the platen.

Aerogel pads cure under pressure, and uneven pressure means uneven density. The multi-zone pressure control on this machine keeps the deviation across the platen within the specified band, so the whole pad performs uniformly.

2. Four-column guide, high parallelism at full load.

Four solid columns form a rigid guide frame. The upper and lower platens stay highly parallel even at the full 50T load.

For a pad only a few millimeters thick, this accuracy is what decides the pass rate.

3. Dwell time adjustable with auto pressure compensation.

Aerogel carbon-nano plate needs a specific pressure profile to cure. The machine supports continuous adjustment of dwell time, with automatic pressure compensation that tops up the pressure the moment it drops, with no operator watching the gauge.

4. 50T tonnage with a large platen.

One cycle handles multiple pads, suited to batch production of large-format insulation pads.

The platen size is customisable on request to match the workpiece and the target unit pressure.

5. Bottom eject cylinder for easy demolding.

A bottom eject cylinder pushes the finished part out automatically after compression, reducing damage from prying and cutting the operator's physical effort.

Suggested shot: platen surface, showing the ground finish and pressure-sensor ports.

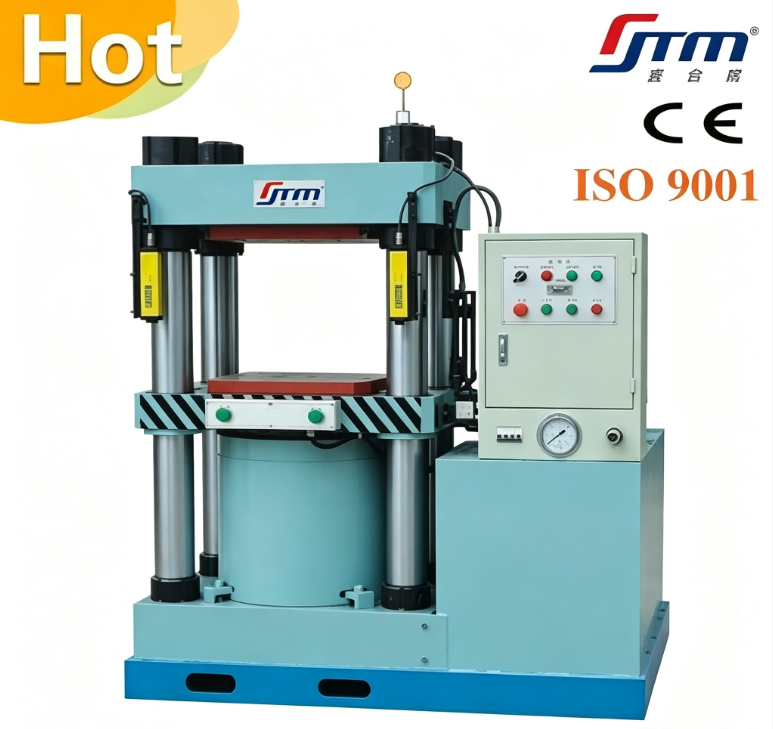

Suggested shot: side shot highlighting the four columns and the rigid beam connection.

Applications

New energy vehicle battery packs.

The insulation pads under and around a traction battery pack must endure high temperature long-term while holding their dimensions.

Pads formed on this machine come out uniform in thickness and density, ready to install straight into the pack's thermal shield.

High-temperature industrial equipment.

Furnaces, ducts, and reactors need carbon-nano-plate insulation.

Large thin plates are extremely sensitive to thickness variation, and the high parallelism of the four-column guide is the right match for this requirement.

Energy storage and electronics thermal management.

Cabinets and inverters need small batches of insulation pads in many specifications.

Mold change is fast on this machine, so switching specifications does not eat the day.

Aerospace and rail transit.

Cabin insulation and rail-floor thermal insulation call for the highest material and dimensional standards.

The pressure uniformity and parallelism of this machine meet those demands.

FAQ

Q1: What is the difference between this machine and your servo hot press? Which one should I choose?

A: We make three machine families: the Four Column Hydraulic Press, the Four Column Servo Hydraulic Press, and the Four Column Hot Press Hydraulic Press.

If your process needs heat, choose the servo hot press.

If you only do cold Compression Molding Press, such as aerogel pads or rubber gaskets, this machine is the better fit, and it costs less.

The difference is the heating system, not the tonnage.

Q2: What size workpiece can this 50T press handle?

A: The platen size is specified according to the workpiece.

Send us your pad dimensions and the required unit pressure, and we will size the platen and tonnage together.

Q3: How is pressure uniformity across the platen achieved?

A: Multi-zone independent pressure control.

Each zone has its own pressure sensor and control loop, coordinated by the PLC, so the whole platen stays within the specified tolerance band.

Q4: How is a mold mounted, and how long does a changeover take?

A: Molds are fixed with T-slots and locating pins for fast centering.

A standard changeover takes 15 to 20 minutes, depending on mold size.

Q5: Lead time, after-sales, and spare parts?

A: Standard machines 30 to 45 days, custom machines 45 to 60 days.

Core hydraulic components are stocked, and we promise a 24-hour response on after-sales.
