Product Overview

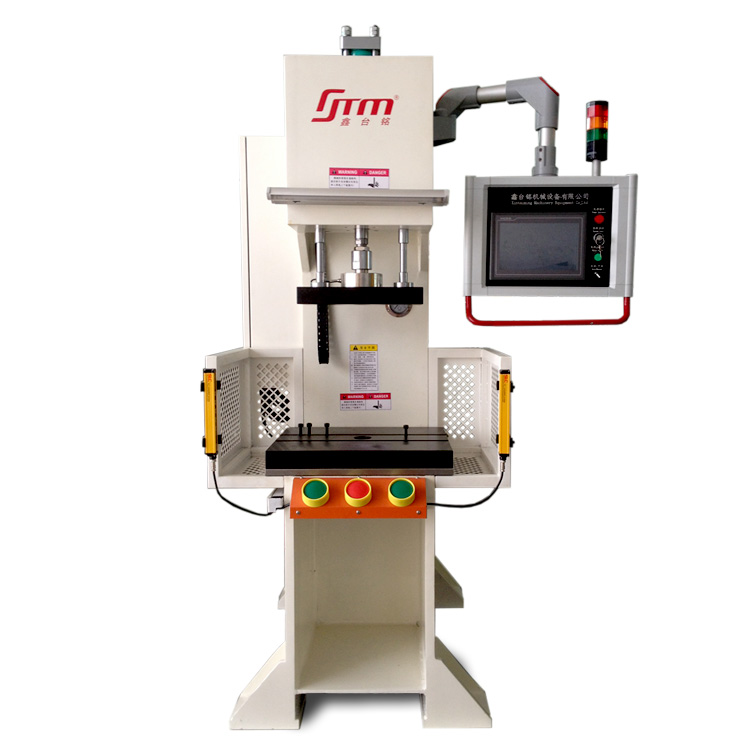

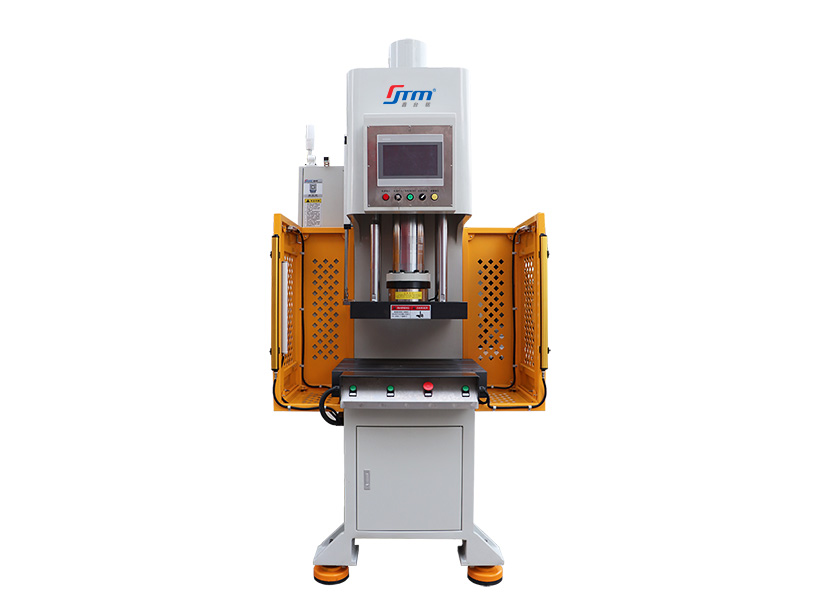

Our High Precision Single Column Servo Hydraulic Press is an advanced, integrated forming machine that combines servo control technology with hydraulic drive systems. As a high-performance upgrade of the traditional Single Column Hydraulic Press, it delivers stable pressure, precise displacement control, and energy-saving operation, widely used in pressing, assembly, shaping, riveting, and hot pressing processes for metal and non-metal parts. It can also be customized as a Single Column Hot Press Hydraulic Press with heating platens for thermal forming tasks.
Machine Structure
Single Column Frame: Adopts a rigid C-type single-column structure for easy loading, unloading, and operation, with excellent structural stability and anti-deformation performance.
Servo Hydraulic System: Equipped with high-performance servo motor and proportional pressure valve, enabling closed-loop control of pressure and speed.
Precision Guiding Mechanism: Uses high-precision linear guide rails or guide pillars to ensure vertical accuracy and parallelism between the slider and worktable.
Intelligent Control Panel: Touch-screen HMI for setting pressure, stroke, speed, holding time, and temperature (for hot press versions).
Safety Protection System: Includes safety grating, emergency stop, overload protection, and door interlock for safe operation.
Heating & Temperature Control Module (optional): For the Single Column Hot Press Hydraulic Press, equipped with electric heating plates and PID temperature controller for stable and uniform heating.
Product Features
High-precision pressure and position control, with pressure accuracy up to ±1% and position accuracy within 0.01mm.
Servo-driven design provides ultra-low energy consumption compared with conventional hydraulic presses.
Adjustable pressing speed, pressing pressure, pressure-holding time, and return stroke for flexible production.
C-type Single Column Hydraulic Press structure offers open operating space for easy mold replacement.
Low noise, smooth operation, and long service life.
When configured as a Single Column Hot Press Hydraulic Press, it supports precise temperature control and uniform heat distribution.
Multiple working modes: manual, semi-automatic, and fully automatic.
Compact footprint, easy installation and maintenance.
Core Advantages
Enhanced Precision: The Single Column Servo Hydraulic Press achieves far higher accuracy than conventional hydraulic presses, ensuring consistent product quality.
Energy Saving & Efficiency: Servo system only outputs power as needed, reducing electricity consumption by 30%–70%.
Versatility: Can be used as a standard Single Column Hydraulic Press or upgraded to a Single Column Hot Press Hydraulic Press for heat-assisted forming.
Stable & Reliable: Heavy-duty frame and imported hydraulic components ensure long-term stable performance under continuous working conditions.
Intelligent & User-Friendly: Digital parameter setting, data storage, fault self-diagnosis, and production counting functions simplify operation.
Cost-Effective: Lower operating cost, less oil consumption, and extended service life reduce overall production expenses.
Application Scenarios
This Single Column Servo Hydraulic Press is widely applied in industries including:
Metal parts press-fitting: bearings, shafts, sleeves, and motor components assembly.
Stamping, bending, shaping, and correcting of small and medium-sized metal parts.
Pressing of non-metal materials: plastic, rubber, bakelite, composite materials, etc.
Thermal forming and hot pressing (as a Single Column Hot Press Hydraulic Press): hot embossing, thermo-compression bonding, heat setting, and melamine product forming.
Riveting, extrusion, press mounting, and assembly in automotive, electronics, hardware, home appliance, and mechanical processing industries.
