I. Product Overview

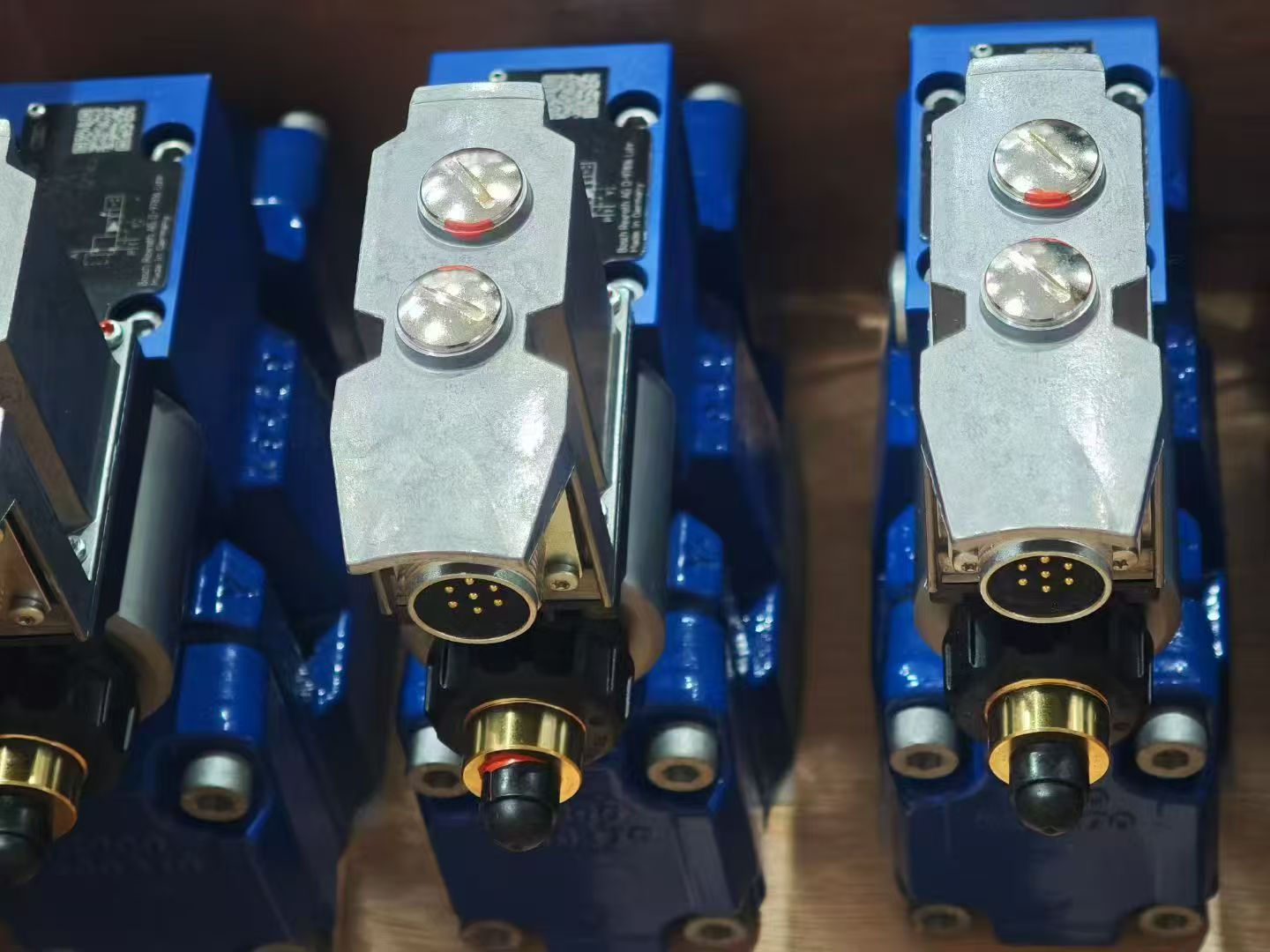

The 3DREE10P-73/100YG24K31F1V is a pilot-operated three-way proportional pressure reducing valve manufactured by Rexroth. It is driven by a proportional solenoid and controls the position of the valve spool through electrical signals, enabling precise adjustment of system pressure. This valve is suitable for hydraulic systems requiring accurate pressure control, such as injection molding machines, hydraulic presses, steel mills, and machine tools.

II. Model Explanation

• 3DREE: Indicates the proportional pressure reducing valve series from Rexroth.

• 10P: Represents the nominal displacement of 10 mL/rev (specific values may vary slightly depending on product configuration).

• 73: May indicate the valve's control type or specific configuration; refer to Rexroth's product manual for details.

• 100Y: Indicates the maximum operating pressure of the valve as 100 bar (or close to this value; specific values may vary slightly depending on product configuration).

• G24: Indicates a 24V DC electrical connection.

• K31: May indicate the valve's port type or installation method; refer to the product manual for details.

• F1V: May indicate specific functions or configurations of the valve, such as integrated control electronics.

III. Key Parameters

• Nominal Displacement: 10 mL/rev (specific values may vary slightly depending on product configuration).

• Maximum Operating Pressure: 100 bar (or close to this value).

• Flow Rate: Determined by system configuration to meet various industrial needs.

• Electrical Connection: 24V DC.

• Control Method: Proportional solenoid-driven for precise pressure adjustment.

IV. Product Features

1. Precise Control: The valve spool is driven by a proportional solenoid, enabling precise adjustment of system pressure.

2. Energy Efficiency: Automatically adjusts flow and pressure according to system demands, reducing energy loss.

3. Compact Structure: Designed reasonably for easy installation and space-saving.

4. High Reliability: Made of high-quality materials and manufactured using advanced processes, ensuring long-term stable operation.

5. Easy Maintenance: Modular design facilitates disassembly and replacement of components, reducing maintenance costs.

V. Application Areas

The 3DREE10P-73/100YG24K31F1V proportional pressure reducing valve is widely used in the following fields:

• Injection Molding Machines: Used to control pressure during the injection molding process, ensuring product quality.

• Hydraulic Presses: Provides stable pressure output to meet various working requirements of hydraulic presses.

• Steel Mills: Used to control pressure during the rolling process, improving production efficiency and product quality.

• Machine Tools: Provides precise pressure control to ensure machining accuracy and stability of machine tools.
