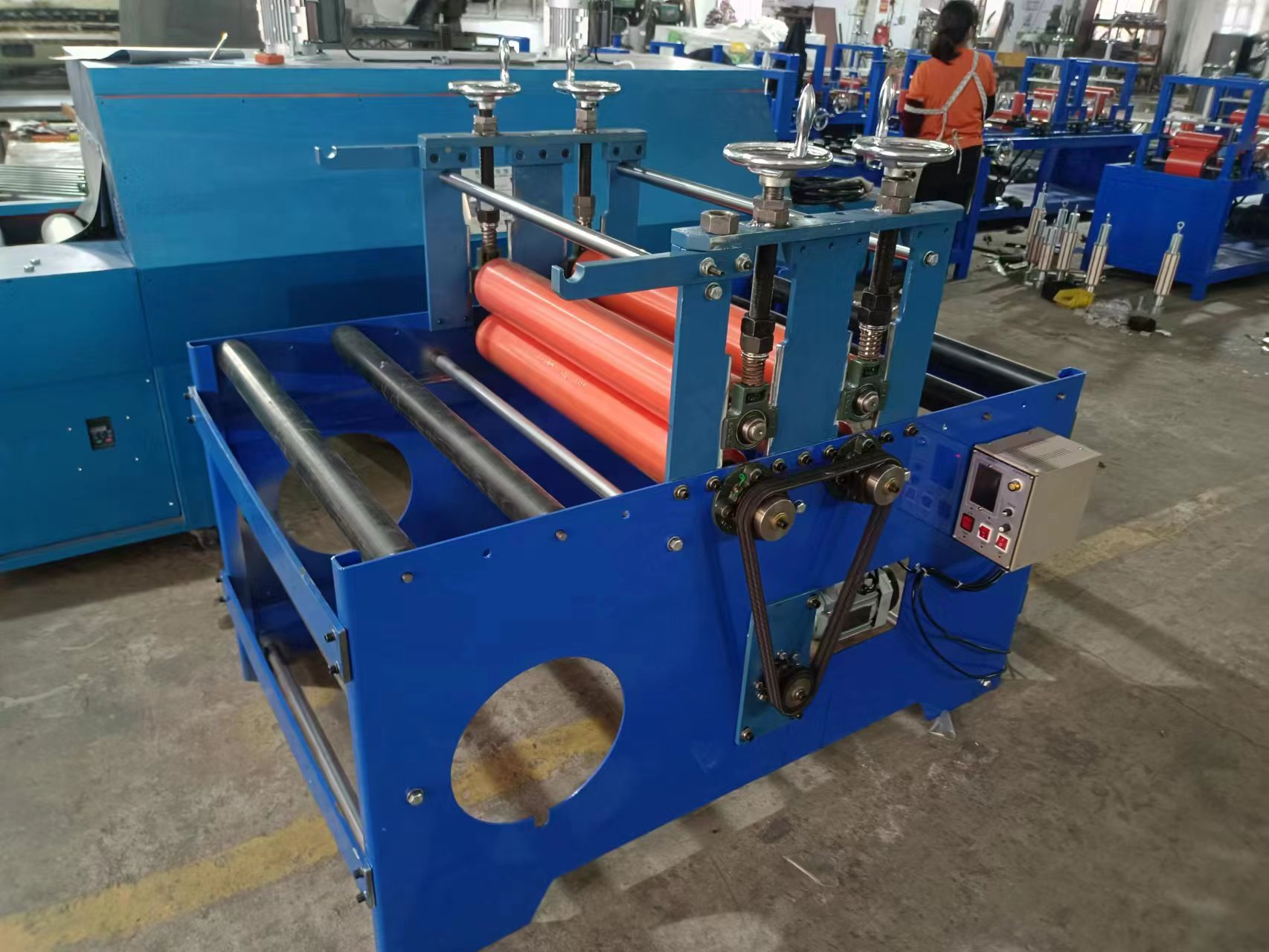

Protection Film Coating Machinery
5 month ago
- - High-Grade Rollers: Made of premium silicone and heat-conductive materials, with real-time temperature control, supporting both cold and hot lamination, short warm-up time.
- - Perfect Laminating Effect: Medium-hard rollers ensure bubble-free, wrinkle-free high-quality film application.
- - Stable Drive System: Equipped with high-efficiency speed control motors, pure copper coils, low heat generation for long continuous running.
- - Flexible Operation: Manual/automatic dual mode + forward/reverse function, easy to operate.
- - Wide Model Adaptation: Laminating width ranges from 250mm to 2000mm for diverse needs.
- Install protective film → Place workpiece on platform → Start the Film Printing Machine → Automatic precision film application (pneumatic roller pressure adjustment) → Automatic discharge via conveyor rack.
1. Maximum cold lamination width: 600 mm
2. Diameter of upper and lower main rubber rollers: 120 mm
3. Number of main rubber rollers: 2 polyurethane rollers; the upper pressure roller is a hard polyurethane roller (φ120 × 600 mm), and the lower pressure roller is a soft polyurethane roller (φ120 × 600 mm)
4. Laminating speed: Automatic or manual. Equipped with high-quality brand drive motors and a variable frequency drive (VFD) for speed control, ensuring stable laminating speed and improved laminating quality. The laminating speed range is approximately 0–30 m/min.
5. Dimensions (L×W×H, mm): 1550×910×1400; conveyor platform height: 790 mm; 4 machine feet adjustable up and down by ±20 mm
Power supply: 220V 50Hz; power: 0.55 kW
