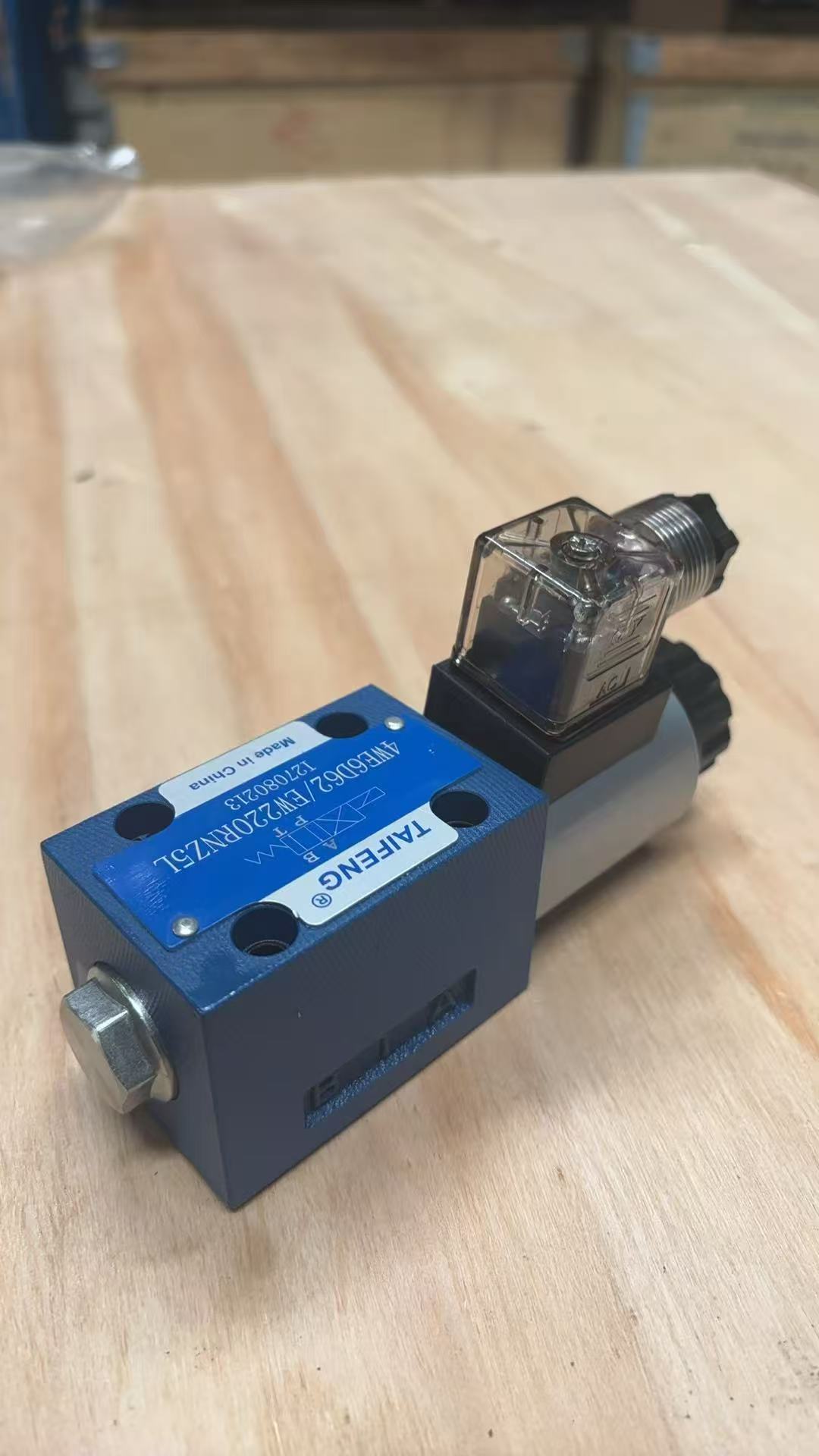

TAIFENG 4WE6D62/EW220RNZ5L Solenoid Directional Valve
5 month ago
Product details
1. Product Overview
The4WE6D62/EW220RNZ5L Solenoid Directional Valveis a high-performance hydraulic control component designed for precise directional control of fluid flow in hydraulic systems. It is widely used in industrial machinery, automation equipment, and hydraulic power units to manage the direction of oil or other hydraulic fluids.
2. Key Features
• Solenoid-Operated: Utilizes an electromagnetic solenoid to actuate the valve spool, enabling fast and reliable switching between flow paths.
• 4-Way, 3-Position Design: Provides multiple flow configurations (e.g., P→A/B, A/B→T, or all ports blocked) for versatile control of hydraulic actuators (cylinders, motors).
• High Pressure Rating: Designed to withstand high working pressures (typically up to 315 bar / 4568 psi, depending on configuration), making it suitable for demanding applications.
• Low Leakage: Precision-machined components ensure minimal internal leakage, improving system efficiency and reliability.
• Compact Design: Space-saving footprint allows for easy integration into hydraulic systems with limited space.
• Durable Construction: Made from high-quality materials (e.g., hardened steel spools, corrosion-resistant coatings) for long service life in harsh environments.
• Manual Override Option: Some variants may include a manual override function for emergency operation or testing purposes.
3. Technical Specifications
【表格】
Parameter Description
Model 4WE6D62/EW220RNZ5L
Valve Type Solenoid-Operated Directional Control Valve
Number of Ways 4-Way (P, A, B, T ports)
Number of Positions 3-Position (e.g., center-closed, center-pressure, or center-tank configurations)
Operating Pressure Up to 315 bar (4568 psi) (check manufacturer's datasheet for exact rating)
Flow Capacity Depends on orifice size and pressure drop (refer to flow curves in datasheet)
Solenoid Voltage 220V AC (EW220 in model code indicates 220V AC operation)
Port Size Typically G1/4, G3/8, or M22x1.5 (check datasheet for exact dimensions)
Mounting Subplate or manifold mounting (compatible with ISO 4401 standards)
Weight Approximately 1.5–3 kg (depending on configuration)
4. Applications
The4WE6D62/EW220RNZ5Lis commonly used in:
• Industrial Machinery: CNC machines, presses, injection molding machines.
• Material Handling: Forklifts, cranes, conveyor systems.
• Construction Equipment: Excavators, loaders, hydraulic hammers.
• Agricultural Machinery: Tractors, harvesters, sprayers.
• Automation Systems: Robotic arms, assembly lines, packaging equipment.
• Marine & Offshore: Winches, deck machinery, hydraulic power units.
5. Operating Principle
1. Energized State: When the solenoid is energized, it shifts the spool to one of the two working positions, directing fluid flow from the inlet (P) to either outlet (A or B) while the other outlet is connected to the tank (T).
2. De-energized State: When the solenoid is de-energized, a spring (or springs) returns the spool to the center position, which may block all ports (center-closed), connect P to T (center-tank), or connect P to both A and B (center-pressure), depending on the valve configuration.
6. Wiring & Electrical Connection
• The valve operates on220V AC(as indicated by "EW220" in the model code).
• Ensure proper grounding and compliance with electrical safety standards (e.g., IP65 protection for outdoor use).
• Use appropriate cable glands and connectors for secure electrical connections.
7. Maintenance & Troubleshooting
• Regular Inspection: Check for leaks, unusual noise, or erratic operation.
• Cleaning: Keep the valve and surrounding area free of contaminants to prevent spool sticking.
• Replacement: Replace seals or worn components as needed (refer to manufacturer’s guidelines).
• Common Issues:
• No Flow: Check solenoid coil, electrical connections, and spool movement.
• Slow Response: Inspect for low voltage, contaminated fluid, or worn spool/bore.
• Internal Leakage: Replace seals or check for scoring on the spool or bore.
8. Safety Precautions
• De-pressurize System: Before servicing, ensure the hydraulic system is depressurized.
• Use Proper Tools: Avoid damaging the valve during installation or removal.
• Follow Manufacturer Guidelines: Always refer to the official datasheet or installation manual for specific instructions.
9. Manufacturer & Certifications
• Brand: TAIFENG (or other manufacturer, depending on the actual supplier).
• Certifications: CE, ISO 9001, or other relevant industry standards (verify with supplier).
