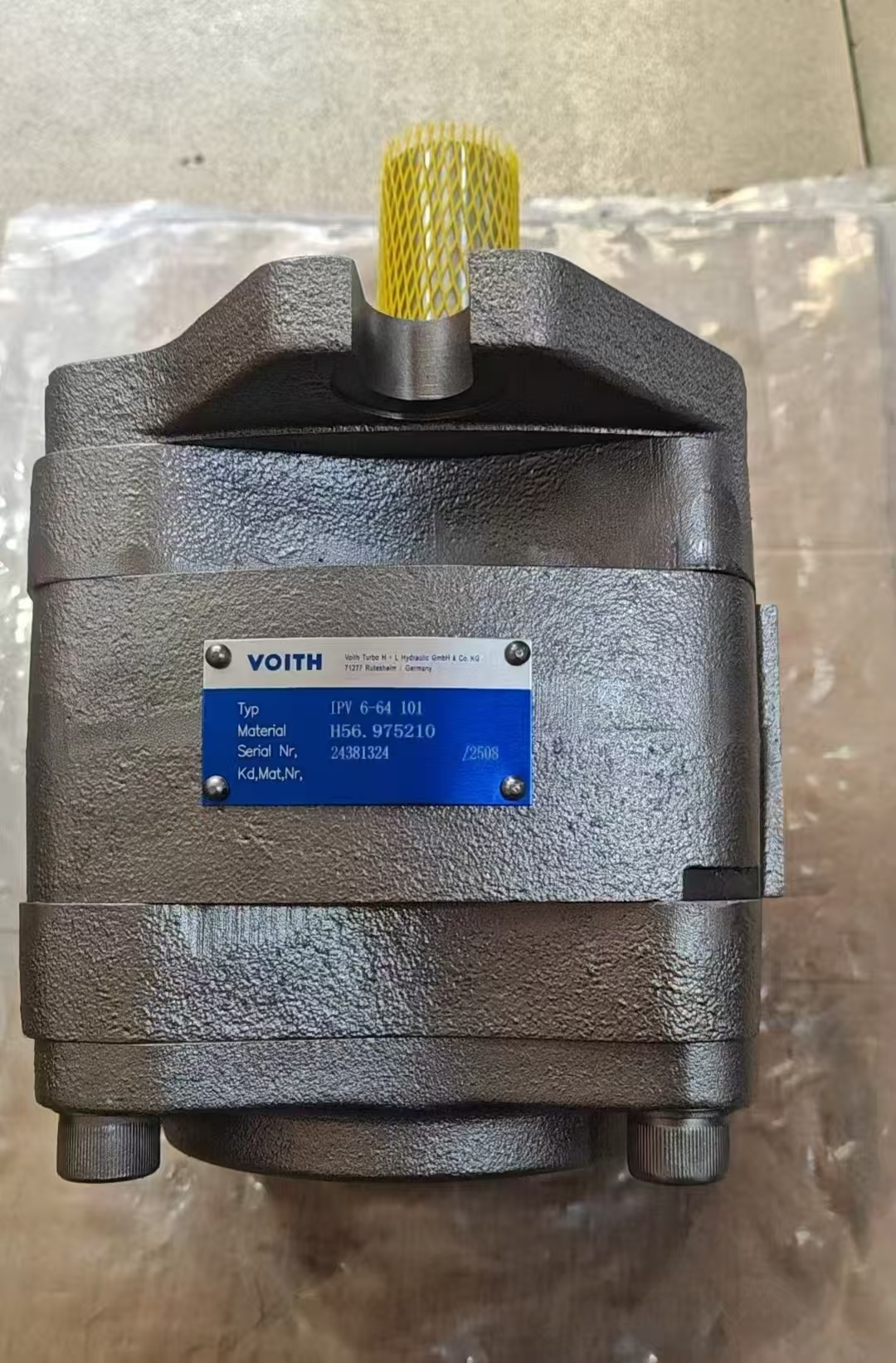

VOITH IPV 6-64-101 Hydraulic Gear Pump Detailed Introduction
I. Product Overview
The VOITH IPV 6-64-101 is a high-pressure internal gear pump manufactured by Voith GmbH (Germany), belonging to the IPV series. Utilizing advanced fourth-generation internal gear pump production technology, this series features high pressure, large displacement, low noise, and high efficiency. It is widely applied in injection molding machines, bending machines, punch presses, hydraulic equipment, lifting platforms, the maritime industry, as well as die-casting machines, baling machines, shearing machines, trenchless equipment, test benches, hydraulic presses, lifting equipment, and waste collection vehicles.
II. Technical Parameters
• Model: IPV 6-64-101
• Series: IPV Series
• Pressure Rating: Up to 350 bar
• Displacement Range: From 3.5 cc/rev to 250.3 cc/rev (specific displacement may vary by model)
• Structural Features: Internal gear pump with radial and lateral pressure compensation
• Noise Level: Below 66 dB (DIN 45635, Sheet 26 standard)
• Pressure Pulsation: Average pulsation below 2% (tested at 280 bar)
• Volumetric Efficiency: Over 93%
III. Product Characteristics
1. High Pressure and Large Displacement: Capable of meeting the demands of high-pressure, high-flow hydraulic systems.
2. Low Noise: Unique two-piece eccentric clearance design effectively reduces noise, suitable for quiet work environments.
3. Stable Pressure: Low pressure pulsation ensures smooth machine operation and extends service life.
4. High Efficiency: High volumetric efficiency minimizes energy loss and improves overall system efficiency.
5. Compact Structure: Compact design occupies minimal space, facilitating easy installation and maintenance.
6. Lightweight: Lighter than comparable products, facilitating easy handling and installation.
7. Simple Maintenance: Simple structure allows for easy disassembly and repair, reducing maintenance costs.
IV. Application Areas
The VOITH IPV 6-64-101 gear pump is widely used in the following fields:
• Injection Molding Machines: Provides stable hydraulic power for smooth injection processes.
• Bending Machines: Offers precise hydraulic control during metal sheet bending operations.
• Punch Presses: Supplies high-pressure hydraulic power for high-speed, precise punching tasks.
• Hydraulic Equipment: Serves as a reliable power source for various hydraulic systems.
• Lifting Platforms and Maritime Industry: Provides high-pressure, high-flow hydraulic power for lifting platforms and maritime hydraulic systems.
• Other Industrial Sectors: Such as die-casting machines, baling machines, shearing machines, trenchless equipment, test benches, hydraulic presses, lifting equipment, and waste collection vehicles.
V. Selection and Configuration
When selecting a model, it is essential to determine the appropriate type and configuration based on specific application scenarios and hydraulic system requirements. Factors to consider include the system's maximum operating pressure, required flow rate, operating temperature range, and hydraulic fluid type. Additionally, single, dual, or multi-pump combinations can be selected to meet different hydraulic system needs.
