Komatsu PW110 wheeled excavator

5 month ago

2 0 

4 year

Product details

I. Product Overview

• Model and Type: The Komatsu PC110 (including models like the PC110-7) is not typically classified as a specific model carrier for wheeled excavator swing motors; its specific swing motor model depends on the equipment configuration. However, the technical characteristics of the PC series can provide insights into its swing mechanism features. The PC110-7, in particular, is a representative 11-ton crawler hydraulic excavator model. Although the question mentions "wheeled excavator," the PC110 series is predominantly crawler-based, yet its technical features offer valuable references for understanding swing motors.

• Application Areas: This series of excavators is widely used in municipal construction, farmland renovation, mining, and other fields, praised for their efficiency, stability, and durability.

II. Technical Features Related to Swing Motors (Based on the PC Series)

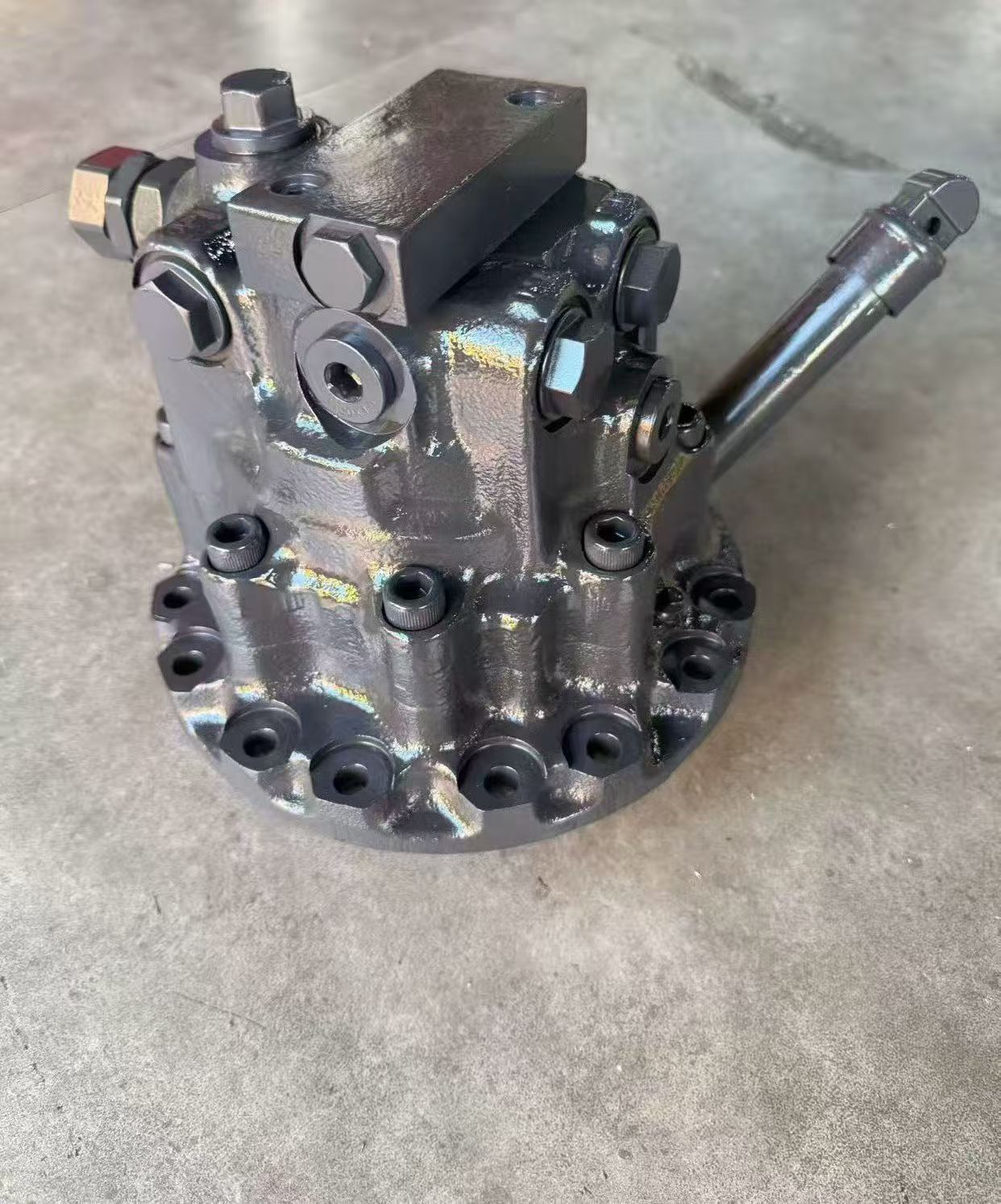

• Swing Mechanism Composition: The swing mechanism typically consists of a swing motor and a swing reduction gear. The swing motor is a swashplate-type axial piston motor (though other types may be used in some models), equipped with an integrated swing stop brake.

• Swing Motor Functions:

• Driving Swing: The swing motor is driven by pressurized oil and, in turn, drives the swing reduction gear, converting the motor's output into low-speed, high-torque rotation to drive the upper swing platform.

• Preventing Cavitation and Overload: The valve components in the motor prevent cavitation in the swing oil circuit and protect the circuit from overloading.

• Make-up Oil Function: When the swing operation stops, the upper swing platform continues to rotate a certain angle under inertial force, causing the motor to operate in a "pump" mode. To prevent cavitation in the suction oil circuit, the motor is equipped with check valves that provide make-up oil from the make-up oil circuit.

• Swing Reduction Gear: The swing reduction gear converts the output of the swing motor into low-speed, high-torque rotation to meet the needs of excavator swing operations.

III. Other Features of the PC110 Series Excavators

• Power System: Equipped with a SAA4D95LE-3 turbocharged engine (taking the PC110-7 as an example), providing robust power output.

• Hydraulic System: Utilizes a pressure-compensated CLSS hydraulic system, achieving a balance between fine operation and efficient work.

• Structural Design: Compact design with a small minimum swing radius, suitable for operation in confined spaces. Additionally, the robust body and higher reliability ensure long-term stable construction.

• Maintenance Convenience: Optimized maintenance design, such as remote oil filter layout, machine condition monitoring functions, and oil circuit filtration protection systems, reduces maintenance complexity.
